INJ30AT

NEW
Hardened Gigabit PoE Injector
Fanless
PoE 15W
PoE 30W
Available in North America only
Provides PoE functionality to a Non-PoE Network
Backwards Compatible with 802.3af Devices
Up to 30W output
Downloads
DatasheetQIG
Inquiry

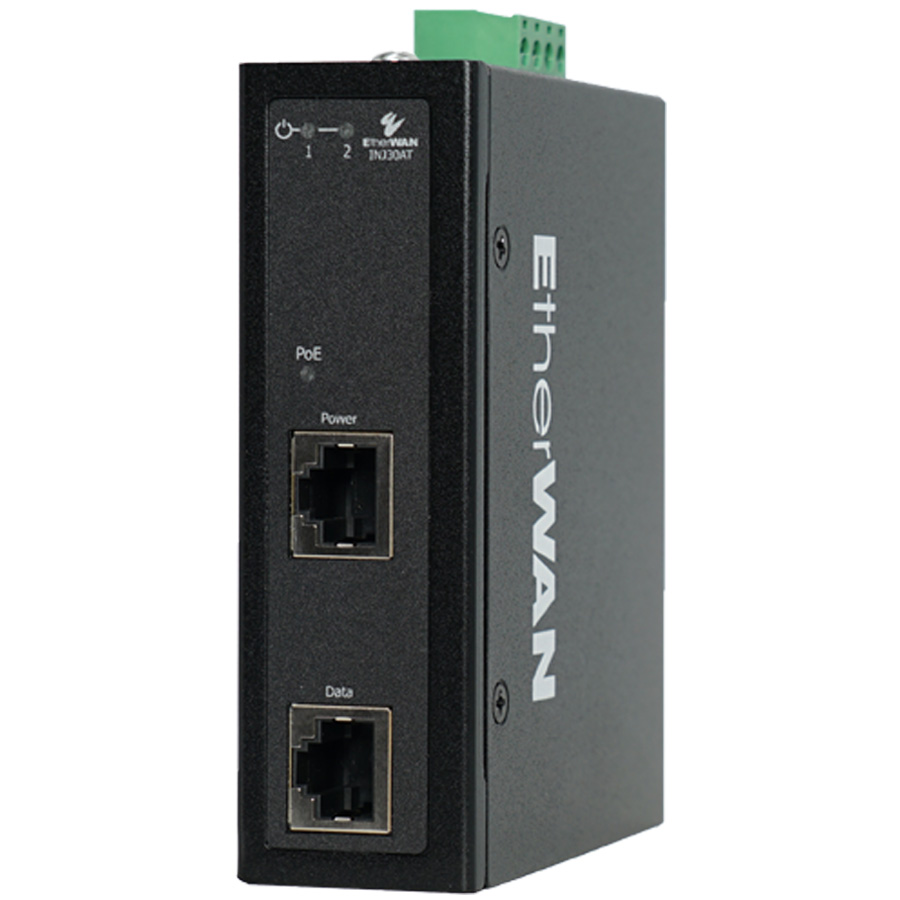

EtherWAN’s INJ30AT is a compact hardened DIN-rail mounted PoE injector. Providing up to 30W power output, the INJ30AT provides the solution required to integrate remote PoE devices such as IP cameras and other network devices into non-PoE networks for reliable operation even in harsh environments.

EtherWAN — "When Connectivity is Crucial."

High-Power PoE (Power over Ethernet)

  • Provides PoE functionality to a non-PoE network
  • Up to 30W output for various security applications such as PTZ cameras
  • Backward compatible with 802.3af devices

Hardened-Grade for Non-Ventilated & Harsh Environments

  • Wide operating temperature range -40 to 75°C (-40 to 167°F)
  • Fanless operation
  • High impact, thermal shock, and electrical noise resistance

Support

  • Complimentary Technical Support
  • In-person training and free online training courses available
  • Limited Lifetime Warranty

Interface

  • Ethernet
    • 1 x 10/100/1000BASE-T(X), connection to network
    • 1 x 10/100/1000BASE-T(X), PoE connection to device

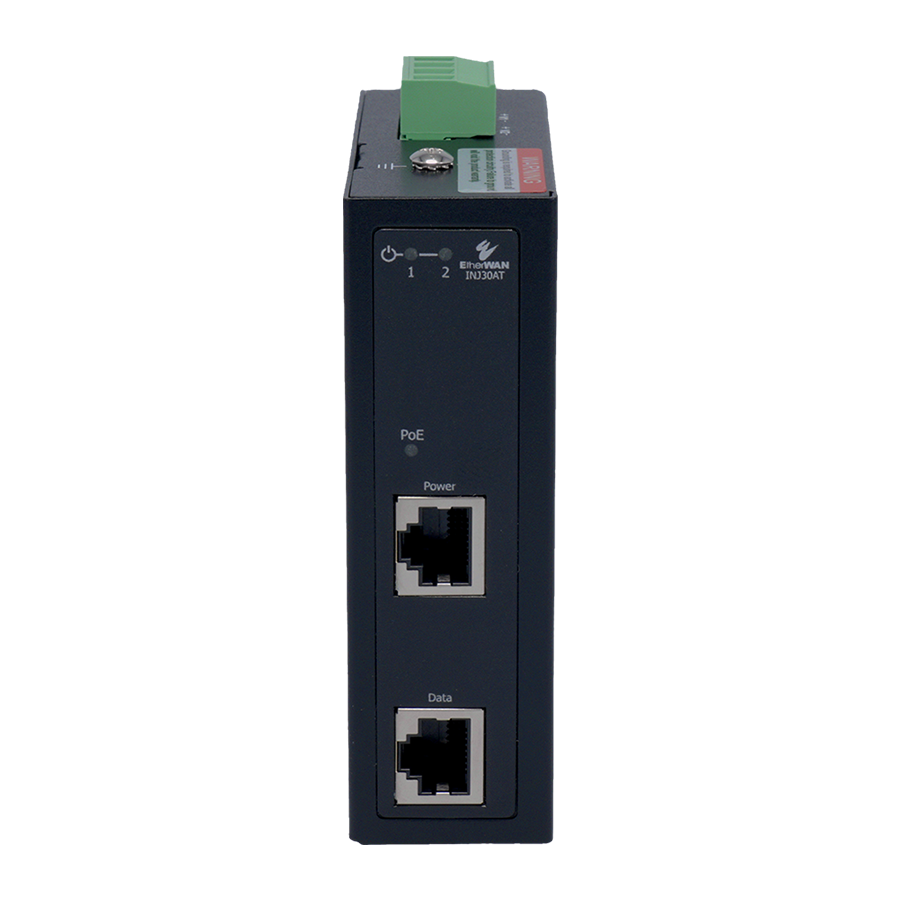

  • LED Indicators
    • Power detected: Power 1, Power 2
    • PoE: On (Active), Off (Idle)

Technology

  • Standards
    • IEEE 802.3 10BASE-T
    • IEEE 802.3u 100BASE-TX/100BASE-FX
    • IEEE 802.3ab 1000BASE-T
    • IEEE 802.3af PoE
    • IEEE 802.3at PoE+

Power

  • Input

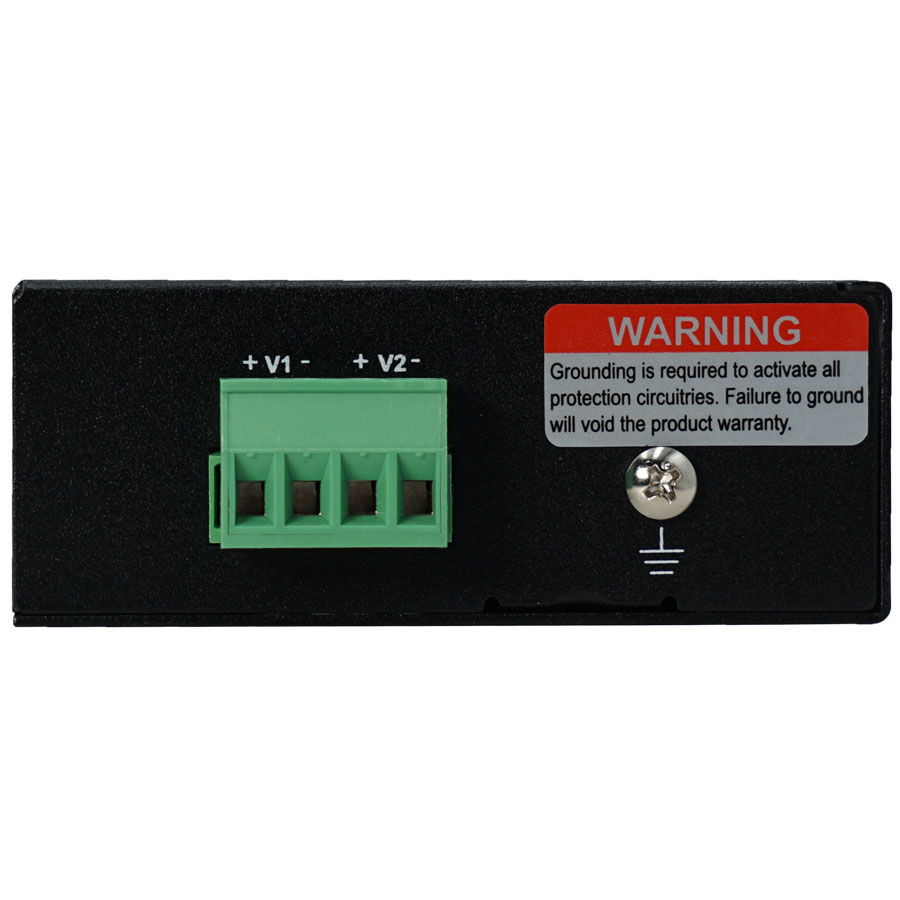

    • 24-56VDC Redundant (Terminal block)
  • Power Consumption
    • 1W max @ 48VDC, without PoE
  • PoE Power Output
    • 30W @ 56VDC input
  • Protection
    • Reverse Polarity Protection
    • Current Overload Protection

Physical

  • Casing Material
    • Aluminum
  • IP Rating
    • IP30
  • Dimensions
    • 1.26" x 3.21" x 4.07"(W x D x H)
      32 x 81.5 x 103.5mm
  • Weight
    • 1.5lbs (0.68kg)
  • Installation Type

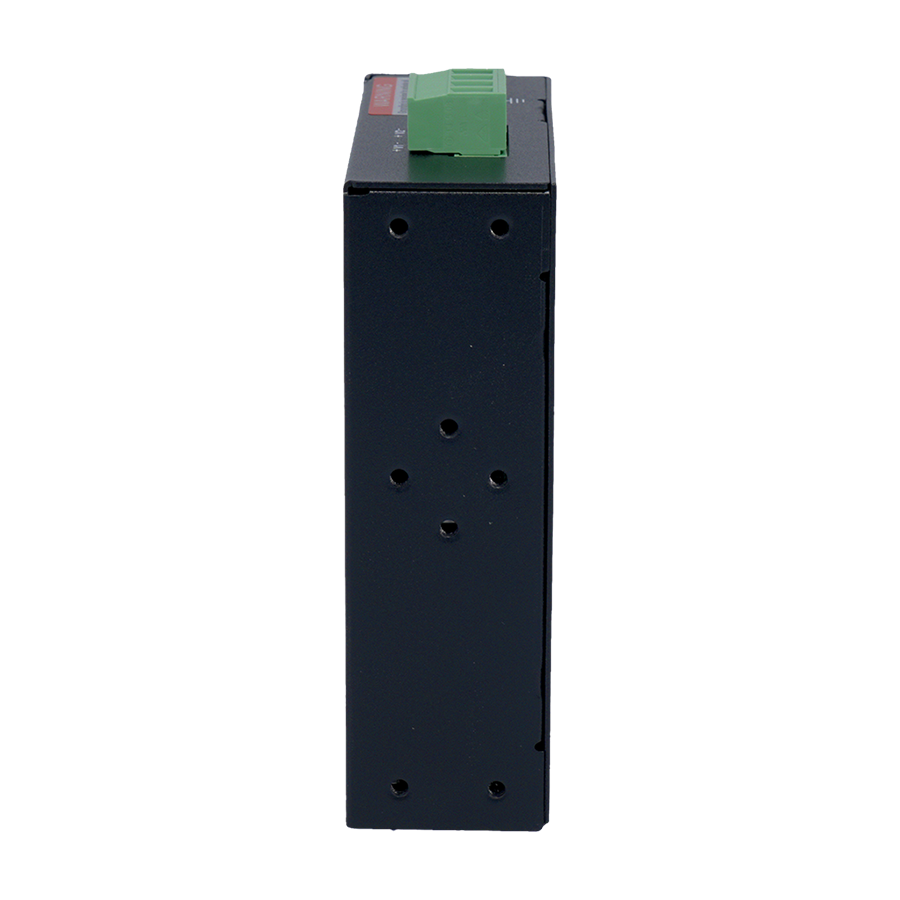

    • DIN-rail or wall mounting

Environmental

  • Operating Temp.
    • -40 to 167°F (-40 to 75°C)
  • Storage Temp.
    • -49 to 185°F (-40 to 85°C)
  • Relative Humidity
    • 5% to 95% (non-condensing)
  • MTBF
    • >500,000 hours@50°C

Regulatory

  • ISO
    • Manufactured in ISO-9001 facility
  • EMI
    • FCC Part 15B Class A
    • EN 55032
    • EN 55024
  • EMS
    • EN 61000-4-2 (ESD)
    • EN 61000-4-4 (Burst)
    • EN 61000-4-5 (Surge)
  • Safety
    • UL 60950-1
  • Vibration
    • IEC 60068-2-6
  • Shock
    • IEC 60068-2-27
  • Free Fall
    • EN 60068-2-32

Warranty

What's Included

  • Device
    • Injector
  • Installation
    • Mounting brackets, screws, 4-pin terminal block
  • Documentation
    • Quick install guide

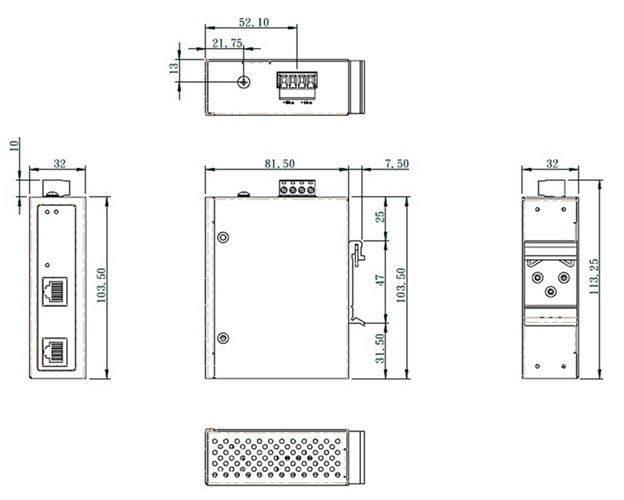

INJ30AT Dimensions



Model

INJ30AT10/100/1000BASE-T PoE Injector, 30W 802.3at

Accessories

DIN-Rail Power Supplieswww.etherwan.com/products/din-rail-power-supply
