EXT1100

NEW

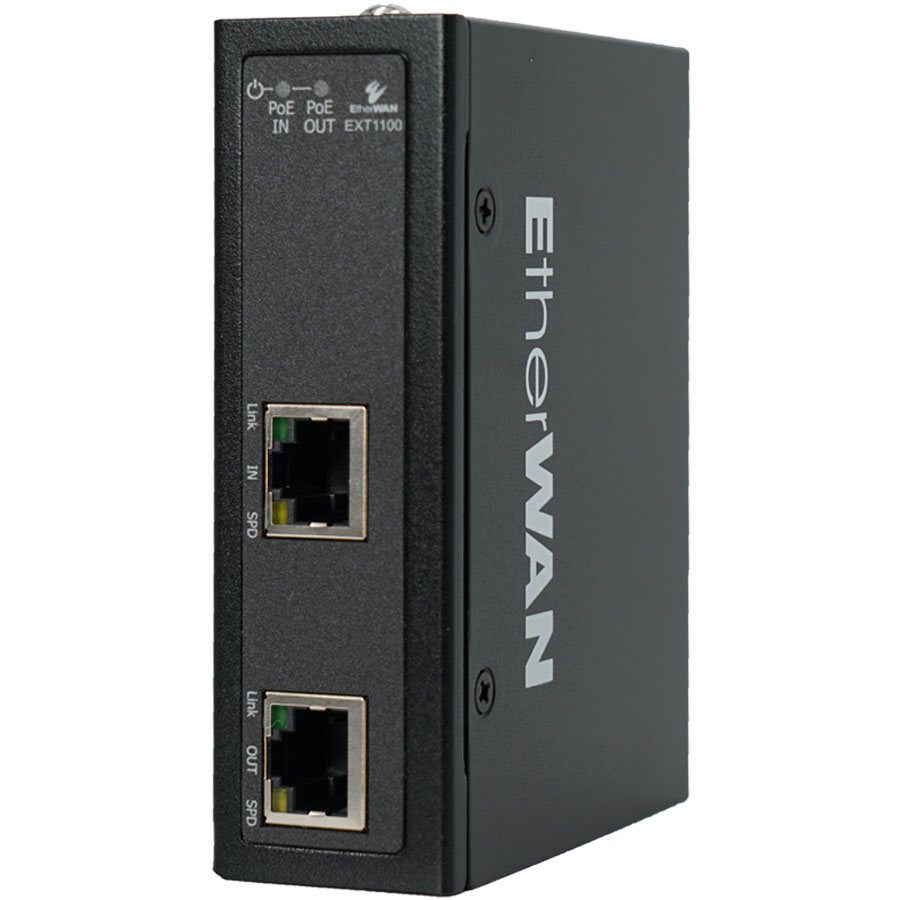

Hardened Gigabit PoE Extender
PoE 15W
PoE 30W
PoE_60W
Fanless
Available in North America Only
Provides PoE extension functionality for ethernet applications that require distances longer than 100m (328ft)
Up to 60W output for various security applications such as PTZ cameras
Can be daisy-chained up to 4 units
Downloads
DatasheetQIG
Inquiry

EtherWAN’s EXT1100 is a compact hardened DIN-rail mounted PoE Extender. Requiring no external power, the EXT1100 provides a simple and cost-effective method of extending a PoE connection beyond the standard 100 meter limit for copper Ethernet cabling.


EtherWAN — "When Connectivity is Crucial."

PoE (Power over Ethernet)

  • Provides PoE extension functionality for ethernet applications that require distances longer than 100m (328ft)
  • Up to 60W output for various security applications such as PTZ cameras
  • Can be daisy-chained up to 4 units

Hardened-Grade for Non-Ventilated & Harsh Environments

  • Wide operating temperature range -40 to 75°C (-40 to 167°F)
  • Fanless operation
  • High impact, thermal shock, and electrical noise resistance

Support

  • Complimentary technical support
  • Free firmware upgrades and notifications
  • Limited lifetime warranty

Interface

  • LED Indicators

Technology

  • Standards
    • IEEE 802.3 10BASE-T
    • IEEE 802.3u 100BASE-TX
    • IEEE 802.3ab 1000BASE-T
    • IEEE 802.3x Flow Control and Back Pressure
    • IEEE 802.3af PoE
    • IEEE 802.3at PoE+
    • IEEE 802.3ab 1000BASE-T
  • Forward Filtering Rate
    • 14,800pps for 10Mbps
    • 148,810pps for 100Mbps
    • 1,488,100pps for 1000Mbps
  • Processing Type
    • Store-and-forward
    • Auto-negotiation
    • Half-duplex back-pressure and full-duplex flow control
    • Auto MDI/MDIX

Switch Properties and Performance

  • Switching Fabric
    • 4Gbps
  • Jumbo Frame Size
    • 9KB
  • MAC Table Size
    • 2K
  • Packet Buffer Memory
    • 1Mb
    •

Power

  • PoE Power Input
    • 15W/30W/60W/95W
  • Power Consumption
    • 2.7W without PoE load
  • PoE Power Output
    • 15W/30W/60W

Physical

  • Casing
    • Aluminum case
    •
    • IP Rating
    • IP30
    •
    • Dimensions
      • 1.26" x 3.21" x 4.07" (W x D x H)
      • 32 x 81.5 x 103.5MM
      •
      • Weight
      • 0.3Ibs (.14kg)
      •
      • Installation
      • DIN-rail or wall mout

Environment

  • Operating Temperature
    • -40 to 75°C (-40 to 167°F)
  • Storage Temperature
    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity
    • 5% to 95% (non-condensing)
  • MTBF
    • >500,000 hours @ 50°C

Regulatory Approvals

  • ISO
    • Manufactured in an ISO 9001 facility
  • Safety
    • UL 60950-1
    • IEC 60950-1
  • EMI
    • FCC Part 15B Class A
    • EN 55032
    • EN 55024
  • EMI
    • EN61000-4-2 (ESD Standards)
    • EN61000-4-2 (Burst Standards)
    • EN61000-4-2 (Surge Standards)
  • Environmental Test Compliance
    • IEC 60068-2-6 Fc (Vibration)
    • IEC 60068-2-27 Ea (Shock)
    • IEC 60068-2-32 Ed (Free fall w/package)

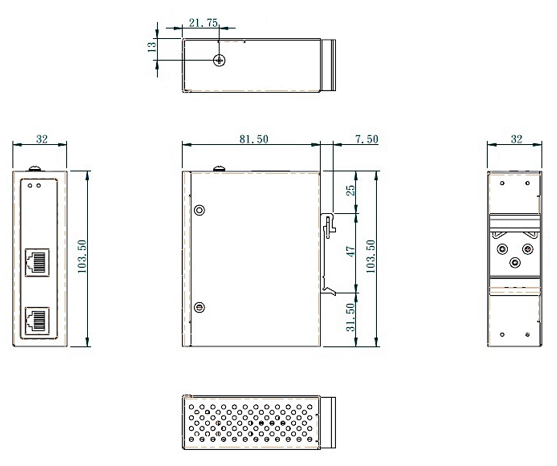

EXT11000 Dimensions

Model

EXT1100Hardened Gigabit PoE Extender
