EX33000 Series

Industrial Grade

• • Supports -10°C to 60°C (14°F to 140°F) operating temperature

Versatile mounting Options

• • Supports DIN-Rail, panel and rack mounting

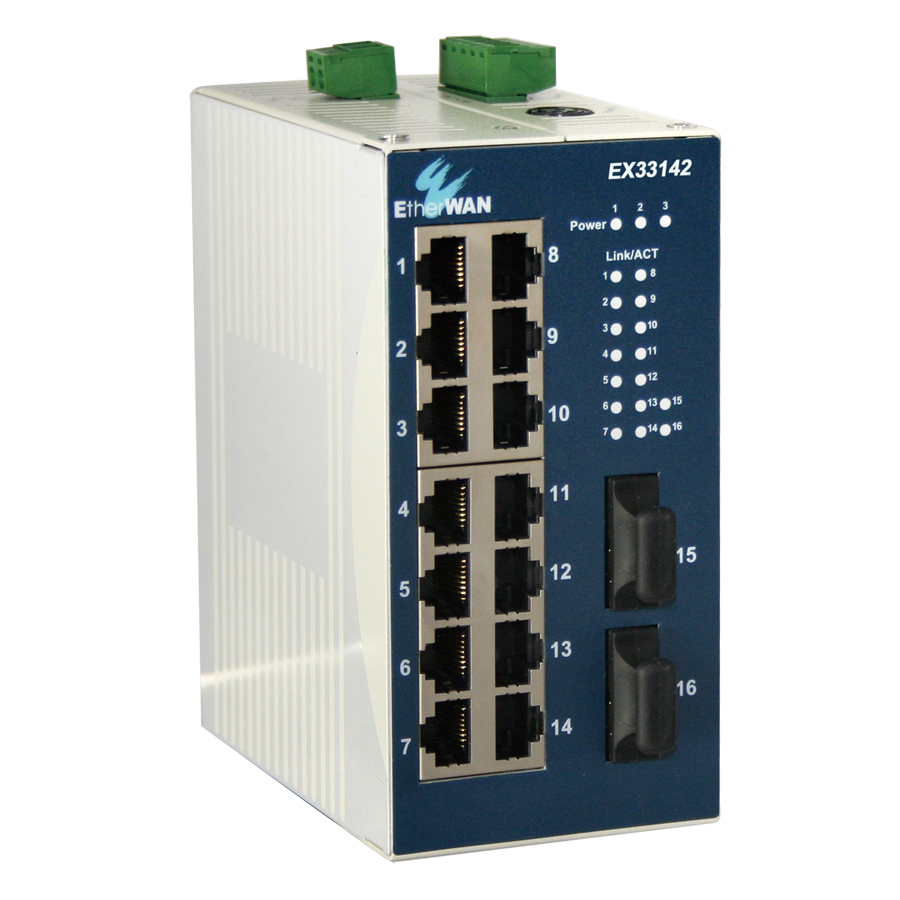

Fiber Connectivity

• • Up to two 100BASE-FX ports with SC, ST and WDM options

Technology

• Standards
  • IEEE 802.3, 10BASE-T
  • IEEE 802.3u 100BASE-TX/100BASE-FX
  • IEEE 802.3x Full duplex and flow control
• Forward/Filtering Rate
  • 14,880pps for 10Mbps
  • 148,810pps for 100Mbps
• Packet Buffer Memory
  • 1.625M bits
• Processing Type
  • Store-and-Forward
  • Auto Negotiation
  • Half-duplex back-pressure and IEEE 802.3x full-duplex flow control
  • Auto MDI/MDIX
• Address Table Size
  • 4096 MAC addresses
• Latency
  • Less than 10μs

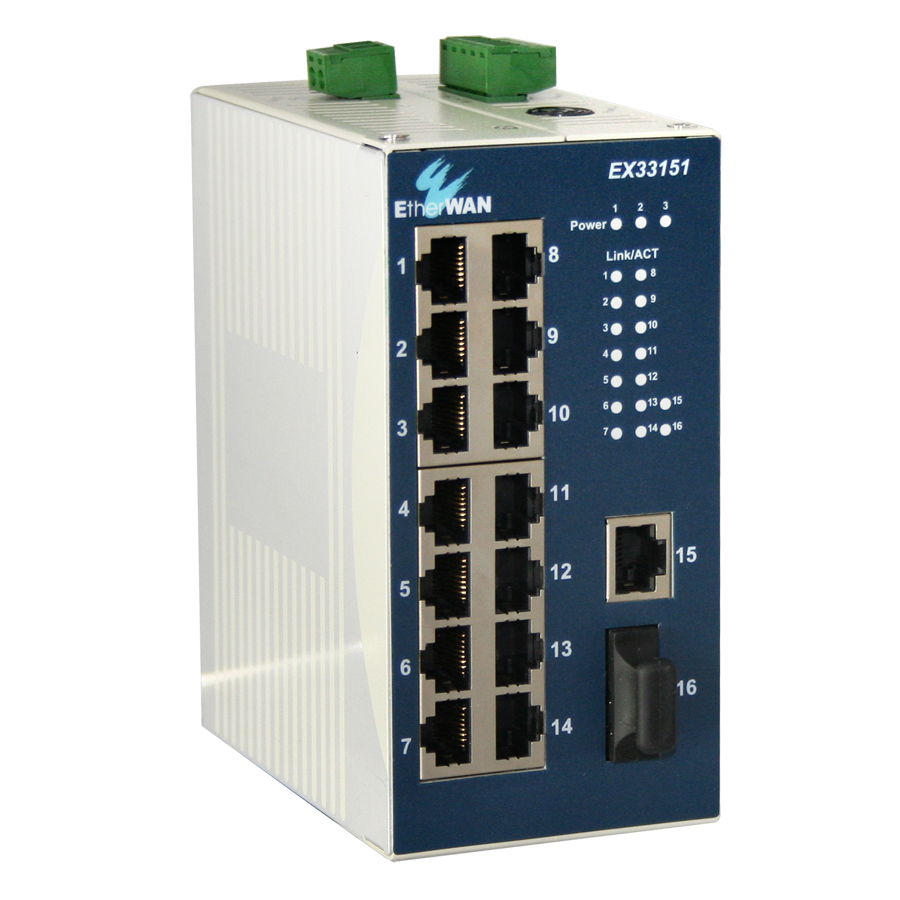

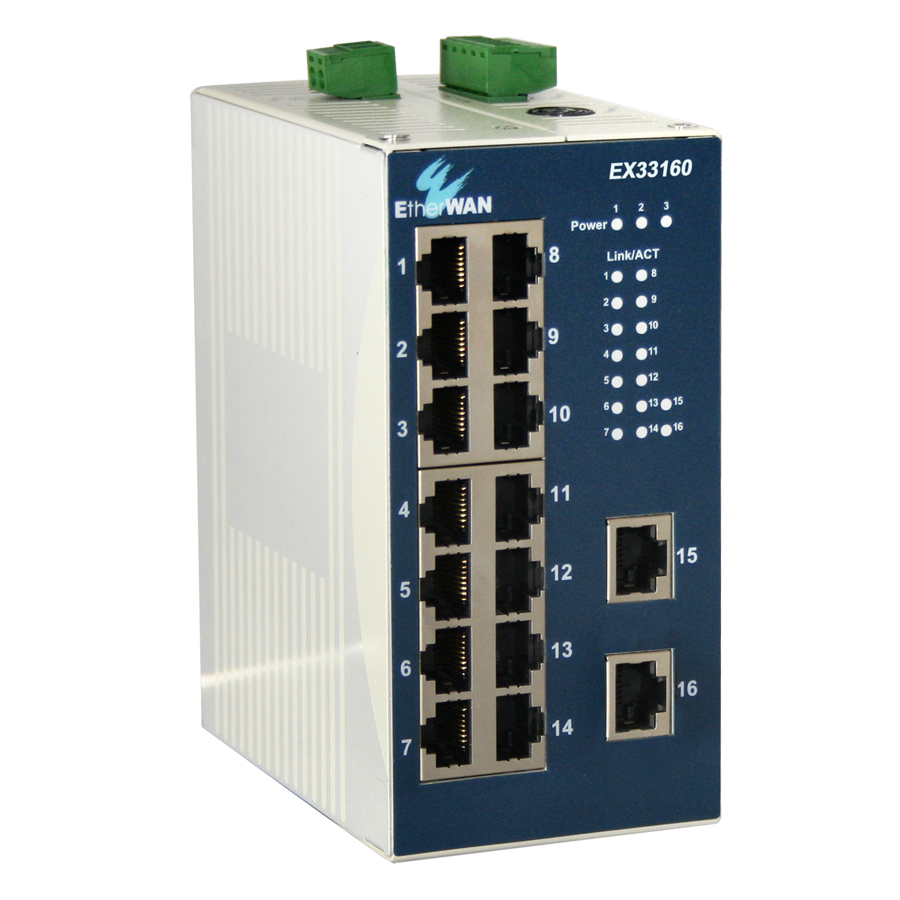

Interface

• Ethernet Ports
  • 10/100BASE-TX: 16, 15 or 14 ports
  • 100BASE-FX: 0, 1 or 2 ports
• LED Indicators
  • Per Unit: Power 1 (Green), Power 2 (Green), Power 3 (Green)
  • Per Port: Link/Act
• Alarm Contact
  • One relay output with current 1A@24VDC

Environment

• Operating Temperature
  • -10 to 60°C (14 to 140°F)
    Tested @ -20 to 70°C (-4 to 158°F)
• Storage Temperature
  • -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity
  • 5% to 95% (non-condensing)

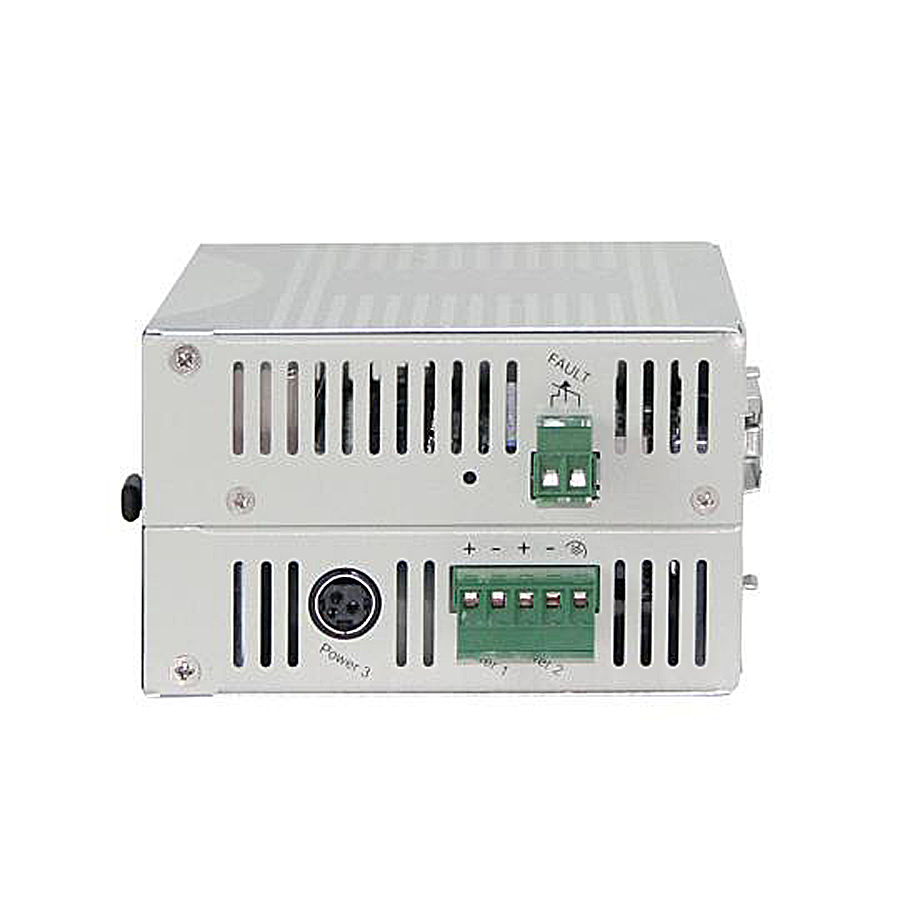

Power

• Input
  • Redundant power inputs:
    12 to 48VDC (Terminal Block),
    12VDC (DC Jack)
• Power Consumption
  • 7.4W Max. 0.6A@12VDC, 0.3A@24VDC, 0.15A@48VDC

Mechanical

• Casing
  • Aluminum Case
• IP Rating
  • IP30

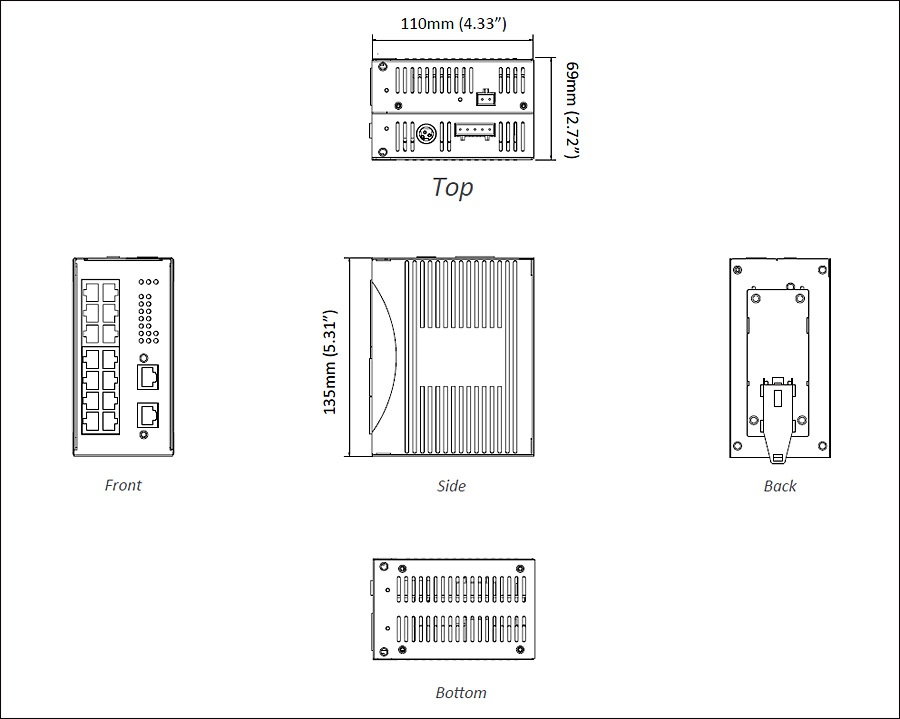

• Dimensions
  • 69 x 110 x 135mm (W x D x H) (2.72" x 4.33" x 5.31")
• Weight
  • 0.87Kg (1.92lbs.)

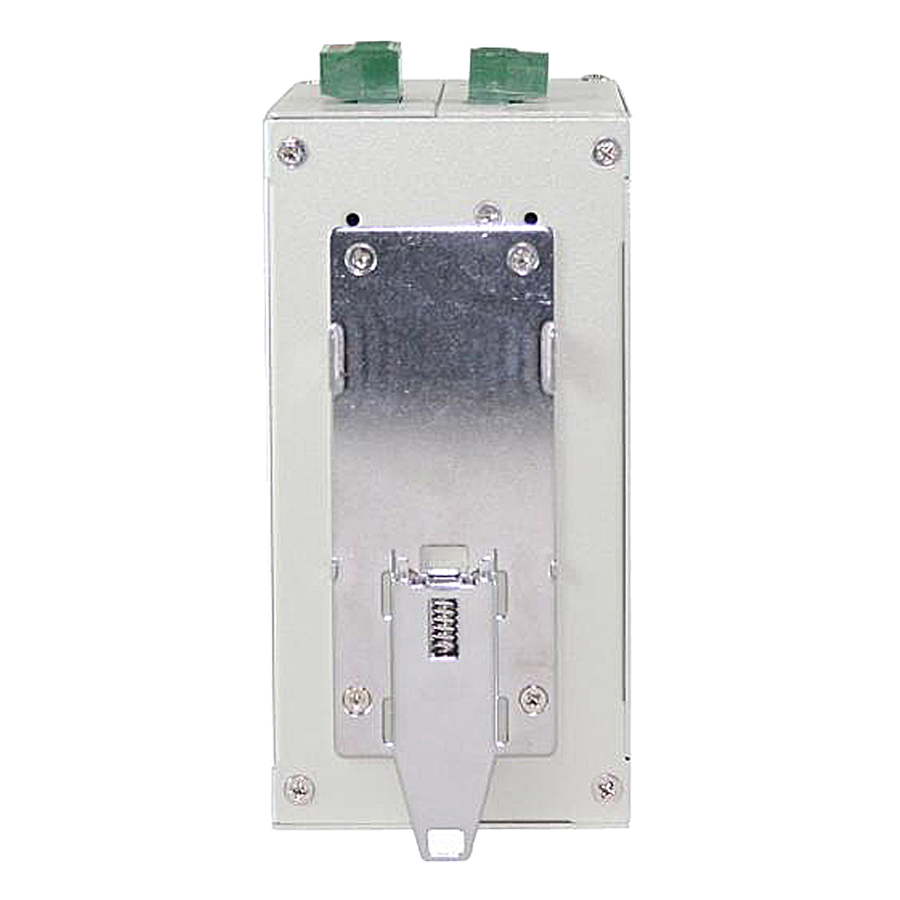

• Installation
  • DIN-Rail (Top hat type 35mm), Panel, or Rack mounting

Regulatory Approvals

• ISO
  • Manufactured in ISO-9001 facility
• EMI
  • FCC Part 15B Class A
  • VCCI Class A
  • EN 61000-6-4
  • EN 55022
  • EN 61000-3-2
  • EN 61000-3-3
• EMS
  • EN 61000-6-2
    • - EN 61000-4-2 (ESD)
    • - EN 61000-4-3 (Radiated RFI)
    • - EN 61000-4-4 (Burst)
    • - EN 61000-4-5 (Surge)
    • - EN 61000-4-6 (Induced RFI)
    • - EN 61000-4-8 (Magnetic field)
• Safety
  • UL 508
• Environmental Test Compliance
  • IEC 60068-2-6 Fc (Vibration)
  • IEC 60068-2-27 Ea (Shock)
  • FED STD 101C Method 5007.1 (Free fall w/package)
