EX19244

Smart Managed 24-Port Gigabit PoE Ethernet Switch
PoE 15W
PoE 30W
SFP
Only Available in North America
Downloads
DatasheetQIGManuals
Inquiry

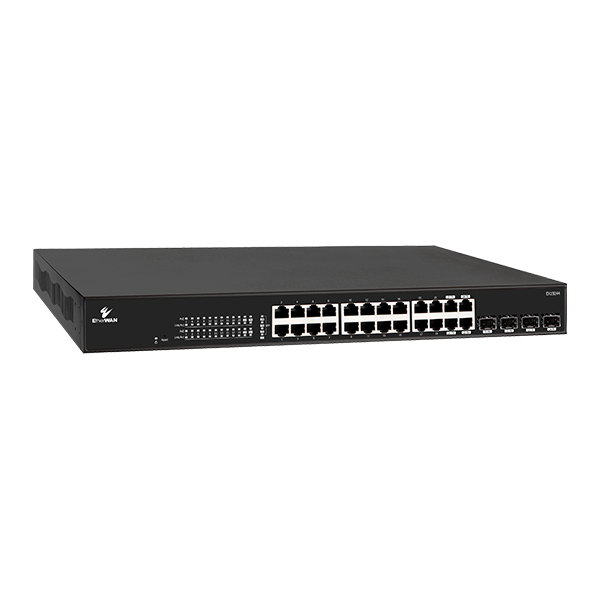

EtherWAN's EX19244 is a 24-port Gigabit Power over Ethernet switch with high performance and features suited for small-business and commercial environments. The EX19244 is equipped with 24 10/100/1000BASET( X) PoE+ ports with 4 being combo ports with 100/1000BASE SFP for fiber. With features such as an easy-touse management GUI, QoS, VLANs and full wire speed throughput, port speeds up to gigabit for 4K cameras and higher, and a power budget of 460W, the EX19244 is the perfect solution for security networks.

EtherWAN — "When Connectivity is Crucial."

Smart Management Features

  • Easy to use web GUI
  • VLAN configuration
  • Comprehensive IP configuration and QoS

Power over Ethernet

  • Total PoE power budget of 460W to deliver sufficient power to all connected PoE devices
  • Overloading protection
  • Power and data over a single cable with gigabit speed capable of handling cameras with 4K resolution and higher and other high bandwidth devices

Interface

  • Web GUI

Management

  • Firmware upgrade
  • Configuration backup and restore
  • DHCP Client
  • SNMP Trap
  • Port Mirroring
  • >LLDP (Link Layer Discovery Protocol)

Security

  • MAC address filtering
  • Enable/Disable PoE per port
  • Storm control
  • TCP/UDP filter
  • Initial login complex password setup requirement

Quality of Service (QoS)

  • Priority Queues: 8 queues per port
  • Traffic classification based on IEEE 802.1p CoS (Cost of Service), DSCP (Differentiated Services Code Point), WRR(Weighted Round Robin)

Layer 2 Features

  • Auto-negotiation for port speed and duplex mode
    • Flow Control
    • IEEE 802.3x full duplex mode
    • Back-pressure half duplex mode
  • VLANs
    • 16 Groups, 4096 VID
    • Tag-based
    • Port-based
  • Link Aggregation
    • Static Trunk (2 groups)
  • IGMP Snooping
    • IGMP Snooping v1/v2

Software Properties and Performance

  • Switching Fabric
    • 20Gbps
  • Forwarding Rate
    • 14.88Mpps
  • Jumbo Frame
    • 9.6KB
  • MAC Table Size
    • 8K
  • Packet Buffer Memory
    • 4Mb

Interface

  • Ethernet
    • 10/100/1000BASE-T(X): 24 ports
    • 100/1000BASE SFP: 4 ports (combo with ports 21-24
  • LED Indicators
    • Per Unit: Power
    • Per Port PoE: Status
    • Per Port Link: Link/Activity
  • Reset Button
    • Restore factory default settings

Technology

  • Standards
    • IEEE 802.3 10BASE-T
    • IEEE 802.3u 100BASE-TX
    • IEEE 802.3ab 1000BASE-T
    • IEEE 802.3z 1000BASE-SX/1000BASE-LX
    • IEEE 802.3x Full duplex and flow control
    • IEEE 802.1p QoS
    • IEEE 802.1Q Tag VLANS
    • IEEE 802.3af Power over Ethernet (PoE)
    • IEEE 802.3at Power over Ethernet (PoE+)
    • IEEE 802.1AB LLDP (Link Layer Discovery Protocol)
    • IEEE 802.3az EEE (Energy Efficient Ethernet)
  • Forward and Filtering Rate
    • 14,880pps for 10Mbps
    • 148,880pps for 100Mbps
    • 1,488,000pps for 1000Mbps
  • Processing Type
    • Store-and-Forward
    • Auto-Negotiation
    • Half-duplex back-pressure full-duplex flow control
    • Auto MDI/MDIX

Physical

  • Casing Material
    • Metal

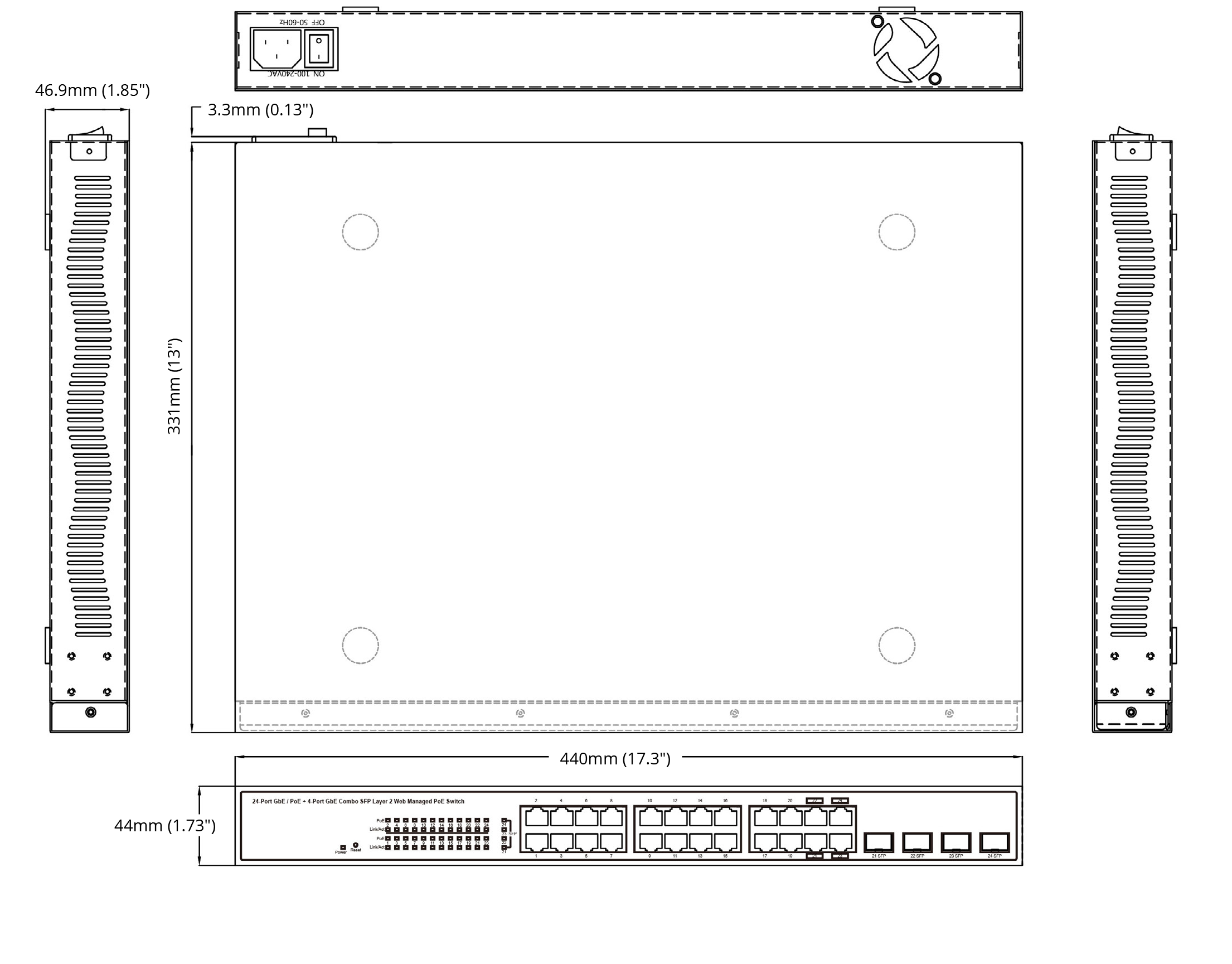

  • Dimensions
    • 440 x 331 x 44mm (W x D x H)
    • 17.3" x 13" x 1.73"
  • Weight
    • 9.75lbs (4.4kg)
  • Installation Type
    • Rack mounting

Power

  • Input
    • 100-240VAC, 50/60Hz
  • Power Consumption
    • Device: 30W (without PoE)PoE
    • Power Budget: 460W

Environmental

  • Operating Temp.
    • 0 to 50°C (32 to 122°F)
  • Storage Temp.
    • -10 to 80°C (14 to 158°F)
  • Relative Humidity
    • 10% to 90% (non-condensing)

Regulatory

  • ISO
    • Manufactured in ISO-9001 facility
  • EMI
    • FCC Part 15 Class B

Warranty

  • Length
    • 3 Years
  • Details
    • www.etherwan.com/support/warrantypolicy

What's Included

  • Device
    • Ethernet Switch
  • Power
    • AC power cord
  • Installation
    • Mounting brackets, screws
  • Documentation
    • Quick Install Guide

Model

EX1924424-port 10/100/1000BASE-T(X) PoE (4-port 100/1000 SFP combo)

* Rack mounting kit included.
