EX19162

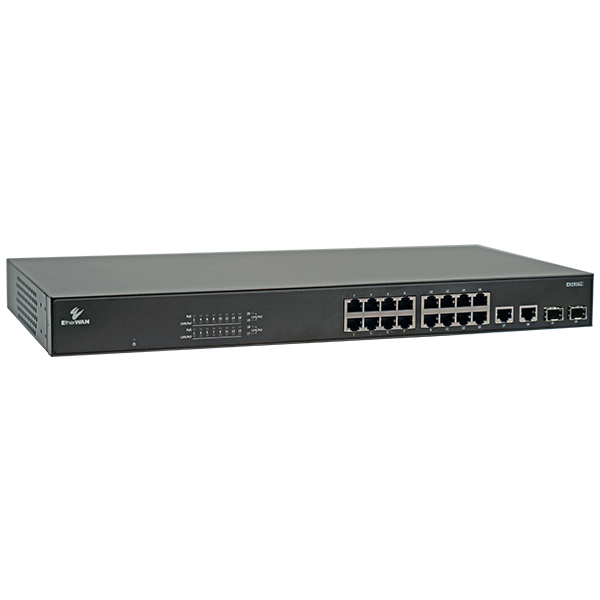

Smart Managed 16-Port Gigabit PoE Ethernet Switch with 2-Port SFP and 2-Port RJ45
PoE 15W
PoE 30W
SFP
Only Available in North America
250W PoE Power Budget
Overloading Protection
Gigabit speeds capable of handling 4k cameras & other high bandwidth devices
Related Products
Commercial PoE Switches
(3)
Downloads
DatasheetQIG
Inquiry

EtherWAN's EX19162 is a 20-port Gigabit Power over Ethernet switch with high performance and features suited for small-business and commercial environments. The EX19162 is equipped with 16 10/100/1000BASE-T(X) PoE+ ports along with 4 gigabit uplink ports (2 RJ45 and 2 SFP). With full wire speed throughput, port speeds up to gigabit for 4K cameras and higher, and a power budget of 250W, the EX19162 is the perfect solution for security networking.

Power Over Ethernet

  • Total PoE power budget of 250W to deliver sufficient power to all connected PoE devices
  • Overloading protection
  • Power and data over a single cable with gigabit speed capable of handling cameras with 4K resolution and higher and other high bandwidth devices


Interface

  • Ethernet
    • 10/100/1000BASE-T(X): 18 ports
    • 10/100/1000BASE-T(X): 18 ports
  • LED Indicators
    • Per Unit: Power
    • Per Port PoE: Status
    • Per Port Link: Link/Activity
  • Reset Button
    • Restore factory default settings

Technology

  • Standards
    • IEEE 802.3 10BASE-T
    • IEEE 802.3u 100BASE-TX/100BASE-FX
    • IEEE 802.3ab 1000BASE-T
    • IEEE 802.3z 1000BASE-SX/1000BASE-LX
    • IEEE 802.3x full duplex and flow control
    • IEEE 802.3af Power over Ethernet
    • IEEE 802.3at Power over Ethernet (PoE+)
  • Switching Fabric
    • 40Gbps
  • MAC Table Size
    • 8K
  • Packet Buffer Memory
    • 4Mb
  • Forward/Filtering Rate
    • 14,880pps for 10Mbps
    • 148,880pps for 100Mbps
    • 1,488,000pps for 1000Mbps
  • Processing Type
    • Store-and-Forward
    • Auto-Negotiation
    • Half-duplex back-pressure full-duplex flow control
    • Auto MDI/MDIX

Power

  • Input
    • 100-240VAC, 50/60Hz
  • Power Consumption
    • Device:20W (Without PoE)
  • PoE Power Budget
    • 250W

Physical

  • Casing Material
    • Metal
  • Dimensions
    • 17.3" x 8.66" x 1.73" (W x D x H)
      440 x 220 x 44mm (W x D x H)
  • Weight
    • 6.6lbs (3Kg)
  • Installation Type
    • Rack Mounting

Environmental

  • Operating Temp.
    • 32 to 122°F (0 to 50°C)
  • Storage Temp.
    • -4 to 176°F (-20 to 80°C)
  • Relative Humidity
    • 10% to 90% (non-condensing)

Regulatory

  • ISO
    • Manufactured in ISO-9001 facility
  • EMI
    • FCC Part 15 Class A
  • Safety
    • UL 62368-1

Warranty

What's Included

  • Device
    • Ethernet Switch
  • Power
    • AC power cord
  • Installation
    • Mounting brackets, screws
  • Documentation
    • Quick install guide
Product Dimensions of EX19162A



Model

EX1916218-port 10/100/1000BASE-T(X) (16 PoE) + 2 1000M SFP

* Rack mounting kit included.
