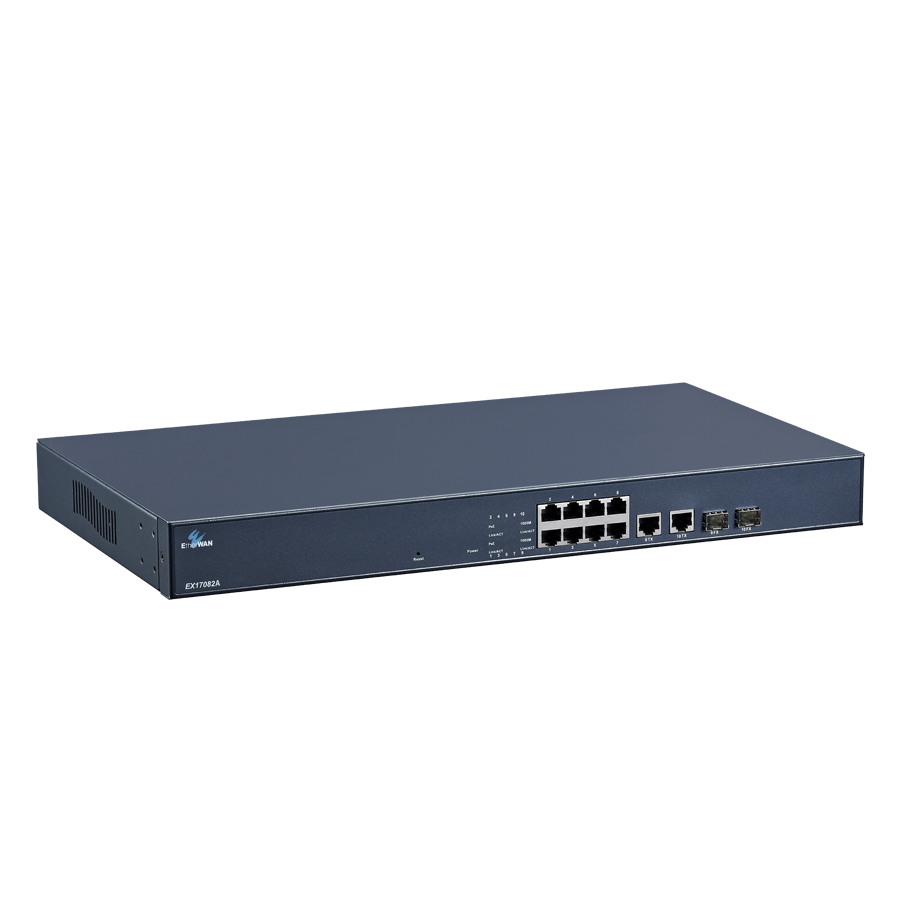

EtherWAN's EX17082A provides a 10-port switching platform supporting IEEE802.3at Power over Ethernet, high performance switching with robust features required for small-business or enterprise environments where sustained connectivity is crucial.
The EX17082A is equipped with 8 10/100BASE-TX PoE ports, in combination with two Gigabit SFP ports. The EX17082A is feature rich with full wire speed throughput, making the EX17082A Series a powerful network switch..
The IEEE802.3at PoE ports provide up to 30W/port with a PoE power budget of 240W, making the switch truly versatile for connecting with PoE Powered Devices (PD) with different bandwidth and power consumption requirements such as; outdoor PTZ dome cameras, wireless access points, and way-side communication devices.
EtherWAN — "When Connectivity is Crucial."
Power over Ethernet
» Supports 8-port IEEE802.3at Power over Ethernet (PoE) and Power Sourcing Equipment (PSE)
SFP Connectivity
» Built-in 2-port combo Gigabit SFP for either Gigabit copper or SFP connectivity
Technology
Standards
- • IEEE802.3 10BASE-T
- • IEEE802.3u 100BASE-TX/100BASE-FX
- • IEEE802.3x full duplex and flow control
- • IEEE802.3ab 1000BASE-TX
- • IEEE802.3z 1000BASE-SX/LX
- • IEEE802.3af/at Power over Ethernet
Forward and Filtering Rate
- • 14,880pps for 10Mbps
- • 148,810pps for 100Mbps
- • 1,488,100pps for 1000Mbps
Packet Buffer Memory
- • 2.75M bits
Processing Type
- • Store-and-Forward
- • Half-duplex back-pressure and IEEE802.3x full-duplex flow control
Address Table Size
- • 4096 MAC addresses
Power
Input
- • 100 to 240VAC, 50/60Hz
Power Consumption
- • Device: Max. 11W (without PoE)
- • PoE Power Budget: 240W max.
PoE Technology
- • Alternative A, Pins 1/2(+), 3/6(-)
PoE Power Output
- • IEEE 802.3at: up to 30W/port, 50 - 57VDC, 600mA Max.
Mechanical
Casing
- • Metal Case

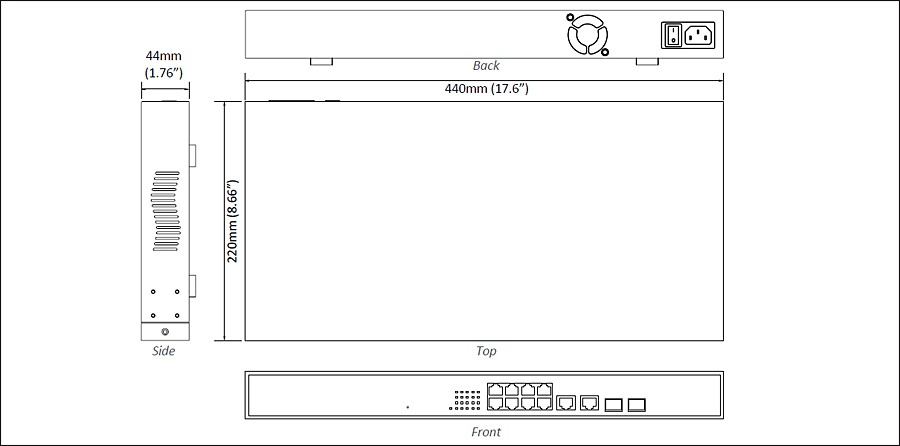

Dimensions
- • 440 x 220 x 44mm (W x D x H)
(17.6" x 8.8" x 1.76") - • Standard 19" rack-mount size, one-unit-height
Weight
- • 3.1Kg (6.83lbs.)
Installation
- • Rack mounting
Interface
Ethernet Port
- • 10/100BASE-TX: 8 PoE ports
- • Gigabit: 2ports
LED Indicators
- • Per Unit: Power Status
- • Per Port 10/100TX and 100FX: Link/Activity
- • Per Port PoE: Act/status
Environment
Operating Temperature
- • 0 to 45°C (32 to 113°F)
Storage Temperature
- • -10 to 70°C (14 to 158°F)
Ambient Relative Humidity
- • 10% to 90% (non-condensing)
Regulatory Approvals
ISO
- • Manufactured in an ISO 9001 facility
Safety
- UL 60950
EMI
- CE Mark Class A, FCC Part 15 ClassA
Model
| EX17082A | 8-port 10/100BASE-TX PoE (IEEE802.3at) and 2-port combo Gigabit SFP Unmanaged Ethernet Switch |
* Rack mounting kit included.
