EW75000-13

Buy Now

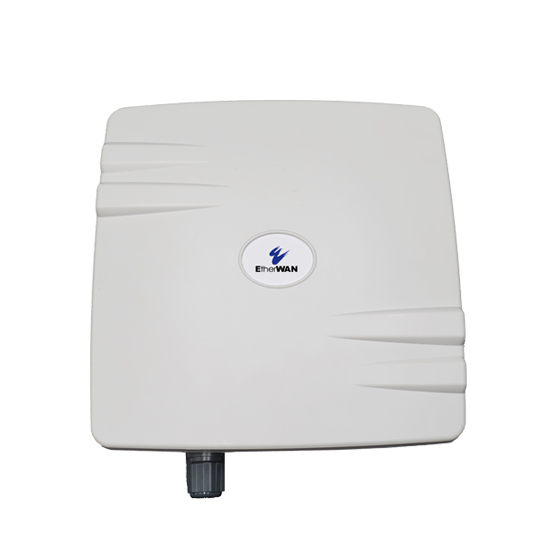

Hardened IP67 Outdoor Wireless Bridge Subscriber Unit
Fanless
IP67
5 GHz
ITS
PtP
Wide Temperature
Only Available in North America
Downloads
DatasheetQIGManualsFirmware
Inquiry

The eWAV series is a family of hardened IP67 outdoor wireless access points (WAP) providing high-speed wireless connectivity for harsh and demanding environments. Comprised of high-power, long-range single and dual-band IEEE 802.11ac MIMO wireless radios with gigabit IEEE 802.3at PoE connectivity, the series is hardened against extreme temperatures and water ingress.

eWAV delivers the power and range (up to 20 miles) to wirelessly connect remote networks, or extend existing networks in an efficient and cost-effective way. It supports 5GHz 802.11a/n/ac for long-distance Point-to-Point and Point-to-Multi-Point connections with up to 867Mbps transmission speeds.

EtherWAN — "When Connectivity is Crucial."

High Bandwidth Wireless Connectivity

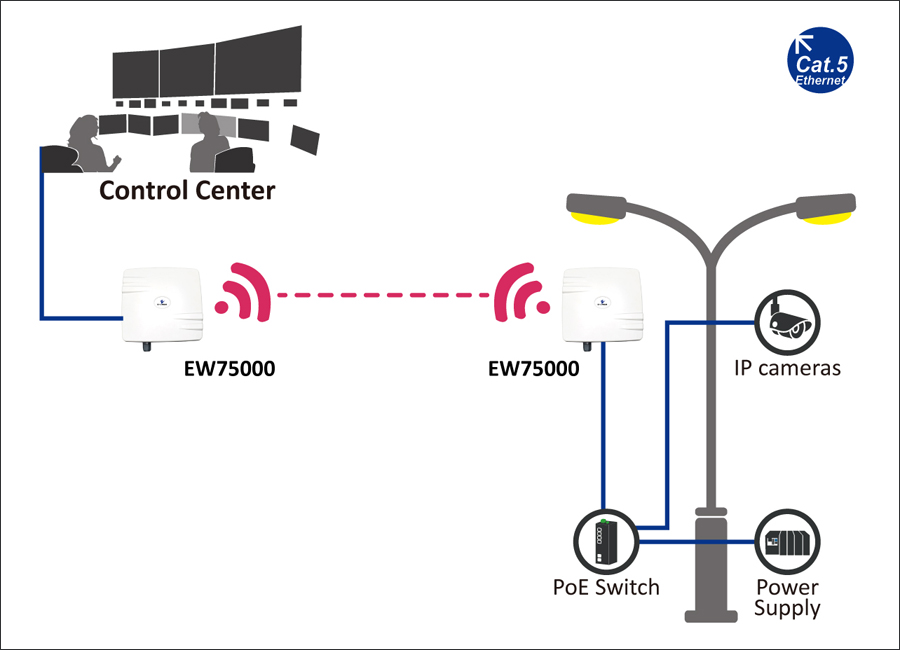

  • Design for Point-to-Point wireless remote connectivity
  • IEEE 802.11a/n/ac providing high throughput data transmission on 5GHz up to 866Mbps
  • 2 x 2 MIMO antennas with high gains

Hardened Grade with IP67 Protection

  • Wide operating temperature range for extreme environments
  • Fanless and ruggedized outdoor IP67 enclosure

Comprehensive and Advanced Software Features

  • Static routing, RIPv1 & v2 and OSPFv2
  • Built in Stateful Firewall and RADIUS for security control
  • RF strength LEDs and Bandwidth Tester to ease installation effort

Interface

  • Web Browser
  • SNMP v1/v2/v3

Management

  • Firmware and configuration upgrade and backup via Web Browser
  • Supports DHCP Server/Client/Relay
  • DNS cache and Web Proxy
  • System health monitoring including temperature and voltage
  • Local system log, e-mail and remote log service
  • SNTP client
  • Useful tools such as Bandwidth Test, E-mail, Ping, Traceroute, Packet Sniffer and Traffic Generator

Wireless

  • Encryption: WPA, WPA2, WEP, AES
  • Dynamic Frequency selection
  • Proprietary Nstreme and Nv2 protocols for long distance transmission

Routing

  • Static routing, RIPv1 & v2 and OSPFv2
  • Bidirectional Forwarding Detection
  • Prefix List to filter and control the routing table

Security

  • RADIUS client
  • Powerful Firewall
    • Stateful packet inspection
    • Layer-7 protocol detection
    • Peer-to-peer protocols filtering
    • Traffic classification by:
      1. Source MAC address
      2. IP addresses (network or list) and address types (broadcast, local, multicast, unicast)
      3. Port or port range
      4. IP protocols
      5. Protocol options (ICMP type and code fields, TCP flags, IP options and MSS)
      6. Interface the packet arrived from or left through
      7. Internal flow and connection marks
      8. DSCP byte
      9. Packet content
      10. Rate at which packets arrive and sequence numbers
      11. Packet size
      12. Packet arrival time

Technology

  • Standards
    • IEEE 802.3 10BASE-T
    • IEEE 802.3u 100BASE-TX
    • IEEE 802.3ab 1000BASE-T
    • IEEE 802.11a/n/ac Wireless LAN
  • Performance
    • Wireless transmission rate 5GHz:
      • 11a: 108Mbps
      • 11n: 300Mbps
      • 11ac: 866Mbps
    • Ethernet data rate:
      • Up to 540Mbps (LAN to wireless 11ac)
  • Wireless
    • RF channels: 2 Non-overlapping
    • Frequency range: 5GHz: 5150-5250MHz and 5725-5850MHz
    • Channel width: 5GHz: 10MHz, 20MHz, 40MHz, 80MHz
    • Data security: 256-bit AES-CCM

Mechanical

  • Casing
    • UV Protected Polystyrene case with internal metal enclosure
    • IP67
  • Dimensions (W x H x D)
    • EW75000-13: 270 x 301.7 x 76mm (10.63"x 11.88" x 3")
  • Weight
    • EW75000-13: 3.5lbs
  • Installation
    • Pole/Wall Mounting

Power

  • Input
    • 48VDC PoE Including Passive PoE, Telecom PoE, 802.3af and 802.3at
  • Power Consumption
    • 13W Max.

Interface

  • Ethernet Port
    • 10/100/1000BASE-TX PoE
  • LED Indicators

Environment

  • Operating Temperature
    • -40 to 75°C (-40 to 167°F)
  • Storage Temperature
    • -45 to 85°C (-49 to 185°F)
  • Ambient Relative Humidity
    • 5% to 95% (non-condensing)

Regulatory Approvals

  • ISO
    • Manufactured in an ISO 9001 facility
  • EMI
    • FCC Part 15B Class A
    • FCC Part 15C
  • Environmental Test Compliance
    • IEC 60068-2-6 Fc (Vibration Resistance)
    • FED STD 101C Method 5007.1 (Free fall w/package)

Model

EW75000-13 - Buy NowHardened IP67 outdoor wireless bridge subscriber unit with 5GHz/19dBi Panel antenna

Accessories

EW-JPole1818" Wall Mount J-Pole
Cable 2525' Shielded Twisted Pair CAT 6 Cable with UV Resistant Coating
Cable 5050' Shielded Twisted Pair CAT 6 Cable with UV Resistant Coating
Cable 150150' Shielded Twisted Pair CAT 6 Cable with UV Resistant Coating
Cable 300330' Shielded Twisted Pair CAT 6 Cable with UV Resistant Coating
