ED3541 Series

High Speed Performance

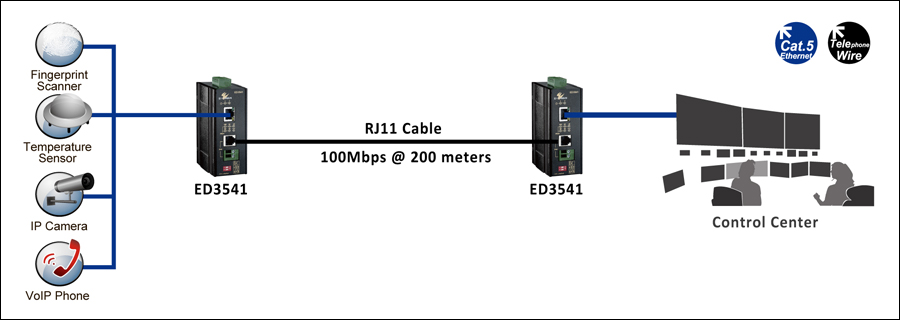

• • Up to 100Mbps at 200 meters distance
  • Up to 1Mbps at 2200 meters distance

Wide Operating Temperature

• • Fanless and wide operating temperature range -40 to 75°C (-40 to 167°F)

For Use in Hazardous Locations

• • Class 1, Division 2 certified for use in hazardous locations

Interface

• Ethernet Port
  • Port: One RJ-45 port
  • Speed: 10/100Mbps
  • Distance: 100 meters (328ft.)
  • Cable: 10BASE-T: UTP Cat. 3, 4, 5 (2-pair wire); 100BASE-TX: UTP Cat. 5 (4-pair wire)
• Ethernet Extender Port
  • Port: One RJ-11/Terminal Block port
  • Speed: Up to 100Mbps
  • Distance: 2200 meters (7,217ft.)
  • Cable: Telephone wire 24AWG (0.5mm diameter, 1-pair wire) or larger
• DIP Switch
  • DIP 1 Site: Auto/Loc
  • DIP 2 LDR: On/Off
• LED Indicators
  • Per Unit: Power 1, Power 2
  • Per 10/100TX Port: Link/Activity, full-duplex
  • Line Speed: 100/80/60/40/20Mbps and link below 20Mbps

• Distance (m)	Data rate (Mbps)
  200	100
  400	80
  600	60
  800	40
  ...	...
  2200	1

  All speed selections are Symmetrical on the DSL and Full-duplex on the Ethernet.
  The data rate will vary according to the line quality.

Physical

• Casing Material
  • Aluminum
• Dimensions
  • 42 x 90 x 100mm (W x D x H)
    1.65” x 3.54” x 3.94"
• Weight
  • 0.41kg (0.9lbs)
• Installation Type
  • DIN-rail mounting (Top hat type 35mm)

Technology

• Standards
  • IEEE 802.3 10BASE-T
  • IEEE 802.3u 100BASE-TX
  • IEEE 802.3x full duplex and flow control
• Processing Type
  • Half-duplex back-pressure and IEEE 802.3x full-duplex flow control
  • Auto-negotiation
  • Auto MDI/MDIX

Power

• Input
  • 12-48VDC Redundant (Terminal Block)
• Power Consumption
  • 4.56W max. 0.38A@12VDC, 0.07A@48VDC
• Protection
  • Over Current Protection
  • Reverse Polarity Protection

Regulatory

• ISO
  • Manufactured in ISO-9001 facility
• EMI
  • FCC Part 15B Class A
  • VCCI Class A
  • EN 61000-6-4
• EMS
  • EN 61000-6-2
  • EN 61000-4-2 (ESD)
  • EN 61000-4-3 (Radiated RFI)
  • EN 61000-4-4 (Burst)
  • EN 61000-4-5 (Surge)
  • EN 61000-4-6 (Induced RFI)
  • EN 61000-4-8 (Magnetic field)
• Safety
  • UL 60950-1
  • EN 60950-1
  • IEC 60950-1
  • ISA 12.12.01
  • Class 1, Division 2 group A, B, C & D for hazardous locations
• Vibration
  • IEC 60068-2-6 Fc
• Shock
  • IEC 60068-2-27 Ea
• Free Fall
  • FED STD 101C Method 5007.1

Environmental

• Operating Temp.
  • -40 to 75°C (-40 to 167°F)
• Storage Temp.
  • -45 to 85°C (-49 to 185°F)
• Relative Humidity
  • 5% to 95% (non-condensing)

Warranty

• Length
  • Limited Lifetime
• Details
  • www.etherwan.com/support/warranty-policy

What's Included

• Device
  • Ethernet Extender
• Documentation
  • Quick Install Guide
