Fiber Shear for Traffic Cabinets
Wide Temperature
IP65
Only Available in North America
Maintains the integrity of the infrastructure fiber cabling after a cabinet knockdown accident
Enables device restoration within minutes
Eliminates additional failure points
Downloads
DatasheetQIG
Inquiry

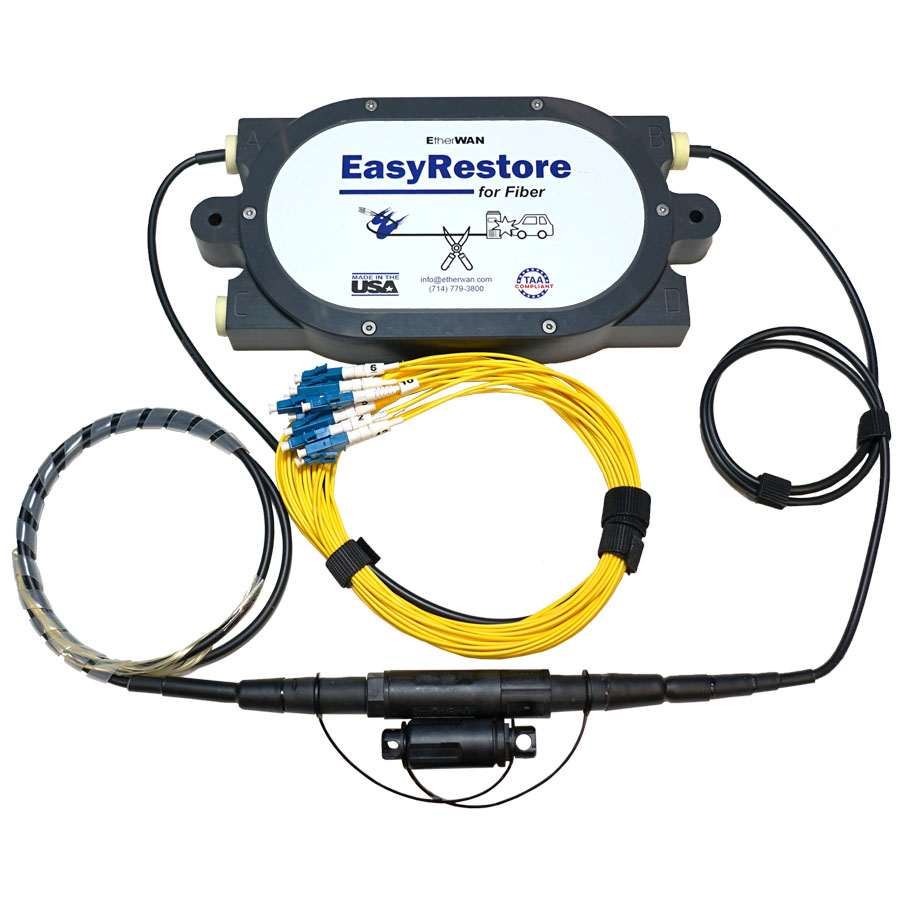

EtherWAN’s EasyRestore for Fiber is a cabinet termination device for traffic cabinets and roadside nodes. EasyRestore allows fiber optic cabling to be control sheared at the base of the cabinet, preventing stress on the cable in the ground and at the electrical device connection.

EtherWAN — "When Connectivity is Crucial."

Time/Cost Saving Features

  • Infrastructure fiber cabling remains intact after an accident knocks down a cabinet
  • Enables device restoration within minutes of equipment reset
  • Eliminates patch cords and additional failure points, reducing maintenance costs

Outdoor Rated Design

  • Maintains material integrity at a wide operating temperature range from -40 to 180°F
  • IP66 weather resistance
  • Outdoor rated cabling

Support

  • Complimentary technical support
  • Free firmware upgrades and notifications
  • Limited lifetime warranty

Physical

  • Casing Material
    • Delrin
  • IP Rating
    • IP66
  • Dimensions
    • 10.5” x 5” x 1.2” (W x D x H)
  • Weight
    • 2lbs (0.91kg)
  • Module Coupling Retainer Screws
    • #8 Zinc Plated Machine Screws
  • Cabinet Channel Mounting Screws
    • 1/4-20 threaded Electro-galvanized steel, Unistrut model P6013-1420, with ½” extended 1/4-20 machine screws
  • Pad Mount
    • Steel Read Head Drop-in Anchors
  • Fiber
    • G.652.D glass, in tight buffered I/O jacketed configuration
  • Fan Out
    • 4.5ft I/O fan-out to 36in long 3.0mm fiber, Total 7.5ft of interconnect cable inside cabinet
  • Fan Out Cable
    • Outdoor hazardous duty cable tight buffered, 1.5M-BIF, 3.0mm, yellow polyurethane jacket
  • Configuration
    • Device with drop cable and 3.0mm outdoor-rated interface cable
  • Number of Connectors
    • 12 total
  • Connector Type
    • LC
  • Mounting
    • Concrete pedestal mount or cabinet wall mount

Environmental

  • Operating Temp.
    • -40 to 180°F (-40 to 75°C)
  • Storage Temp.
    • -40 to 185°F (-40 to 85°C)
  • Relative Humidity
    • 5% to 95% (non-condensing)

Warranty

What's Included

  • Device
    • Injector
  • Installation
    • Mounting brackets, screws, 4-pin terminal block
  • Documentation
    • Quick install guide

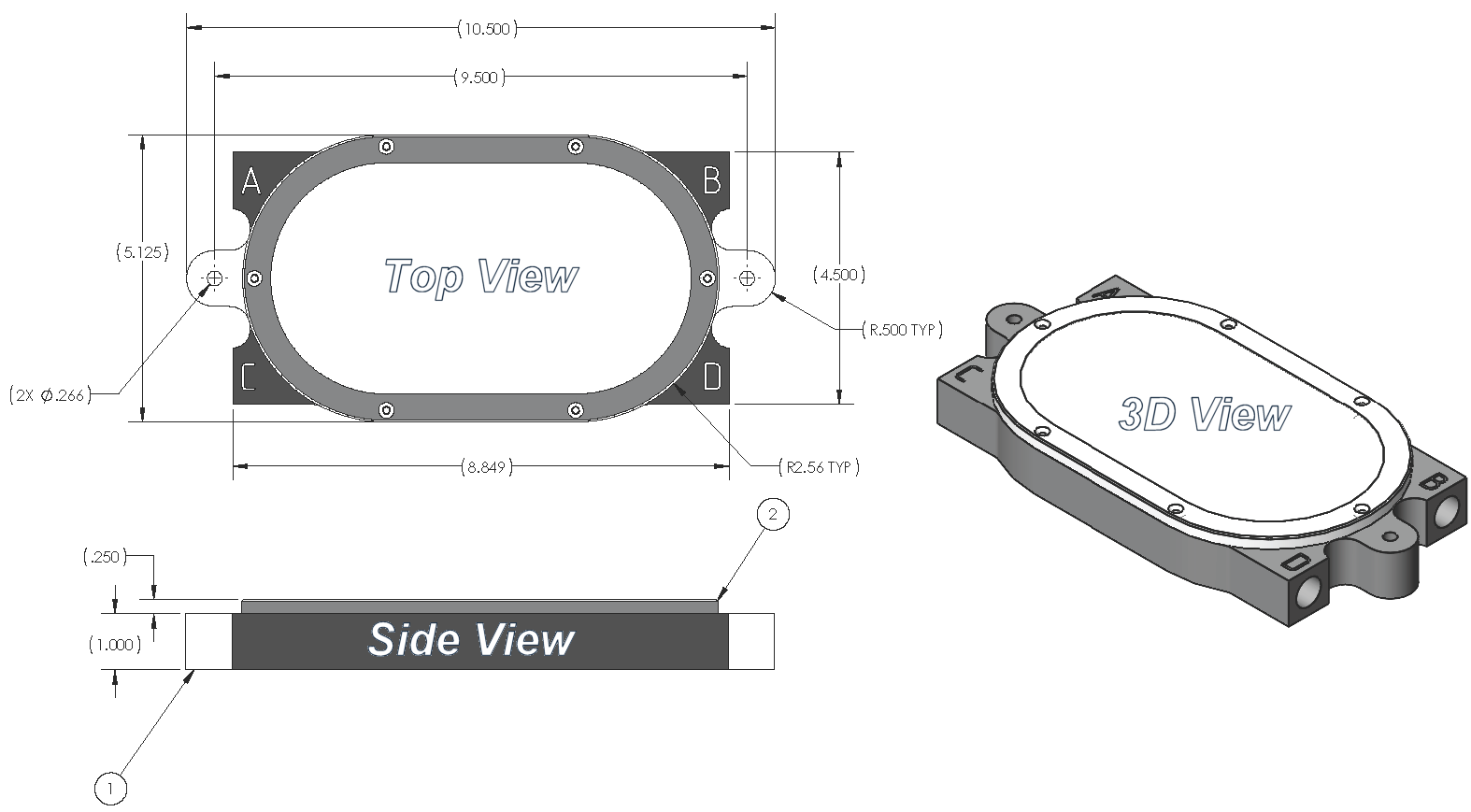

EasyRestore Dimensions



Model

EASYRESTOREControlled Fiber Shear Device, 12 LC Connectors for Termination, Full Kit, Armored Fiber Cable
EASYRESTORE-REPControlled Fiber Shear Device, 12 LC Connectors for Termination, Replacement Unit

Model

EASYRESTORE-DC100Optional 100-ft Armored Drop Cable for Infrastructure
EASYRESTORE-DC200Optional 200-ft Armored Drop Cable for Infrastructure
EASYRESTORE-DC300Optional 300-ft Armored Drop Cable for Infrastructure
EASYRESTORE-DC400Optional 400-ft Armored Drop Cable for Infrastructure
EASYRESTORE-DC500Optional 500-ft Armored Drop Cable for Infrastructure
