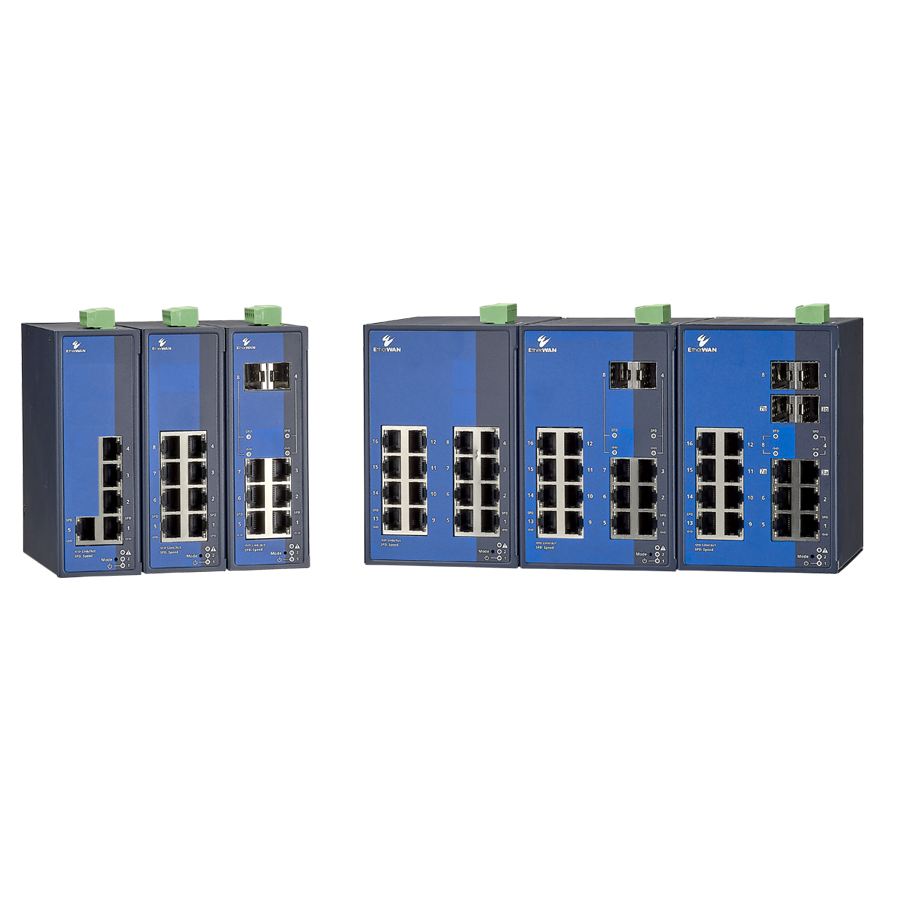

SmartE シリーズ

広範囲動作温度対応産業用5 ~ 16ポート ファースト/ギガビット イーサネットスイッチ
SFP
Wide Temperature
Fanless
UL 61010
UL
ネットワーク冗長化機能IEC 62439-2 MRP manager/clientに対応
幅広い製品ラインナップ
主要なレイヤー2管理機能を提供
ユーザーフレンドリーなweb-GUI
モードボタンによる簡単で迅速な設定
デュアルレートSFPポート対応

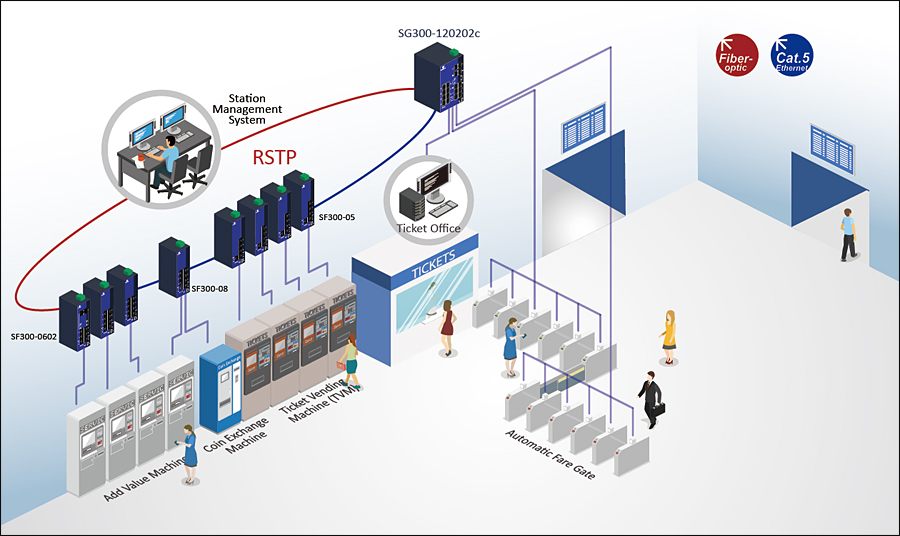

The SmartE series is a portfolio of hardened Layer 2 managed Ethernet switches. SmartE provides two mounting methods, DIN-rail and wall mounting, and comes in a fanless design that incorporates industrial grade components. This allows the SmartE to provide industrial-grade reliability and reliable operation in wide temperature ranges (-40 to 75 degrees C ). By offering Layer 2 management features that are perfect for supporting network connectivity for industrial edge applications even in industrial and harsh environments. The SmartE Layer 2 Ethernet switches are available in both Fast Ethernet and Gigabit Ethernet configurations, offering 5 port, 8 port, or 16 port 10/100 or gigabit Ethernet copper ports, and 2 optional SFP fiber ports for network expansion, the SmartE series provides a reliable Layer 2 management network solution for critical applications.

EtherWAN — "When Connectivity is Crucial."

Hardened Grade for Non-Ventilated & Harsh Environments

    • Wide operating temperature -40 to 75°C (-40 to 167°F)
    • Fanless design
    • High impact, shock, and electrical noise resistance

Compliance

    • UL 61010 certified for safety

Multiple Management Options

    • Web-based management (HTTP/HTTPS)
    • Role-based user management
    • SNMP v1/v2/v3
    • Command-line interface (Telnet, SSH)

Support

    • Complimentary Technical Support
    • Free Firmware Upgrades

Interface

    • CLI, Telnet, Web GUI, SSH

Management

    • Firmware upgrade
    • Configuration backup
    • RMON (Remote Monitoring, SNMP only)
    • Port mirroring
    • SNTP (Simple Network Time Protocol) synchronization
    • LLDP (Link Layer Discovery Protocol)
    • IPv4
    • SNMP v1/v2c/v3
    • DHCP Option 82, DHCP Server/Client

Security

    • MAC Address filtering
    • Enable/Disable port
    • Storm Control
    • System Logging
    • IEEE 802.1x LAN Access Control
    • IEEE 802.1x RADIUS Authentication
    • Complex password support
    • SSH for CLI and Telnet security
    • SSL and HTTPS for Web security

Quality of Service (QoS)

    • Priority Queues: 8 queues per port
    • Traffic classification based on IEEE 802.1p CoS (Cost of Service), DSCP (Differentiated Services Code Point), WRR (Weighted Round Robin) and strict mode

Layer 2 Features

  • Auto-negotiation for port speed and duplex mode
    • Flow Control
    • IEEE 802.3x full duplex mode
    • Back-pressure half duplex mode
  • Redundant Protocols
    • IEEE 802.1w RSTP
    • Large Tree Support
    • Fast Ring Detection
    • MRP (Manager/Client)
  • VLANs
    • IEEE 802.1Q Tag VLANs
  • Link Aggregation
    • Static Trunk (4 groups)
    • IEEE 802.3ad LACP
  • IGMP Snooping v1/v2

Software Properties and Performance

  • Total VLAN Entries
    • 32
  • Jumbo Frame Size
    • 9K bytes (Gigabit Ethernet Models only)

Interface

  • Ethernet
    • 10/100BASE-T(X): 5, 6, 8, 14, or 16 ports
    • 100BASE SFP: 0, or 2 ports
    • 10/100/1000BASE-T(X): 6, 8, 12, or 16 ports
    • 100/1000BASE SFP: 0, 2, or 4 ports
  • Alarm Contact
    • 1 x Digital output, current capacity
    • Typ. 100mA, Max. 0.7A (1minute)
  • LED Indicators
    • Per Unit: Power 1 (Green), Power 2 (Green), Alarm (Red)
    • Per Port: Link/Activity (Green; Orange: when SFP link at Combo port), Speed (Off: 10Mbps; Green: 100Mbps; Orange: 1000Mbps)
  • Mode Button
    • Exiting reset mode without changes
    • Resetting to the factory settings
    • Operating with a fixed IP address
    • Resetting the IP configuration
    • Operating in unmanaged mode

Physical

  • Casing Material
    • Metal
  • IP Rating
    • IP30
  • Dimensions
    • 5, 8 ports: 45 x 125.5 x 130mm (W x D x H)
    • 16 ports: 85 x 125.5 x 130mm (W x D x H)
  • Weight
    • 8 ports, 388g
    • 16 ports, 676g
  • Installation Type
    • DIN-Rail
    • Panel mounting (Optional)

Technology

  • Standards
    • IEEE 802.3 10BASE-T
    • IEEE 802.3u 100BASE-TX/100BASE-FX
    • IEEE 802.3ab 1000BASE-T
    • IEEE 802.3z 1000BASE-SX/1000BASE-LX
    • IEEE 802.3x Full duplex and flow control
    • IEEE 802.3ad LACP
    • IEEE 802.1p QoS
    • IEEE 802.1Q Tag VLANS
    • IEEE 802.1w RSTP
    • IEEE 802.1ab LLDP
    • IEEE 802.1x Port-based Network Access Control
    • IEC 62439-2 MRP (Media Redundancy Protocol)
  • Forward/Filtering Rate
    • 14,880pps for 10Mbps
    • 148,880pps for 100Mbps
    • 1,488,000pps for 1000Mbps
  • Processing Type
    • Store-and-Forward
    • Auto-Negotiation
    • Half-duplex back-pressure full-duplex flow control
    • Auto MDI/MDIX
  • System Memory
    • 4M bits
  • Address Table Size
    • 8K MAC

Power

  • Input
    • 12-57VDC Redundant
  • Power Consumption
    • 8 ports: 8.55W Max
    • 16 ports: 11.4W Max
  • Protection
    • Reverse Polarity Protection

Environmental

  • Operating Temp.
    • -40 to 75°C (-40 to 167°F)
  • Storage Temp.
    • -40 to 85°C (-40 to 185°F)
  • Relative Humidity
    • 10% to 95% (non-condensing)
  • MTBF
    • 8 ports: 2,937,277.25 hours
    • 16 ports: 2,255,206 hours

Regulatory

  • ISO
    • Manufactured in ISO-9001 facility
  • EMI
    • FCC Part 15B Class A
    • VCCI Class A
    • ICES-003
    • EN 61000-6-4
  • EMS
    • EN 61000-3-2
    • EN 61000-3-3
    • EN 61000-6-2
      EN 61000-4-2 (ESD)
    • EN 61000-4-3 (Radiated RFI)
    • EN 61000-4-4 (Burst)
    • EN 61000-4-5 (Surge)
    • EN 61000-4-6 (Induced RFI)
    • EN 61000-4-8 (Magnetic Field)
  • Safety
    • UL 61010
  • Vibration
    • IEC 60068-2-6
  • Shock
    • IEC 60068-2-27
  • Free Fall
    • FED STD 101C Method 5007.1

Warranty

What's Included

  • Device
    • Ethernet switch
  • Installation
    • DIN-Rail bracket, screws
  • Documentation
    • Quick install guide

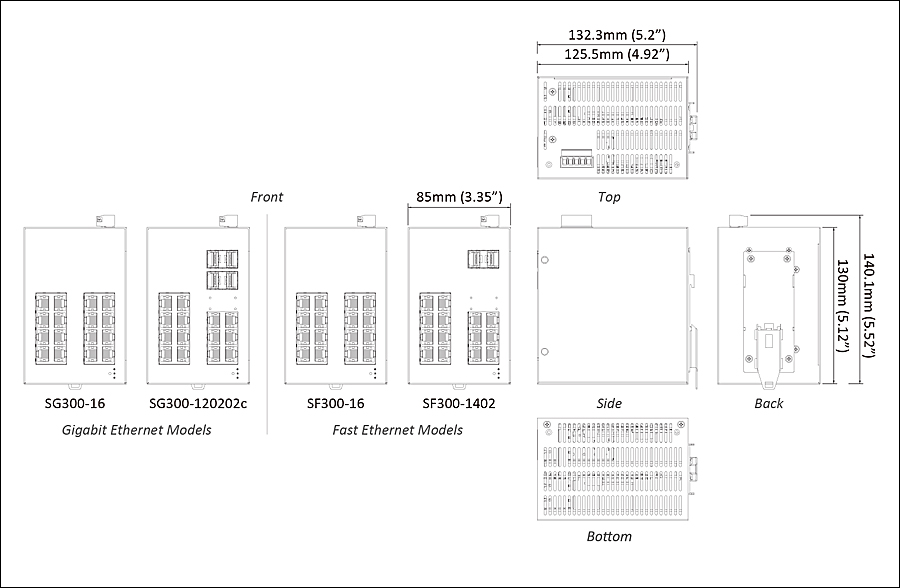

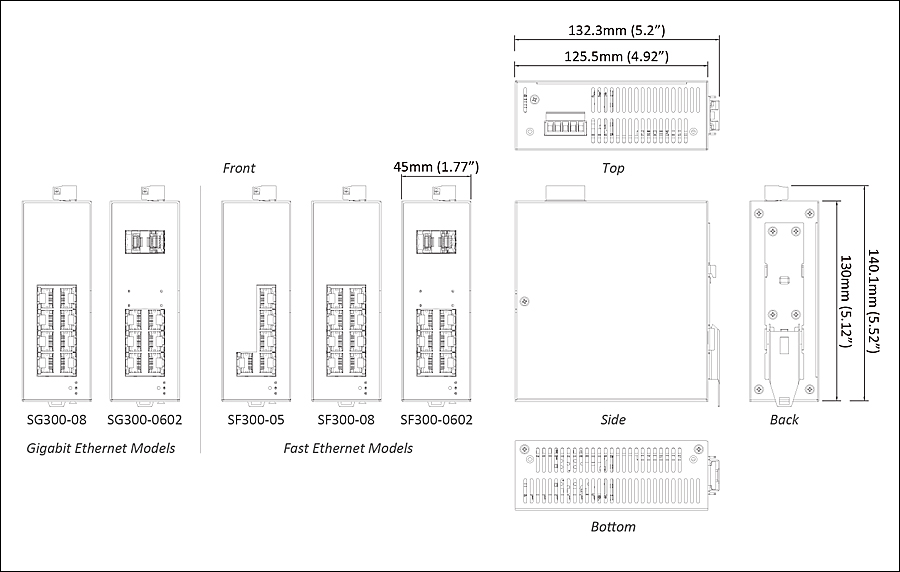

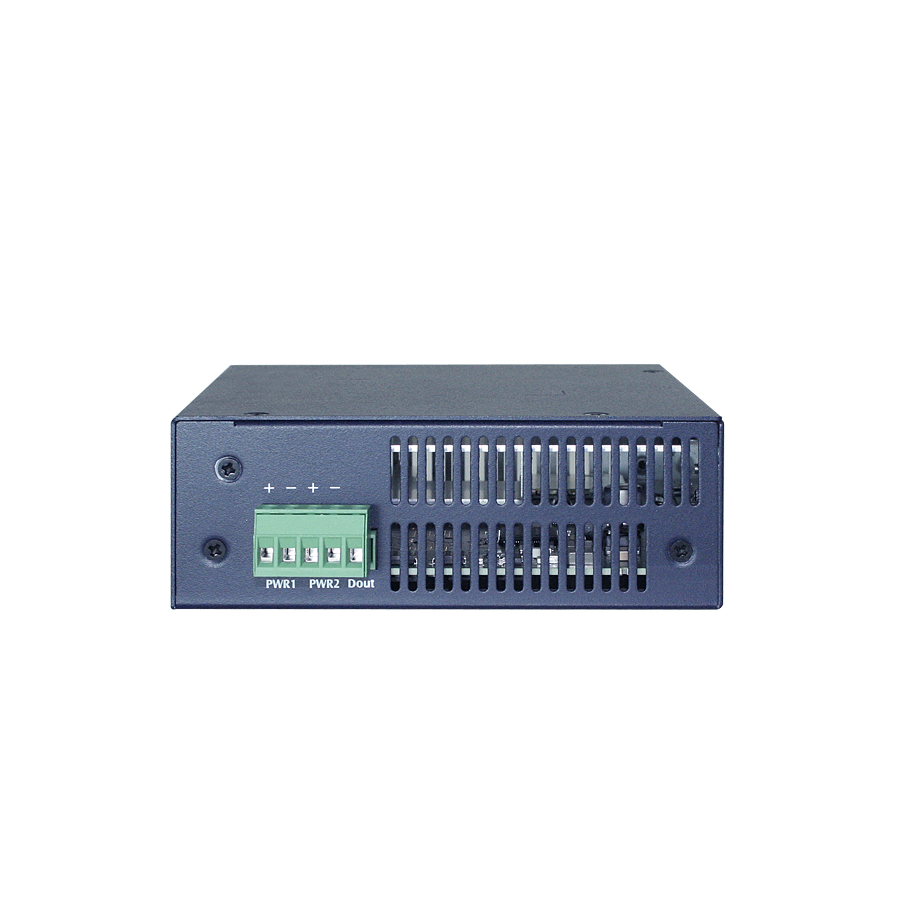

Hardened Lite Managed 5 to 16-Port Fast/Gigabit Ethernet Switch_dimensions

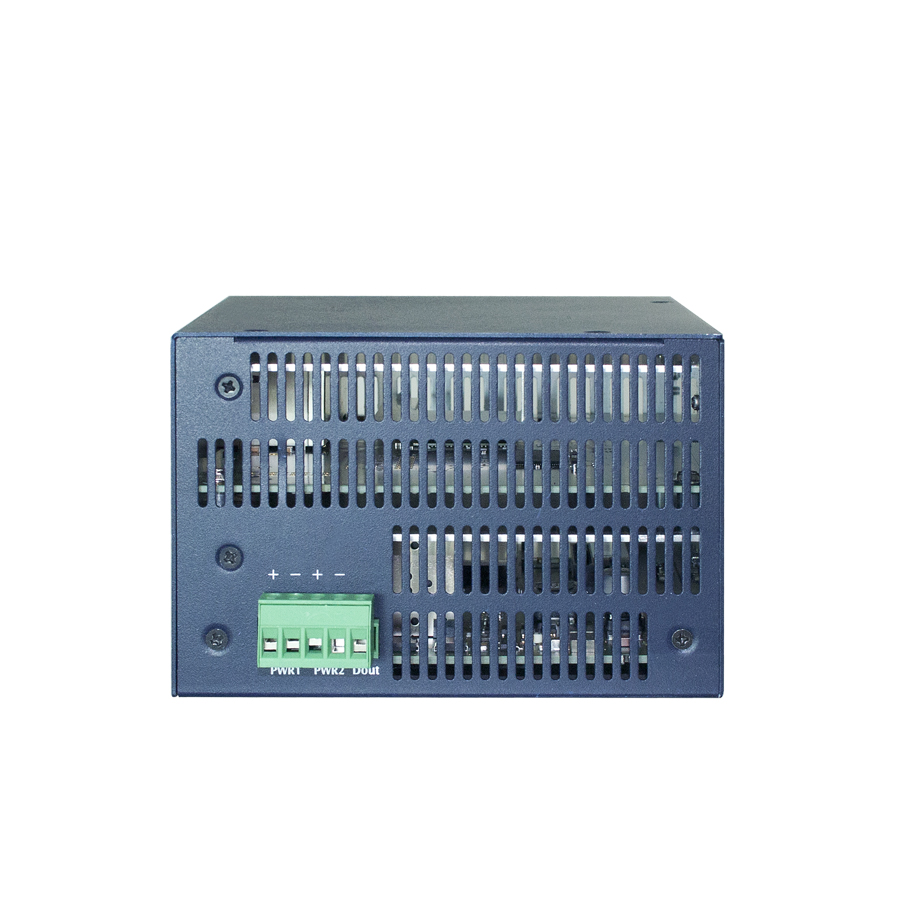

Hardened Lite Managed 5 to 16-Port Fast/Gigabit Ethernet Switch_dimensions

Model

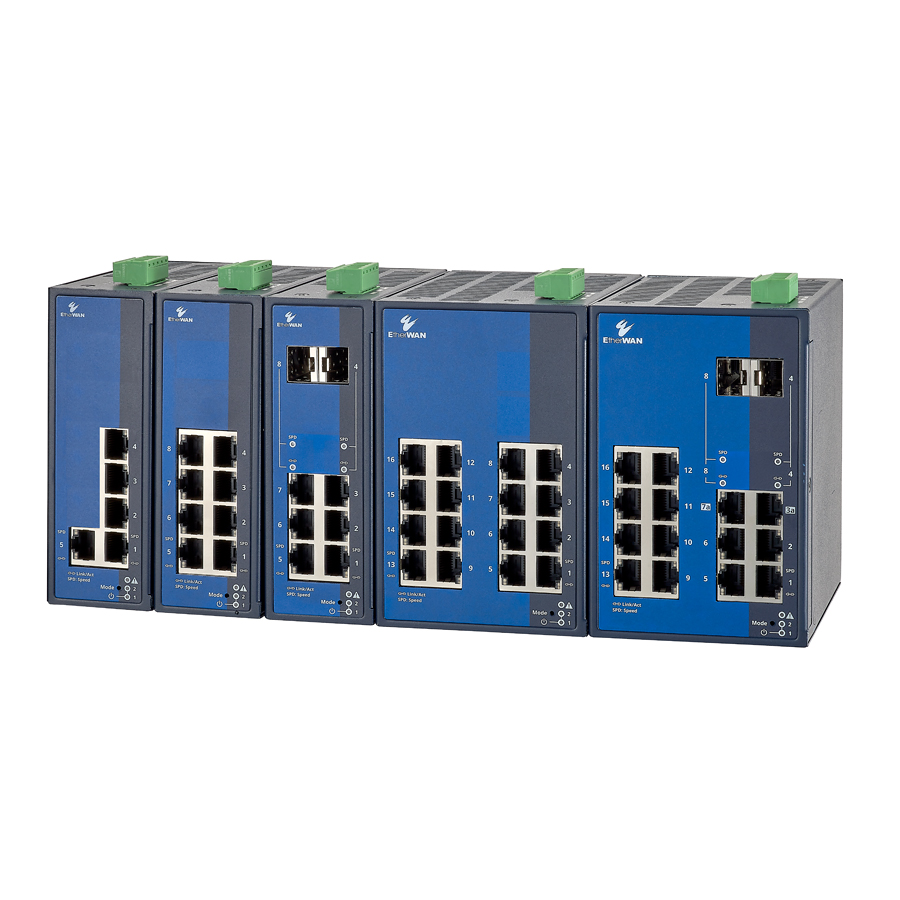

Fast Ethernet Models

SF300-055-port 10/100BASE-T(X)
SF300-088-port 10/100BASE-T(X)

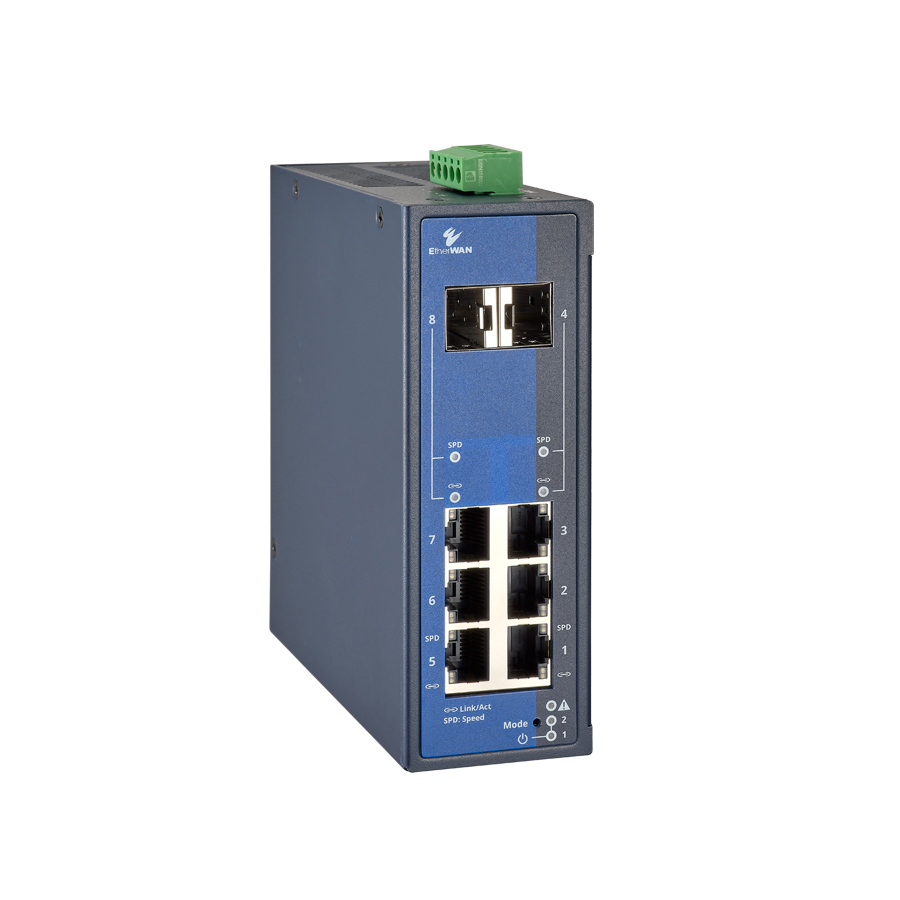

SF300-06026-port 10/100BASE-T(X) + 2-port 100BASE SFP
SF300-1616-port 10/100BASE-T(X)

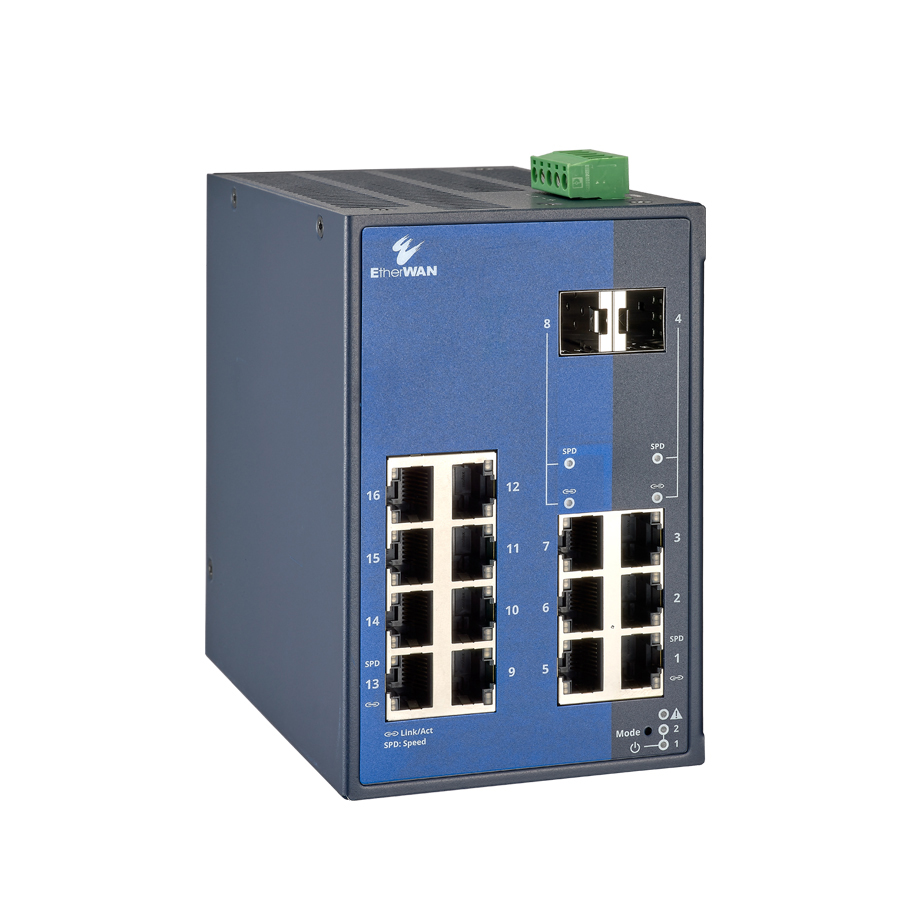

SF300-140214-port 10/100BASE-T(X) + 2-port 100BASE SFP

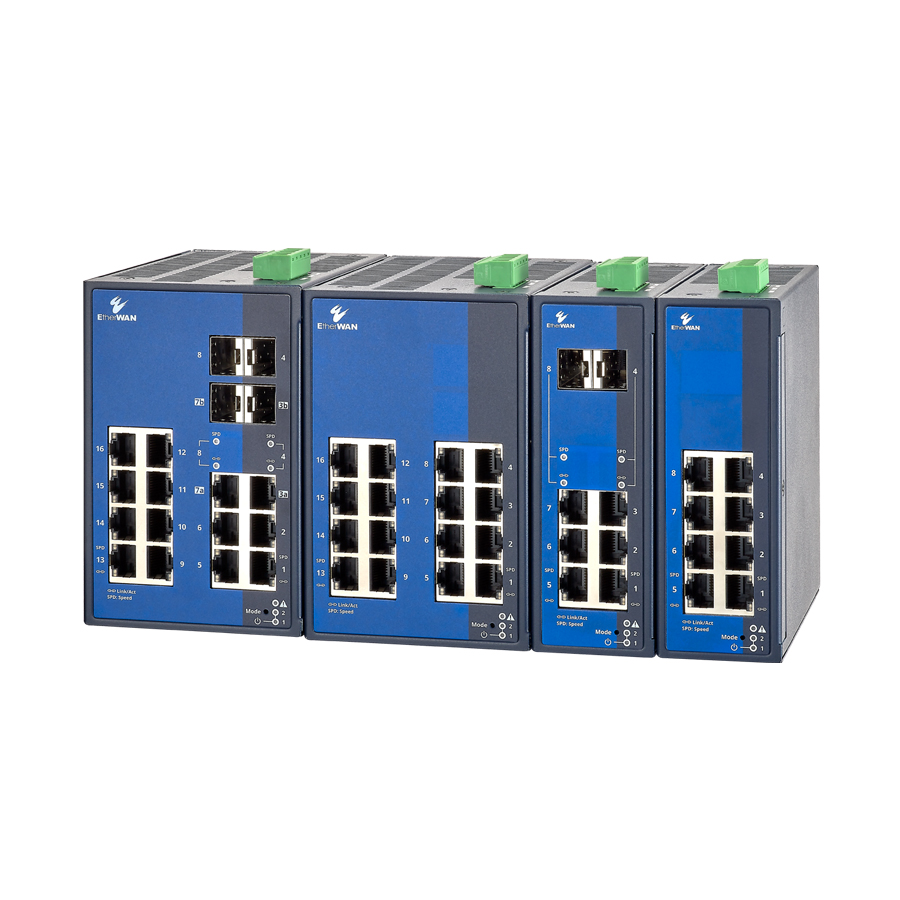

Gigabit Ethernet Models

SG300-088-port 10/100/1000BASE-T(X)
SG300-06026-port 10/100/1000BASE-T(X) + 2-port 100/1000BASE SFP
SG300-1616-port 10/100/1000BASE-T(X)
SG300-120202c12-port 10/100/1000BASE-T(X) + 2-port 100/1000BASE SFP Combo + 2-port 100/1000BASE SFP

Accessories

Hardened 100BASE SFP Moduleswww.etherwan.com/products/sfp-fiber-transceiver
Hardened Gigabit SFP Moduleswww.etherwan.com/products/sfp-fiber-transceiver
Panel Mounting Kit
  • »   KP-AA96-480
  • »  KP-S300
www.etherwan.com/products/mounting-kits
