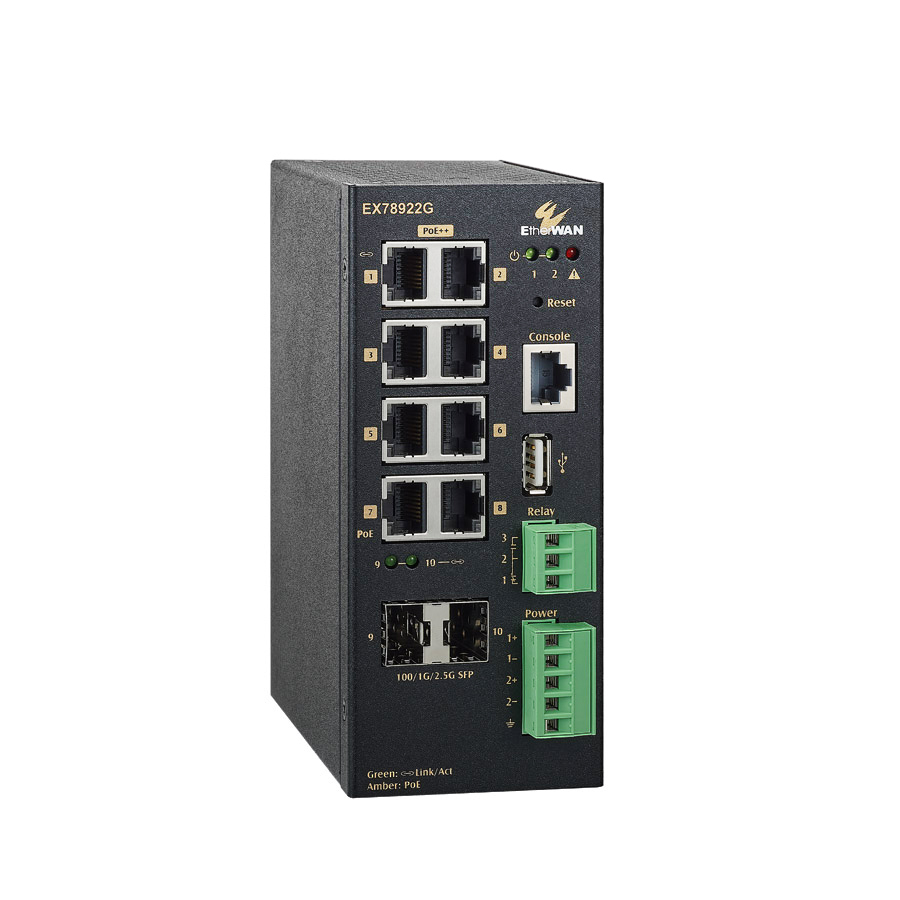

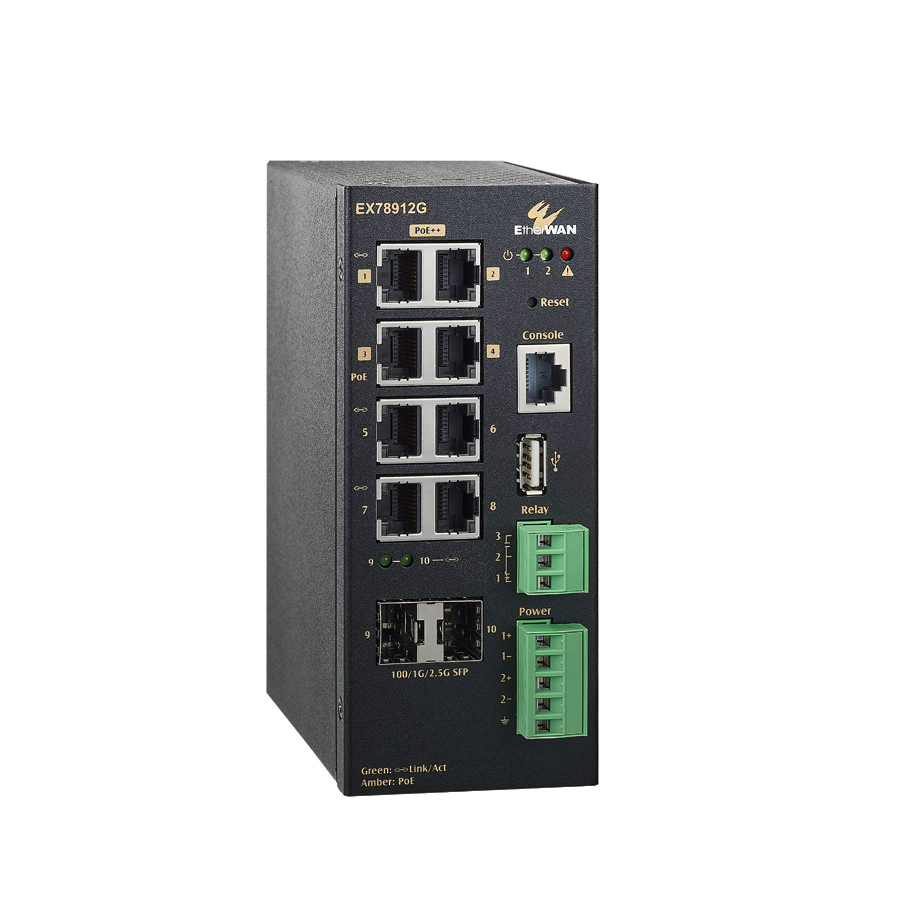

EX78900G シリーズ

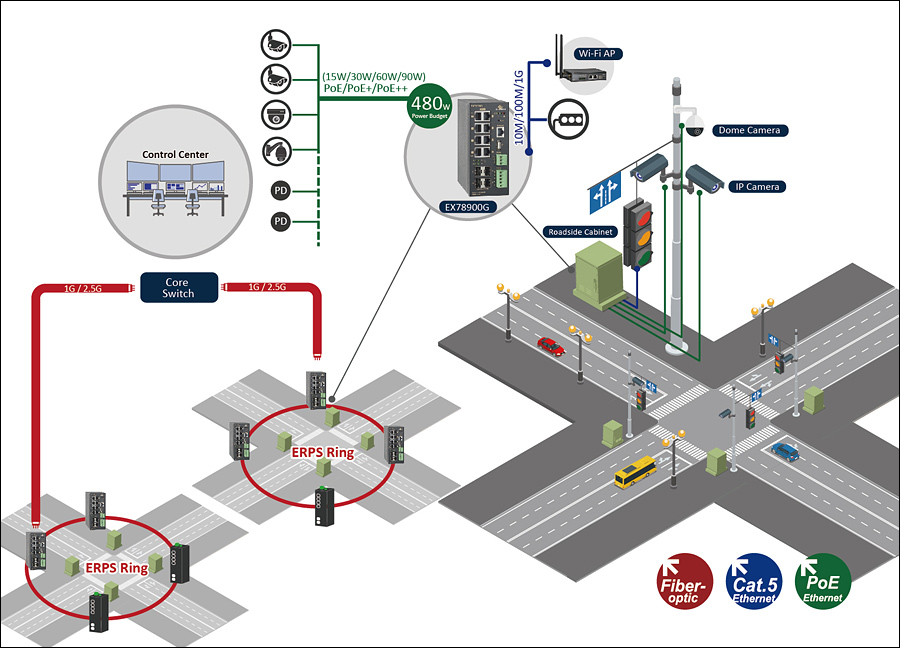

2.5GbE 高帯域幅と拡張性

• • 高帯域幅接続向けの8ポート10/100/1000BASE-T(X)
  • ファイバーコネクション用の最大4つの100/1000/2500BASE SFPアップリンクポート
  • 全二重通信で動作するフルキャパシティのスイッチング

通気性のない厳しい環境向けの産業用仕様

• • 広範囲な動作温度範囲 -40℃から75℃（-40°Fから167°F）
  • ファンレス
  • 高い耐衝撃性、熱ショック耐性、および電気ノイズ耐性

PoE 機能

• • IEEE 802.3afおよびIEEE 802.3atとの後方互換性があります
  • IEEE 802.3bt PoEにより1ポートあたり最大90Wまでの電力供給が可能、合計最大480Wパワーバジェットです
  • PoEウォッチドッグは接続されたPoEデバイスの状態を監視します

サポート

• • 技術サポート
  • ファームウェアのアップグレード
  • 永久保証

Interface

• • CLI, Telnet, Web GUI

Management

• • Firmware Upgrade
  • Configuration Backup
  • DHCP Server/Client/Snooping/Relay
  • RMON (Remote Monitoring)
  • Port Mirroring
  • NTP (Network Time Protocol) Synchronization
  • LLDP (Link Layer Discovery Protocol)
  • IPv4/IPv6
  • SNMP v1/v2c/v3

Security

• • MAC Address Filtering
  • Enable/Disable Port
  • Storm Control
  • System logging
  • Remote Authentication through RADIUS and TACACS+
  • Complex Password Support
  • Multi-User Login and Privileged Access Management
  • SSH for CLI and Telnet Security
  • SSL and HTTPS for Web Security
  • ACL (Access Control List)

Layer 2 Features

• Auto-Negotiation for Port Speed and Duplex
  • Flow Control
  • IEEE 802.3x full duplex mode
  • Back-pressure half duplex mode
• Redundant Protocols
  • IEEE 802.1D STP
  • IEEE 802.1w RSTP
  • IEEE 802.1s MSTP
  • ITU-T G.8032 Ethernet Ring
  • Protection Switch (ERPS)
• VLANs
  • IEEE 802.1Q Tag VLANs
  • GVRP
  • GMRP
• Link Aggregation
  • Static Trunk (8 groups)
  • IEEE 802.3ad LACP
• IGMP Snooping v1/v2/v3

Layer 3 Features

• IP Packet Routing
  • Maximum 512 hosts
  • Maximum 64 routes
  • Static routing
  • RIP v1/v2
  • OSPF v2

• Routing Redundancy
  • VRRP v2

Quality of Service (QoS)

• • Priority Queues: 8 Queues per Port
  • Traffic Classification Based on IEEE 802.1p CoS (Cost of Service), DSCP (Differentiated Services Code Point), WRR (Weighted Round Robin), and Strict Mode
  • Rate Limiting (Ingress/Egress)

Software Properties and Performance

• Switching Fabric
  • 36Gbps
• Forwarding Rate
  • 26.78Mpps
• Max VLANs
  • 256 (4096 VID)
• Jumbo Frame Size
  • 9KB
• MAC Table Size
  • 16K
• Packet Buffer Memory
  • 512KB (4M bits)

Interface

• Ethernet
  • 8 x 10/100/1000BASE-T(X)
  • 2 or 4 x 100/1000/2500BASE SFP
• Console
  • 1 x RJ45
• Config Backup
  • 1 x USB (Type A Connector)
• Alarm Contact
  • Relay output, current capacity 0.5A/48VDC
• LED Indicators
  • Per Unit: Power 1, Power 2
  • Per Port: Link/Activity (Green)
  • Per PoE Port: PoE Status (Amber)

Physical

• Casing Material
  • Metal
• IP Rating
  • IP30

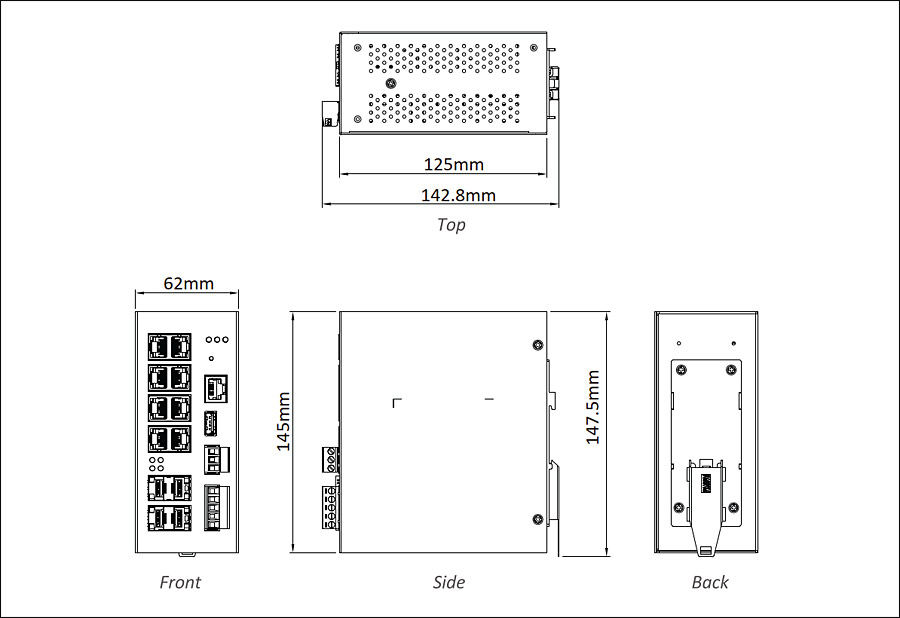

• Dimensions
  • 62 x 125 x 145mm (W x D x H)
• Weight
  • 0.75 kg (1.65 lbs)
• Installation Type
  • DIN-rail mounting

Technology

• Standards
  • IEEE 802.3 10BASE-T
  • IEEE 802.3u 100BASE-TX/100BASE-FX
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3ad link aggregation control
  • IEEE 802.3z 1000BASE-SX/1000BASE-LX
  • IEEE 802.3x full duplex and flow control
  • IEEE 802.1D STP
  • IEEE 802.1p QoS
  • IEEE 802.1Q Tag VLANs
  • IEEE 802.1s MSTP
  • IEEE 802.1w RSTP
  • IEEE 802.1x Radius
  • IEEE 802.1ab LLDP
  • IEEE 802.3az Energy-Efficient Ethernet (EEE)
  • IEEE 802.3af/at/bt Power over Ethernet
• Forward/Filtering Rate
  • 14,880pps for 10Mbps
  • 148,809pps for 100Mbps
  • 1,488,095pps for 1000Mbps
  • 3,720,238pps for 2500Mbps
• Processing Type
  • Store-and-forward
  • Auto-negotiation
  • Half-duplex back-pressure and full-duplex flow control
  • Auto MDI/MDIX
• System Memory
  • 1GB DDR3 SDRAM
• Flash Storage
  • 128MB

Environmental

• Operating Temp.
  • -40 to 75°C (-40 to 167°F)
• Storage Temp.
  • -45 to 85°C (-49 to 185°F)
• Relative Humidity
  • 5% to 95% (non-condensing)
• MTBF
  • 2,696,769 hours

Regulatory

• ISO
  • Manufactured in ISO-9001 facility
• EMI
  • FCC Part 15B Class A
  • VCCI Class A
  • EN 61000-6-4
  • EN 61000-3-2
  • EN 61000-3-3
  • EN 55032
• EMS
  • EN 61000-6-2
  • - IEC 61000-4-2 (ESD)
  • - IEC 61000-4-3 (Radiated RFI)
  • - IEC 61000-4-4 (Burst)
  • - IEC 61000-4-5 (Surge)
  • - PoE Ports: line to earth 6kV Surge
  • - IEC 61000-4-6 (Induced RFI)
  • - IEC 61000-4-8 (Magnetic field)
• Safety
  • UL 62368
• Traffic
  • NEMA TS2
• Rail
  • EN 50121-4
• Vibration
  • IEC 60068-2-6
• Shock
  • IEC 60068-2-27
• Free Fall
  • IEC 60068-2-31

Power

• Input
  • 46-57VDC Redundant (Terminal block)**
    ** Connected powered devices (PDs) power input requirements:
    IEEE 802.3 af (15W): 46 – 57 VDC
    IEEE 802.3 at (30W): 52 – 57 VDC
    IEEE 802.3 bt (Type 3: 60 Watts): 52 – 57 VDC
    IEEE 802.3 bt (Type 4: 90 Watts): 54 – 57 VDC
• Power Consumption
  • Max. 14W (without PoE)
• Power Budget (Max.)
  • For EX78912G-0BT:
    • 240 Watts
    For EX78924G-0BT & EX78922G-0BT:
    • 480 Watts up to operating temp. 70°C
    • 400 Watts up to operating temp. 75°C
• Protection
  • Reverse Polarity Protection

Warranty

• Length
  • Limited Lifetime
• Details
  • www.etherwan.com/support/warranty-policy

What's Included

• Device
  • Ethernet switch
• Cables
  • 1 Console cable
• Installation
  • DIN-Rail mounting kit
