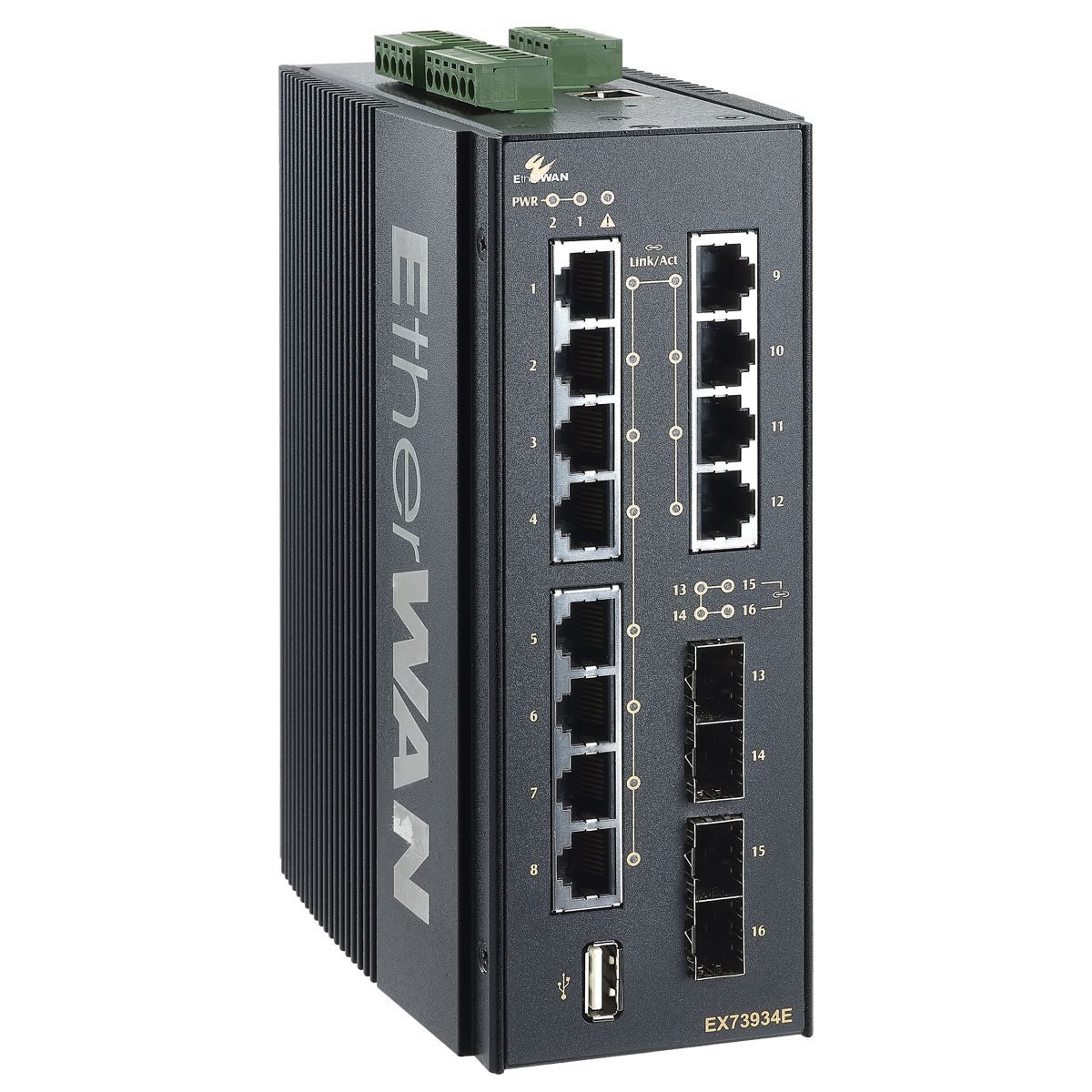

EX73900E シリーズ

広範囲動作温度対応産業用/管理型 8/12ポート 10/100/1000BASE-T(X) +2/4ポート 100/1000BASE SFP ギガビットイーサネットスイッチ

保護等級IP40

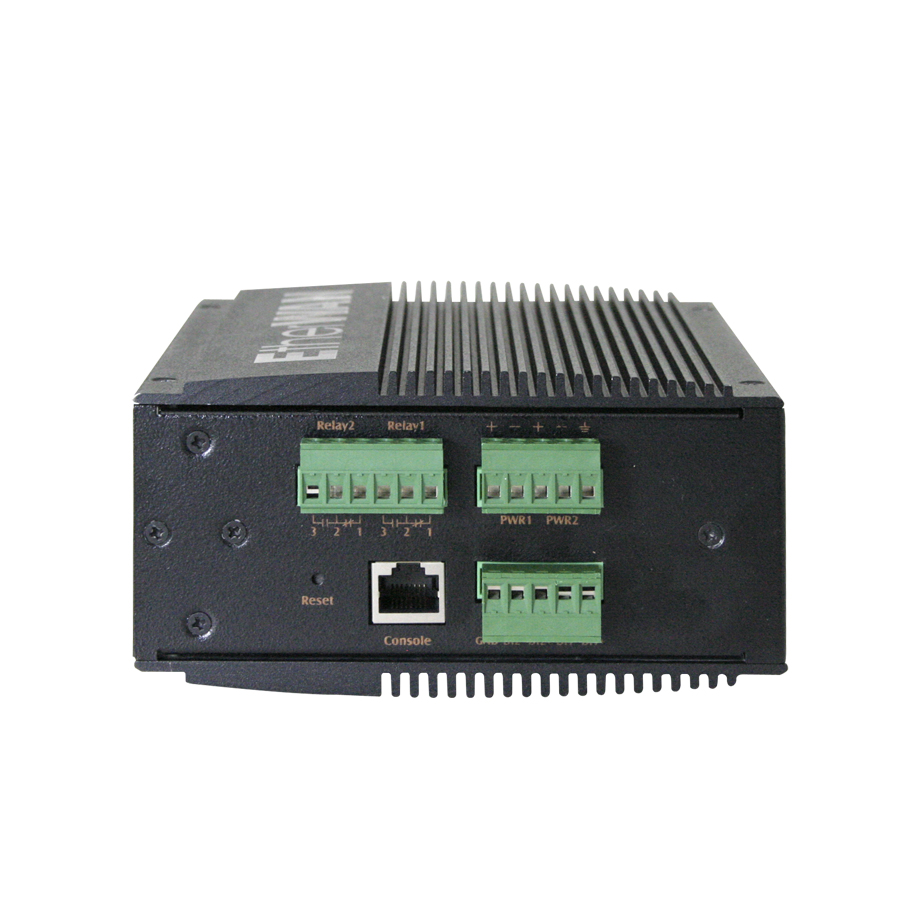

2デジタル入力と 2リレー出力装備

スタティックルート, RIP v1/v2, VRRP対応

デュアルレート SFPモジュール対応

Downloads

Datasheet QIG Manuals Firmware Visio Stencil DoC

お問い合わせ

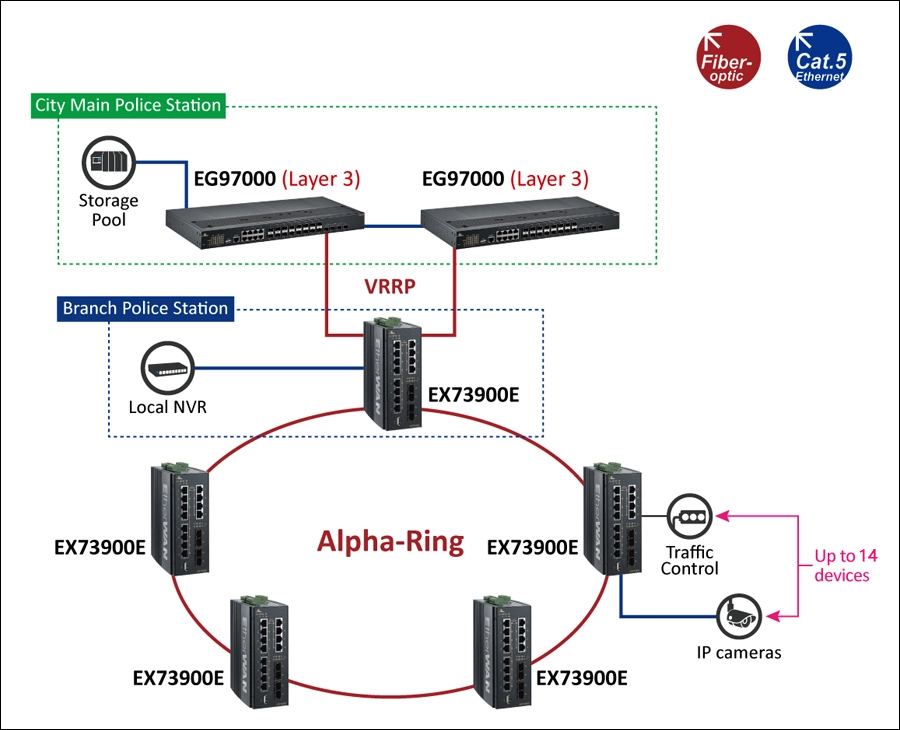

EtherWANのEX73900E シリーズは広範囲動作温度対応、DINレール型、ギガビット12ポートまで装備でき、また4つのデュアルレートSFPポートを備えています。安定した通信が不可欠な過酷環境に堅牢な管理機能を備えたハイパフォーマンスな製品です。都市インフラ、交通、変電所、セキュリティなどのネットワークに柔軟性と信頼性を提供します。

EtherWAN — "When Connectivity is Crucial."

High Bandwidth and Versatility

- 8 or 12 10/100/1000BASE-T(X) ports for High bandwidth connections
- Up to 4 Dual-rate 100/1000BASE SFP uplink ports for fiber connections
- Full capacity switching running at full duplex

Compliance

- IEC 61850-3/IEEE 1613 certified for power substations
- NEMA TS2 rated
- UL certified for safety

Hardened-Grade for Non-Ventilated & Harsh Environments

- Wide operating temperature range -40 to 75°C (-40 to 167°F)
- Fanless operation
- High impact, thermal shock, and electrical noise resistance

Management/Security Features

- Port control
- Dying gasp feature provides SNMP trap upon power off
- Configure and monitor with eVue™ and eLite™

Lite Layer 3 Functionality

- Static routing, RIP v1/v2, and OSPF support
- Redundancy with VRRP
- Reduces amount of broadcast traffic

Support

- Complimentary Technical Support
- Free Firmware Upgrades
- Limited Lifetime Warranty

Interface

- CLI, Telnet, Web GUI

Management

- Firmware upgrade
- Configuration backup
- DHCP Server/Client
- RMON (Remote Monitoring)
- Port Mirroring
- NTP (Network Time Protocol) synchronization
- LLDP (Link Layer Discovery Protocol)
- IPv4/IPv6
- SNMP v1/v2c/v3
- Modbus TCP

Security

- MAC Address filtering
- Enable/Disable port
- Storm control
- System logging
- IEEE 802.1x LAN Access control
- Remote authentication through RADIUS and TACACS+
- Complex password support
- Multi-user login and privileged access management
- SSH for CLI and Telnet security
- SSL and HTTPS for web security
- ACL (Access Control List, up to 4096 entries)

Layer 2 Features

Auto-negotiation for port speed and duplex
- Flow Control
- IEEE 802.3x full duplex mode
- Back-pressure half duplex mode
Redundant Protocols
- IEEE 802.1D STP
- IEEE 802.1w RSTP
- IEEE 802.1s MSTP
- EtherWAN's Alpha-Ring network fault recovery
VLANs
- IEEE 802.1Q Tag VLANs
- GVRP
- GMRP
Link Aggregation
- Static Trunk (4 groups)
- IEEE 802.3ad LACP
IGMP Snooping v1/v2/v3

Layer 3 Features

IP Packet Routing
- Maximum number of routes in hardware: 64 entries
- Static Routing
- RIP v1/v2
- OSPF v2
Routing Redundancy
- VRRP

Quality of Service (QoS)

- Priority Queues: 8 queues per port
- Traffic classification based on IEEE 802.1p CoS (Cost of Service), DSCP (Differentiated Services Code Point), WRR (Weighted Round Robin), and strict mode
- Rate Limiting (Ingress/Egress)

Software Properties and Performance

Switching Fabric
- 32Gbps
Forwarding Rate
- 23.5Mpps
Total VLAN Entries
- 256 (4096 VID)
Jumbo Frame Size
- 9KB
MAC Table Size
- 16K
Packet Buffer Memory
- 12M bits

Interface

Ethernet
- 8 or 12 x 10/100/1000BASE-T(X)
- 2 or 4 x 100/1000BASE SFP
Console
- 1 x RJ45
Config Backup
- 1 x USB (Type A Connector)
Digital Input
- 2 x Digital Input
- Wet Contact: 0-3V for State 0; 13-30V for State 1; Max Input Current: 8mA
- Dry Contact: Logic Level 1–Close to GND; Logic Level 0-Open
Alarm Contact
- 2 x Relay output, current capacity 0.6A/30VDC
LED Indicators
- Per Unit: Power 1, Power 2, Alarm
- Per Port: Link/Activity

Power

Input
- 12-48VDC Redundant (Terminal block)
Power Consumption
- 20W Max
Protection
- Reverse Polarity Protection
- Overload Current Protection

Regulatory

ISO
- Manufactured in ISO-9001 facility
EMI
- FCC Part 15B Class A
- VCCI Class A
- EN 61000-6-4
- EN 61000-3-2
- EN 61000-3-3
EMS
- EN 61000-6-2
- EN 61000-4-2 (ESD)
- EN 61000-4-3 (Radiated RFI)
- EN 61000-4-4 (Burst)
- EN 61000-4-5 (Surge)
- EN 61000-4-6 (Induced RFI)
- EN 61000-4-8 (Magnetic field)
Safety
- UL 61010
Traffic
- NEMA TS2
Rail
- EN 50121-4
Power Substation
- IEC 61850-3/IEEE 1613
Vibration
- IEC 60068-2-6
Shock
- IEC 60068-2-27
Free Fall
- FED STD 101C Method 5007.1

Technology

Standards
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX/100BASE-FX
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3ad link aggregation control
- IEEE 802.3z 1000BASE-SX/1000BASE-LX
- IEEE 802.3x full duplex and flow control
- IEEE 802.1D STP
- IEEE 802.1p QoS
- IEEE 802.1Q Tag VLANs
- IEEE 802.1s MSTP
- IEEE 802.1w RSTP
- IEEE 802.1x PNAC
- IEEE 802.1ab LLDP
- IEEE 1588v2 PTP
Forward/Filtering Rate
- 14,880pps for 10Mbps
- 148,810pps for 100Mbps
- 1,488,100pps for 1000Mbps
Processing Type
- Store-and-forward
- Auto-negotiation
- Half-duplex back-pressure and full-duplex flow control
- Auto MDI/MDIX
System Memory
- 2Gb DDR3 SDRAM
Flash Storage
- 1Gb

Physical

Casing Material
- Aluminum
IP Rating
- IP40
Dimensions

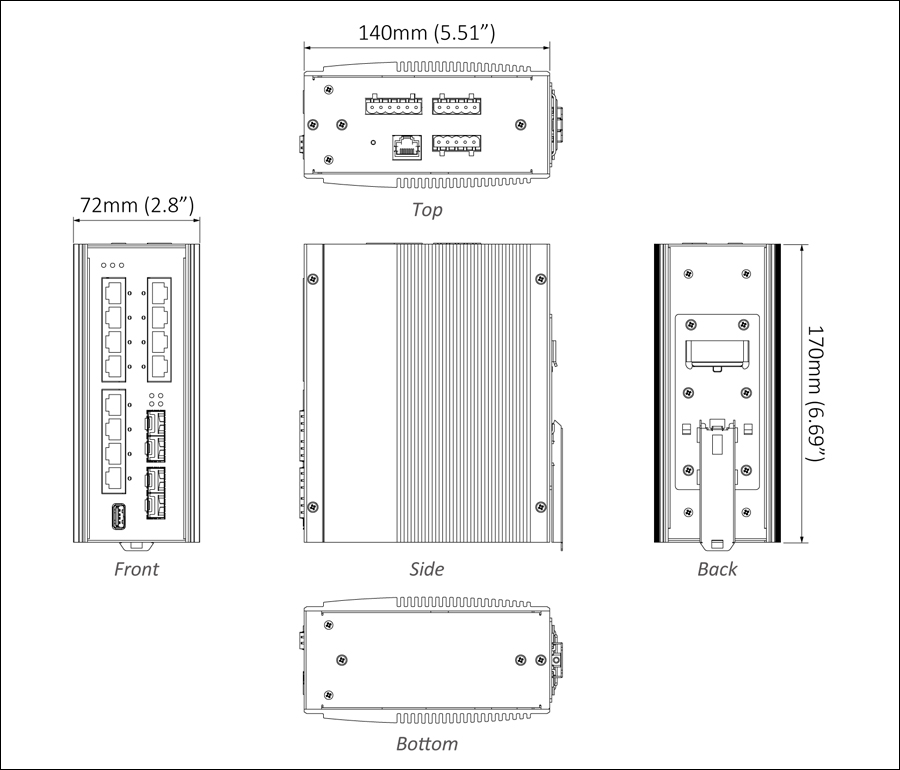

- 72 x 140 x 170mm (W x D x H)
  2.8" x 5.5" x 6.7"
Weight
- 1.4kg (3.08lbs)
Installation Type
- DIN-rail mounting

Environmental

Operating Temp.
- -40 to 75°C (-40 to 167°F)
Storage Temp.
- -45 to 85°C (-49 to 185°F)
Relative Humidity
- 5% to 95% (non-condensing)

Warranty

Length
- Limited Lifetime
Details
- www.etherwan.com/support/warranty-policy

What's Included

Device
- Ethernet Switch
Cables
- 1 Console Cable
Installation
- Mounting brackets, screws
Documentation
- Quick install guide

Network Management	eVue™ Network Configuration and Monitoring Tool
Network Discovery	eLite™ Network Discovery and IP Configuration Tool

Model

EX73934E-0VB	12-port 10/100/1000BASE-T(X) + 4-port 100/1000BASE SFP
EX73924E-0VB	8-port 10/100/1000BASE-T(X) + 4-port 100/1000BASE SFP
EX73922E-0VB	8-port 10/100/1000BASE-T(X) + 2-port 100/1000BASE SFP

Accessories

Hardened 100BASE SFP Modules	www.etherwan.com/products/sfp-fiber-transceiver
Hardened Gigabit SFP Modules	www.etherwan.com/products/sfp-fiber-transceiver
DIN-Rail Power Supplies	www.etherwan.com/products/din-rail-power-supply (*)
*Recommended Power Supply	EX41-145046 Power Supply 45W 12VDC with Open Wire
