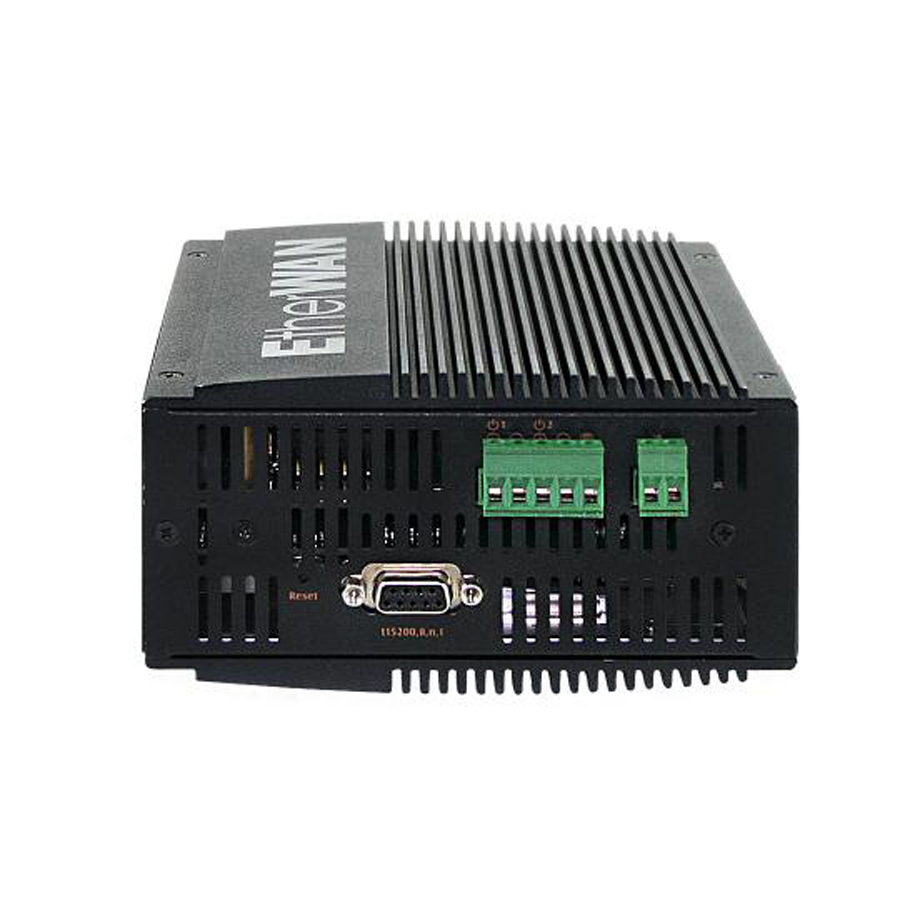

EX83304 系列

Get a Quote
IEC 61850-3/IEEE 1613 Lite L3 12埠10/100BASE-TX +4埠Gigabit 強固級網管型 乙太網路交換器
SFP
Fanless
Wide Temperature
IEC 61850
IEEE 1613
NEMA-TS2
UL 61010
UL
DIN-Rail鋁軌設計，最多提供16埠網路埠
提供最多4埠Gigabit SFP光纖埠
抗ESD靜電及突波保護
Related Links
Introduction to Redundant Pairs
Related Products
IEC 61850-3/IEEE 1613 乙太網路交換器
(9)
Redundant Pair Technology
(5)
Layer 3 乙太網路交換器
(14)
Downloads
DatasheetQIGManualsFirmwareVisio Stencil
訂購諮詢

EX83304 系列是一款專為嚴峻戶外環境打造的強固級乙太網路交換器，提供高達 12 個 10/100BASE-TX + 4 個 Gigabit SFP 埠。它搭配益網獨家技術 Alpha-Ring 環狀網路備援機制，可以在網路發生斷線時迅速啟動備援機制，並於 15 毫秒內恢復連線。此外，它還具備完整的管理功能，包括 Port Security、IGMP Snooping、VLANs、GARP 協定、Link Aggregation 和 ACL，使用者可以透過網頁瀏覽 Telnet、SSH、SNMP、RMON、TFTP 和 RS-232 Console 管理介面。

EX83304 系列支援多種功能，例如 MSTP、QoS、靜態路由和 RIP 路由協定等，可以實現更靈活和可靠的網路路由，控制網路流量，提高網路效能和安全性。此外，它符合 IEC 61850 & IEEE 1613 標準，可以在高 EMI 環境及 -40 到 75℃ 寬溫環境下穩定運作，支援 IPv6，讓使用者可以適應未來網路的發展趨勢。

EtherWAN — "When Connectivity is Crucial."

高頻寬彈性配置

    • 8 或 12 個 10/100TX ⾼速連接埠
    • 多達 4 個 Gigabit 光纖上⾏鏈路連接埠
    • 全雙⼯運⾏的全容量交換

認證規範

    • IEC 61850-3 / IEEE 1613 變電站認證
    • NEMA TS2 規範
    • UL 安全認證

強固等級適⽤於不通風的惡劣環境

    •  -40 ⾄ 75°C (-40 ⾄ 167°F) 的寬⼯作溫度範圍
    • 無風扇設計
    • ⾼衝擊、耐熱和電氣⼲擾抵抗⼒

管理/安全功能

    • 連接埠控制
    • 支援 RADIUS 優化網路安全機制
    • 使⽤ eVue ™ 和 eLite ™ 設定和監控

簡配第 3 層網管功能

    • 靜態路由、RIP v1/v2 , 和 OSFP
    • VRRP 虛擬路由器備援協定
    • 廣播流量減輕

服務支援

    • 提供技術支援
    • 免費韌體升級和通知
    • 有限終⾝保固

Management

    • Interface
      • CLI, Telnet and Web Browser
      • SNMP v1/v2c/v3
    • Firmware and configuration upgrade and backup via TFTP
    • Supports DHCP Server/Client
    • RMON (Remote Monitoring): group 1, 2, 3, 9
    • Port mirroring: TX/RX and both
    • NTP (Network Time Protocol) time synchronization
    • IEEE 802.1ab LLDP (Link Layer Discovery Protocol)
    • IPv4/IPv6

Security

    • MAC address filtering
    • Enable/Disable port
    • Storm control (Broadcast and multicast types)
    • IEEE 802.1x LAN access control
    • Remote authentication through RADIUS and TACACS+
    • SSH for CLI and Telnet security
    • SSL for web security
    • System log (Remote/Local)
    • ACL
    • Multi-level user account/password against unauthorized configuration

Layer 2 Features

  • Auto-negotiation for port speed and duplex mode
  • Flow Control
    • IEEE 802.3x full duplex mode
    • Back-Pressure half duplex mode
  • Redundant Protocol
    • IEEE 802.1D Spanning Tree Protocol (STP)
    • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
    • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
    • EtherWAN's Alpha-Ring network fault recovery
  • VLANs
    • IEEE 802.1Q Tag VLANs (128 groups, 4096 VID)
    • GVRP (GARP VLAN Registration Protocol)
    • GMRP (GARP Multicast Registration Protocol)
  • Link Aggregation
    • Static Trunk (4 groups, support MAC base)
    • IEEE 802.3ad Link Aggregation Control Protocol
  • IGMP Snooping
    • IGMP Snooping v1/v2/v3

Quality of Service (QoS)

    • Priority Queues: 4 queues per port
    • Traffic classification based on IEEE 802.1p CoS, DSCP, WRR (Weighted Round Robin) and strict mode
    • Rate Limiting (Ingress/Egress)

Layer 3 Features

  • IP Packet Routing
    • Maximum number of routes in hardware: 64 entries
    • OSPF
    • RIP v1/v2
    • Static routing
  • Routing Redundancy
    • VRRP

Technology

  • Standards
    • IEEE 802.3 10BASE-T
    • IEEE 802.3u 100BASE-TX/100BASE-FX
    • IEEE 802.3x Full duplex and flow control
    • IEEE 802.1p QoS
    • IEEE 802.1Q Tag VLANs
    • IEEE 802.1w RSTP
    • IEEE 802.1x Port-based Network Access Control
  • Forward and Filtering Rate
    • 14,880pps for 10Mbps
    • 148,810pps for 100Mbps
    • 1,488,100pps for 1000Mbps
  • Packet Buffer Memory
    • 12M bits
  • Processing Type
    • Store-and-Forward
    • Auto Negotiation
    • Half-duplex back-pressure and IEEE 802.3x full-duplex flow control
    • Auto MDI/MDIX
  • Address Table Size
    • 16K MAC addresses

Interface

  • Ethernet Port
    • 10/100BASE-TX: 8 or 12 ports
    • Gigabit SFP: 2/4 ports
  • Console Port
    • Port: One DB9 RS-232 port
  • Alarm Contact
    • One relay output with current 0.6A/30VDC
  • LED Indicators
    • Per Unit: Power 1, Power 2
    • Per Port: Link/Activity (Green)

Environment

  • Operating Temperature
    • -40 to 75°C (-40 to 167°F)
        Tested @ -40 to 85°C (-40 to 185°F)
  • Storage Temperature
    • -45 to 85°C (-49 to 185°F)
  • Ambient Relative Humidity
    • 5% to 95% (non-condensing)

Power

  • Input
    • Redundant power inputs:Terminal Block: 12-48VDC
  • Power Consumption
    • 17.28W Max. 1.44A@12VDC, 0.67A@24VDC
  • Protection
    • Reverse polarity protection

Mechanical

  • Casing
    • Aluminum Case
    • IP30

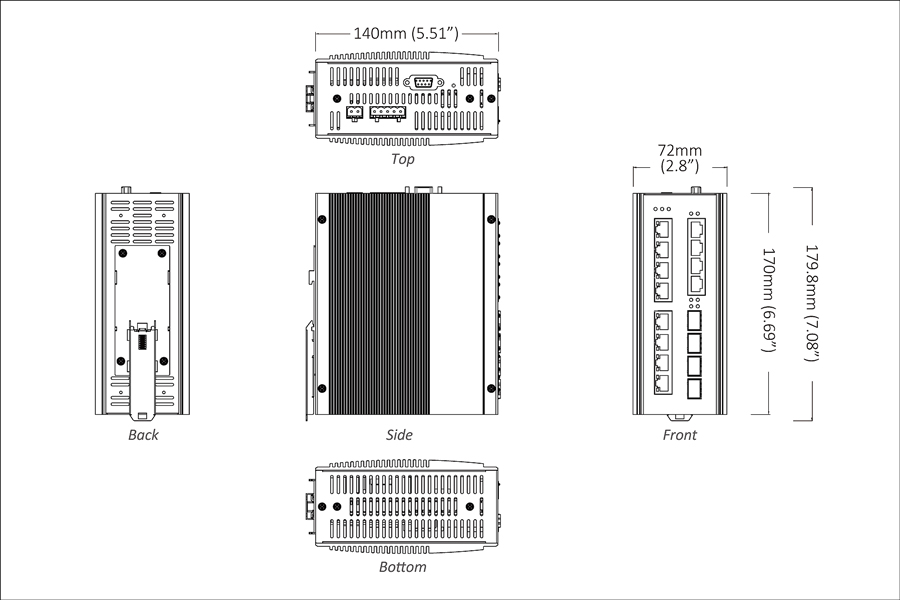

  • Dimensions
    • 72 x 140 x 170mm (W x D x H) (2.8" x 5.5" x 6.7")
  • Weight
    • 1.4Kg (3.09lbs.)
  • Installation
    • DIN-Rail

Regulatory Approvals

  • ISO
    • Manufactured in an ISO 9001 facility
  • Safety
    • UL 61010
  • EMI
    • FCC Part 15B Class A
    • VCCI Class A
    • EN 61000-6-4
    • EN 61000-3-2
    • EN 61000-3-3
  • EMS
    • EN 61000-6-2
      • EN 61000-4-2 (ESD Standards)
      • EN 61000-4-3 (Radiated RFI Standards)
      • EN 61000-4-4 (Burst Standards)
      • EN 61000-4-5 (Surge Standards)
      • EN 61000-4-6 (Induced RFI Standards)
      • EN 61000-4-8 (Magnetic Field Standards)
  • Environmental Test Compliance
    • IEC 60068-2-6 Fc (Vibration)
    • IEC 60068-2-27 Ea (Shock)
    • FED STD 101C Method 5007.1 (Free fall w/package)
  • Industrial Compliance
    • IEEE 61850-3/IEEE 1613
    • NEMA TS2

Model

EX83304-0VB12-Port 10/100BASE-TX +4-port Gigabit SFP Hardened Managed Ethernet Switch
EX83204-0VB8-Port 10/100BASE-TX +4-Port Gigabit SFP Hardened Managed Ethernet Switch
EX83202-0VB8-Port 10/100BASE-TX +2-Port Gigabit SFP Hardened Managed Ethernet Switch

* DIN-Rail mounting kit included.

Optional Accessories

HDR-30-2430W/1.5A DIN-Rail 24VDC Industrial Power Supply
HDR-60-2460W/2.5A DIN-Rail 24VDC Industrial Power Supply
EDR-75-2475W/3.2A DIN-Rail 24VDC Industrial Power Supply
EB-232Configuration Backup and Restoration Tool for EX83304 switch with firmware 2.02.2 or above

EX83304 系列是一款專為嚴峻戶外環境打造的強固級乙太網路交換器，提供高達 12 個 10/100BASE-TX + 4 個 Gigabit SFP 埠。它搭配益網獨家技術 Alpha-Ring 環狀網路備援機制，可以在網路發生斷線時迅速啟動備援機制，並於 15 毫秒內恢復連線。此外，它還具備完整的管理功能，包括 Port Security、IGMP Snooping、VLANs、GARP 協定、Link Aggregation 和 ACL，使用者可以透過網頁瀏覽 Telnet、SSH、SNMP、RMON、TFTP 和 RS-232 Console 管理介面。

EX83304 系列支援多種功能，例如 MSTP、QoS、靜態路由和 RIP 路由協定等，可以實現更靈活和可靠的網路路由，控制網路流量，提高網路效能和安全性。此外，它符合 IEC 61850 & IEEE 1613 標準，可以在高 EMI 環境及 -40 到 75℃ 寬溫環境下穩定運作，支援 IPv6，讓使用者可以適應未來網路的發展趨勢。

EtherWAN — "When Connectivity is Crucial."

高頻寬彈性配置

    • 8 或 12 個 10/100TX ⾼速連接埠
    • 多達 4 個 Gigabit 光纖上⾏鏈路連接埠
    • 全雙⼯運⾏的全容量交換

認證規範

    • IEC 61850-3 / IEEE 1613 變電站認證
    • NEMA TS2 規範
    • UL 安全認證

強固等級適⽤於不通風的惡劣環境

    •  -40 ⾄ 75°C (-40 ⾄ 167°F) 的寬⼯作溫度範圍
    • 無風扇設計
    • ⾼衝擊、耐熱和電氣⼲擾抵抗⼒

管理/安全功能

    • 連接埠控制
    • 支援 RADIUS 優化網路安全機制
    • 使⽤ eVue ™ 和 eLite ™ 設定和監控

簡配第 3 層網管功能

    • 靜態路由、RIP v1/v2 , 和 OSFP
    • VRRP 虛擬路由器備援協定
    • 廣播流量減輕

服務支援

    • 提供技術支援
    • 免費韌體升級和通知
    • 有限終⾝保固

Management

    • Interface
      • CLI, Telnet and Web Browser
      • SNMP v1/v2c/v3
    • Firmware and configuration upgrade and backup via TFTP
    • Supports DHCP Server/Client
    • RMON (Remote Monitoring): group 1, 2, 3, 9
    • Port mirroring: TX/RX and both
    • NTP (Network Time Protocol) time synchronization
    • IEEE 802.1ab LLDP (Link Layer Discovery Protocol)
    • IPv4/IPv6

Security

    • MAC address filtering
    • Enable/Disable port
    • Storm control (Broadcast and multicast types)
    • IEEE 802.1x LAN access control
    • Remote authentication through RADIUS and TACACS+
    • SSH for CLI and Telnet security
    • SSL for web security
    • System log (Remote/Local)
    • ACL
    • Multi-level user account/password against unauthorized configuration

Layer 2 Features

  • Auto-negotiation for port speed and duplex mode
  • Flow Control
    • IEEE 802.3x full duplex mode
    • Back-Pressure half duplex mode
  • Redundant Protocol
    • IEEE 802.1D Spanning Tree Protocol (STP)
    • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
    • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
    • EtherWAN's Alpha-Ring network fault recovery
  • VLANs
    • IEEE 802.1Q Tag VLANs (128 groups, 4096 VID)
    • GVRP (GARP VLAN Registration Protocol)
    • GMRP (GARP Multicast Registration Protocol)
  • Link Aggregation
    • Static Trunk (4 groups, support MAC base)
    • IEEE 802.3ad Link Aggregation Control Protocol
  • IGMP Snooping
    • IGMP Snooping v1/v2/v3

Quality of Service (QoS)

    • Priority Queues: 4 queues per port
    • Traffic classification based on IEEE 802.1p CoS, DSCP, WRR (Weighted Round Robin) and strict mode
    • Rate Limiting (Ingress/Egress)

Layer 3 Features

  • IP Packet Routing
    • Maximum number of routes in hardware: 64 entries
    • OSPF
    • RIP v1/v2
    • Static routing
  • Routing Redundancy
    • VRRP

Technology

  • Standards
    • IEEE 802.3 10BASE-T
    • IEEE 802.3u 100BASE-TX/100BASE-FX
    • IEEE 802.3x Full duplex and flow control
    • IEEE 802.1p QoS
    • IEEE 802.1Q Tag VLANs
    • IEEE 802.1w RSTP
    • IEEE 802.1x Port-based Network Access Control
  • Forward and Filtering Rate
    • 14,880pps for 10Mbps
    • 148,810pps for 100Mbps
    • 1,488,100pps for 1000Mbps
  • Packet Buffer Memory
    • 12M bits
  • Processing Type
    • Store-and-Forward
    • Auto Negotiation
    • Half-duplex back-pressure and IEEE 802.3x full-duplex flow control
    • Auto MDI/MDIX
  • Address Table Size
    • 16K MAC addresses

Interface

  • Ethernet Port
    • 10/100BASE-TX: 8 or 12 ports
    • Gigabit SFP: 2/4 ports
  • Console Port
    • Port: One DB9 RS-232 port
  • Alarm Contact
    • One relay output with current 0.6A/30VDC
  • LED Indicators
    • Per Unit: Power 1, Power 2
    • Per Port: Link/Activity (Green)

Environment

  • Operating Temperature
    • -40 to 75°C (-40 to 167°F)
        Tested @ -40 to 85°C (-40 to 185°F)
  • Storage Temperature
    • -45 to 85°C (-49 to 185°F)
  • Ambient Relative Humidity
    • 5% to 95% (non-condensing)

Power

  • Input
    • Redundant power inputs:Terminal Block: 12-48VDC
  • Power Consumption
    • 17.28W Max. 1.44A@12VDC, 0.67A@24VDC
  • Protection
    • Reverse polarity protection

Mechanical

  • Casing
    • Aluminum Case
    • IP30
  • Dimensions
    • 72 x 140 x 170mm (W x D x H) (2.8" x 5.5" x 6.7")
  • Weight
    • 1.4Kg (3.09lbs.)
  • Installation
    • DIN-Rail

Regulatory Approvals

  • ISO
    • Manufactured in an ISO 9001 facility
  • Safety
    • UL 61010
  • EMI
    • FCC Part 15B Class A
    • VCCI Class A
    • EN 61000-6-4
    • EN 61000-3-2
    • EN 61000-3-3
  • EMS
    • EN 61000-6-2
      • EN 61000-4-2 (ESD Standards)
      • EN 61000-4-3 (Radiated RFI Standards)
      • EN 61000-4-4 (Burst Standards)
      • EN 61000-4-5 (Surge Standards)
      • EN 61000-4-6 (Induced RFI Standards)
      • EN 61000-4-8 (Magnetic Field Standards)
  • Environmental Test Compliance
    • IEC 60068-2-6 Fc (Vibration)
    • IEC 60068-2-27 Ea (Shock)
    • FED STD 101C Method 5007.1 (Free fall w/package)
  • Industrial Compliance
    • IEEE 61850-3/IEEE 1613
    • NEMA TS2

Model

EX83304-0VB12-Port 10/100BASE-TX +4-port Gigabit SFP Hardened Managed Ethernet Switch
EX83204-0VB8-Port 10/100BASE-TX +4-Port Gigabit SFP Hardened Managed Ethernet Switch
EX83202-0VB8-Port 10/100BASE-TX +2-Port Gigabit SFP Hardened Managed Ethernet Switch

* DIN-Rail mounting kit included.

Optional Accessories

HDR-30-2430W/1.5A DIN-Rail 24VDC Industrial Power Supply
HDR-60-2460W/2.5A DIN-Rail 24VDC Industrial Power Supply
EDR-75-2475W/3.2A DIN-Rail 24VDC Industrial Power Supply
EB-232Configuration Backup and Restoration Tool for EX83304 switch with firmware 2.02.2 or above
