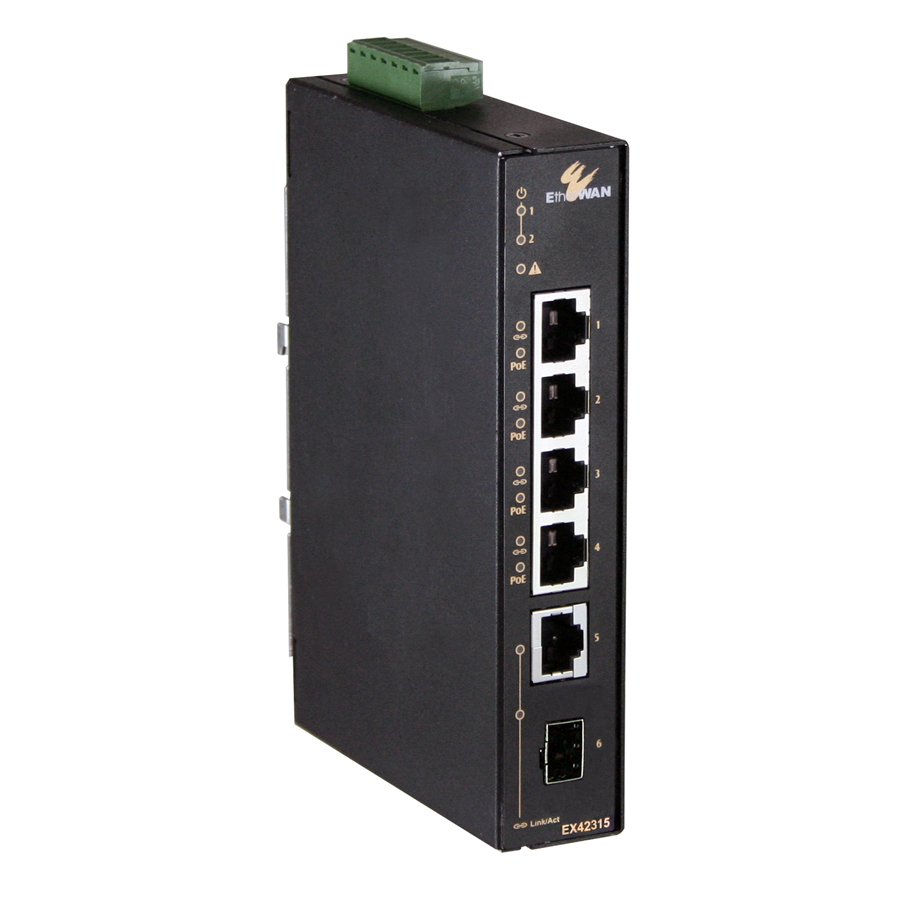

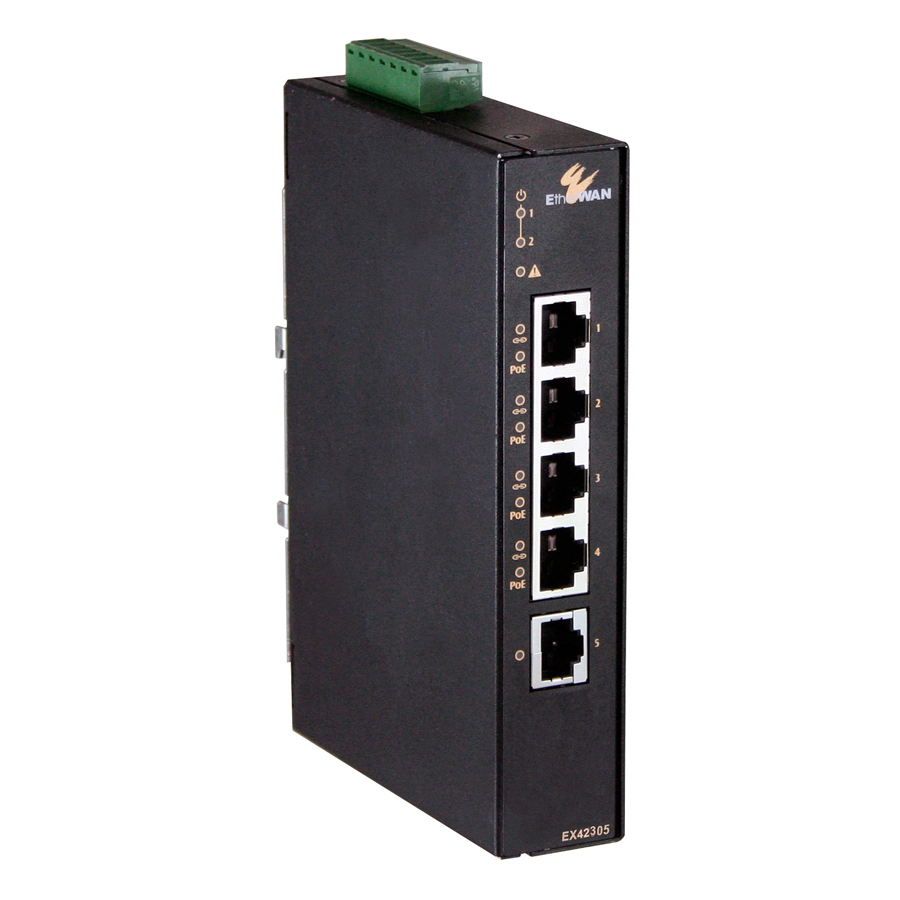

EX42300 系列

PoE連接

• • 1-4埠支援IEEE 802.3at PoE供電標準，最高每埠支援30W

符合Energy Efficient Ethernet (EEE)

• • 支援IEEE 802.3az標準

光纖介面連接

• • 最高支援1個1000BASE-FX埠，彈性搭配SFP

技術

• • 標準
  • IEEE 802.3 10BASE-T
  • IEEE 802.3u 100BASE-TX/100BASE-FX
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3z 1000BASE-SX/1000BASE-LX
  • IEEE 802.3x Full duplex flow control
  • IEEE 802.3az Energy Efficient Ethernet
  • IEEE 802.1p Quality of Service (QoS)
  • IEEE 802.3af/at Power over Ethernet (PoE)
• • Forward and Filtering Rate
  • 14,880pps for 10Mbps
  • 148,810pps for 100Mbps
  • 1,488,100pps for 1000Mbps
• • 緩衝記憶體封包
  • 1M bits
• • 傳輸型式
  • Store-and-Forward
  • Auto Negotiation
  • Half-duplex back-pressure and IEEE 802.3x full-duplex flow control
  • Auto MDI/MDIX
• • 巨大封包
  • 10K bytes
• • MAC地址表
  • 8192 MAC addresses

介面

• • 乙太網路埠
  • 10/100BASE-TX: 4 ports
  • 10/100/1000BASE-T: 1 port
  • 1000BASE-X: 0 or 1 port
• • LED 指示燈號
  • Per Unit: Power 1 (Green), Power 2 (Green), Alarm (Red)
  • Per Port: 10/100M (Green), 1000M (Amber)
  • Per PoE Port: PoE Status (Amber)
• • DIP Switches
  • Enable/Disable Port fault alarm
  • Enable/Disable Broadcast Storm Protection
  • Enable/Disable Jumbo Frame
• • Alarm Contact
  • One relay output with current 1A/250VAC
  • Supports normal open

環境

• • 工作溫度
  • -40 to 75°C (-40 to 167°F);
      Tested @ -40 to 85°C (-40 to 185°F)
• • 儲存溫度
  • -40 to 85°C (-40 to 185°F)
• • 工作濕度
  • 5% to 95% (non-condensing)

電源

• • 輸入電壓
  • 18-57VDC
• • 電力功耗
  • Device: Max. 7W (Without PoE)
  • PoE Power Budget: 120W
• • PoE Technology
  • Alternative A
      Pins 1/2(+), 3/6(-)
• • Protection
  • Reverse polarity protection

機構

• • 機殼
  • 金屬材質
  • IP30

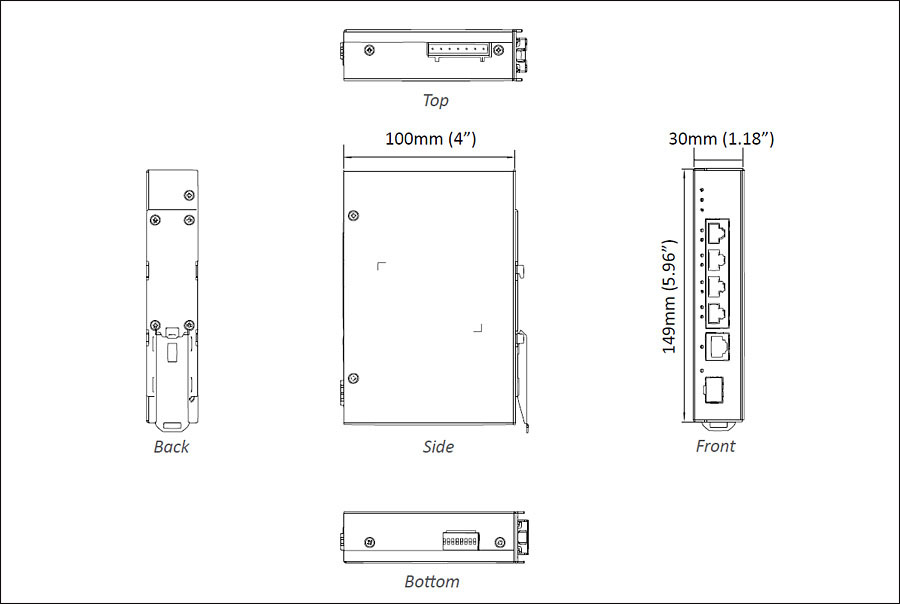

• • 尺寸
  • 30 x 100 x 149mm (W x D x H)
      (1.18" x 4" x 5.96")
• • 重量
  • 0.34Kg (0.75lb.)
• • 安裝方式
  • DIN-Rail

通過認證

• • ISO
  • Manufactured in an ISO 9001 facility
• • Safety
  • UL 60950
  • UL 61010 (EX42305/EX42315-V only)
• • EMI
  • FCC Part 15B Class A
  • VCCI Class A
  • EN 61000-6-4
  • EN 61000-3-2
  • EN 61000-3-3
  • EN 55022 Class A
• • EMS
  • EN 61000-6-2
    • -EN 61000-4-2 (ESD Standards)
    • -EN 61000-4-3 (Radiated RFI Standards)
    • -EN 61000-4-4 (Burst Standards)
    • -EN 61000-4-5 (Surge Standards)
    • -EN 61000-4-6 (Induced RFI Standards)
    • -EN 61000-4-8 (Magnetic Field Standards)
• • Environmental Test Compliances
  • IEC 60068-2-6 Fc (Vibration)
  • IEC 60068-2-27 Ea (Shock)
  • FED STD 101C Method 5007.1 (Free fall w/package)
