EX32900 系列

Discontinued
工業級非網管 5-8埠10/100/1000BASE-T +1埠1000BASE-X Gigabit 乙太網路交換器
Fanless
UL 60950
輕巧型、全Gigabit乙太網路交換器
工業等級,支援鋁軌式安裝
彈性光纖介面選擇(SC/ST/WDM),支援遠距離傳輸
訂購諮詢
本產品已經停產,請點選 此處 尋找替代產品。

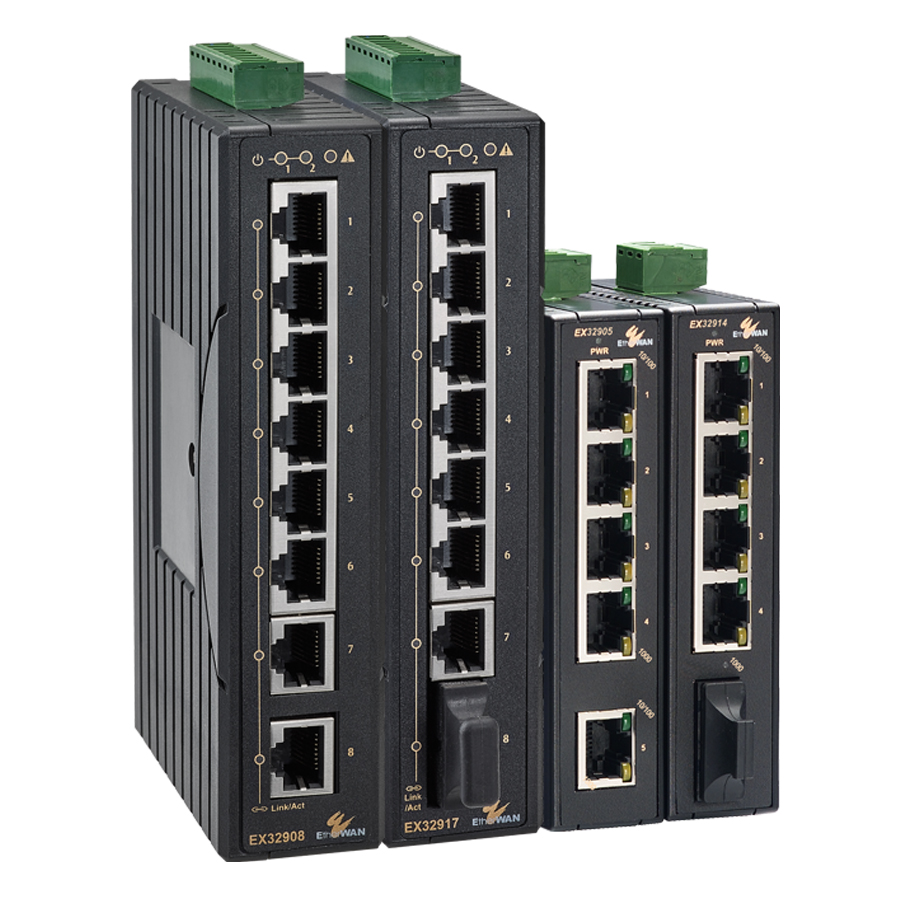

EX32900系列為輕巧型非網管鋁軌式機種,5埠或8埠工業級乙太網路交換器,可視使用需求挑選Gigabit乙太網路連接埠或Gigabit RJ45網路埠搭配1個Gigabit光纖埠之組合來支援長距離傳輸。

EX32900系列雖屬非網管機型,但支援Jumbo Frame、full wire speed throughput、QoS support,並符合eco-friendly IEEE 802.3az EEE (Energy Efficient Ethernet)標準。EX32900系列交換器提供12-48VDC備援雙電源輸入、具備斷線告警機制,採EMI/EMS防護等級設計,適用於小規模但分布廣泛的各類應用如工廠自動化、智慧交通及IP監控等應用。

EtherWAN — "When Connectivity is Crucial."

工業等級設計

» 操作溫度(-10到60°C)
» 支援鋁軌式安裝

支援Jumbo Frame

» 最高支援10K bytes (EX32905/EX32914系列)
» 最高支援9720 bytes (EX32908/EX32917系列)

光纖介面連接

» 最高支援1個1000BASE-FX埠,彈性搭配SC、ST組合

高可靠性能

» 無風扇設計
» 無風扇設計

技術

標準

  • • IEEE 802.3 10BASE-T
  • • IEEE 802.3u 100BASE-TX/100BASE-FX
  • • IEEE 802.3ab 1000BASE-T
  • • IEEE 802.3z 1000BASE-SX/1000BASE-LX
  • • IEEE 802.3x Full duplex flow control
  • • IEEE 802.3az Energy Efficient Ethernet
  • • IEEE 802.1p Quality of Service (QoS)

Forward and Filtering Rate
  • • 14,880pps for 10Mbps
  • • 148,810pps for 100Mbps
  • • 1,488,100pps for 1000Mbps

緩衝記憶體封包
  • • EX31905/EX32914: 1M bits
  • • EX32908/EX32917: 192KB

傳輸形式
  • • Store-and-Forward
  • • Auto Negotiation
  • • Half-duplex back-pressure and IEEE 802.3x full-duplex flow control
  • • Auto MDI/MDIX

巨大封包
  • • EX32905/EX32914: 10K bytes
  • • EX32908/EX32917: 9720 bytes

MAC地址表
  • • EX32905/EX32914: 8K MAC addresses
  • • EX32908/EX32917: 4K MAC addresses

Broadcast Storm Protection Threshold (EX32908/EX32917 only)
  • • Limit 15000 fps@64 frame size, 600 fps@1518 frame size.

電源

輸入電壓

  • • 12-48VDC

電力供耗
  • • 6.5W Max. 0.25A@24VDC

Protection
  • • Reverse polarity protection

機構

機殼

  • • 塑膠外殼
  • • IP30

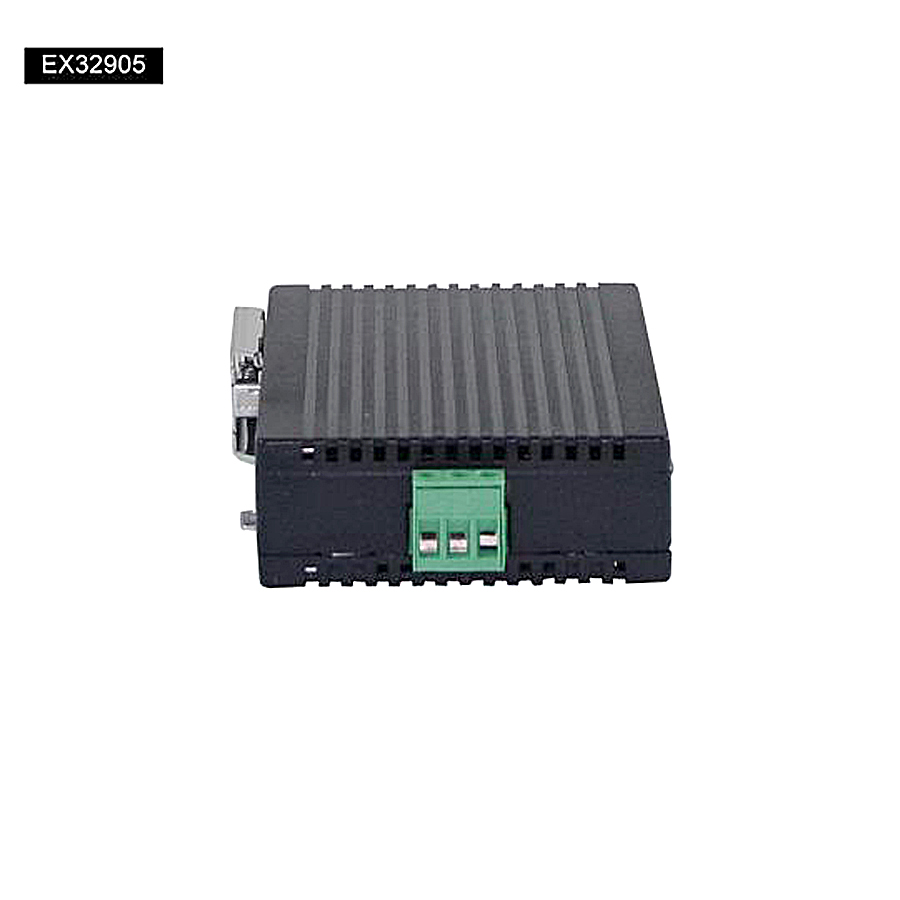

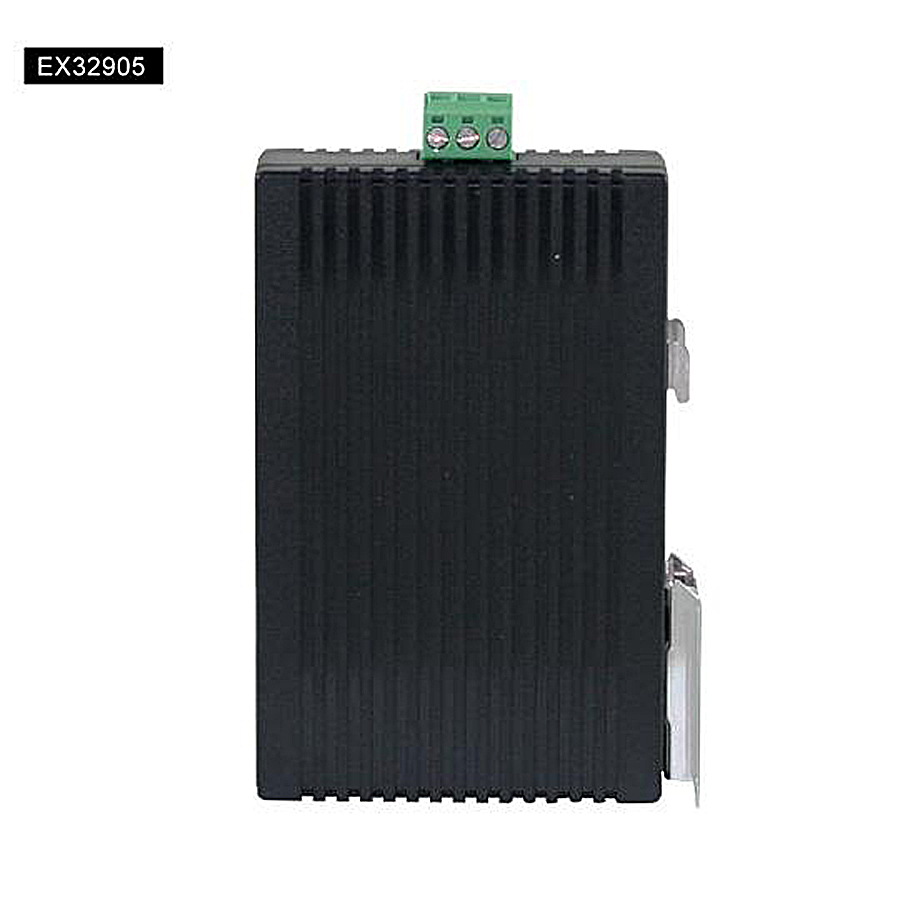

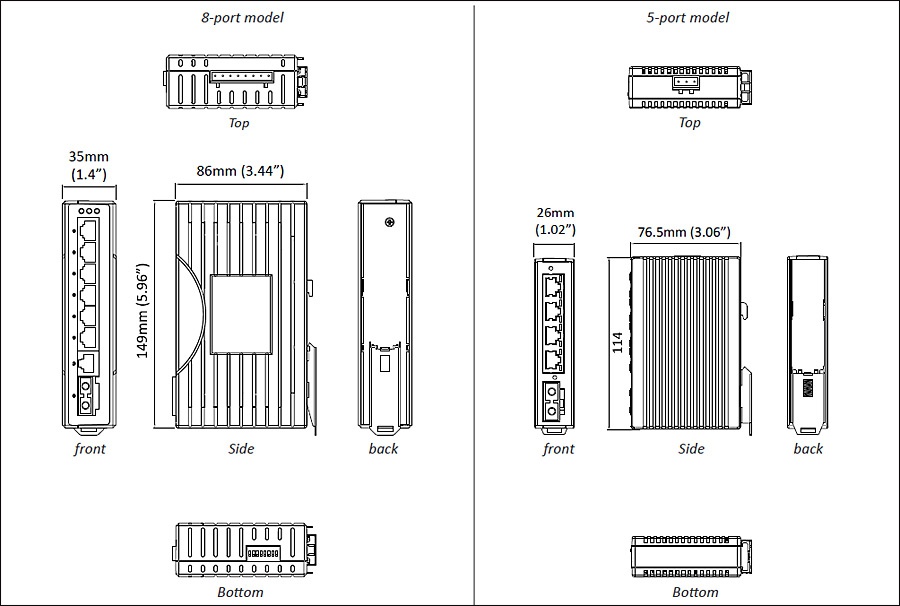

尺寸
  • • EX32905/EX32914:
      26 x 76.5 x 114mm (W x D x H)
      (1.02" x 3.06" x 4.33")
  • • EX32908/EX32917:
      35 x 86 x 149mm (W x D x H)
      (1.4" x 3.44" x 5.96")

重量
  • • EX32905/EX32914: 0.2Kg (0.44lb.)
  • • EX32908/EX32917: 0.3Kg (0.66lb.)

安裝方式
  • • DIN-Rail (Top hat type 35mm)

介面

乙太網路埠

  • • EX32905/EX32914:
      10/100/1000BASE-T: 5 or 4 ports
      1000BASE-X: 0 or 1 ports
  • • EX32908/EX32917:
      10/100/1000BASE-T: 8 or 7 ports
      1000BASE-X: 0 or 1 ports

LED 指示燈號
  • • EX32905/EX32914:
      Per Unit: Power (Green)
      Per Port: 10/100M(Green), 1000M (Yellow)
  • • EX32908/EX32917:
      Per Unit: Power 1 (Green), Power 2 (Green), Alarm (Red)
      Per Port: 10/100M(Green), 1000M (Yellow)

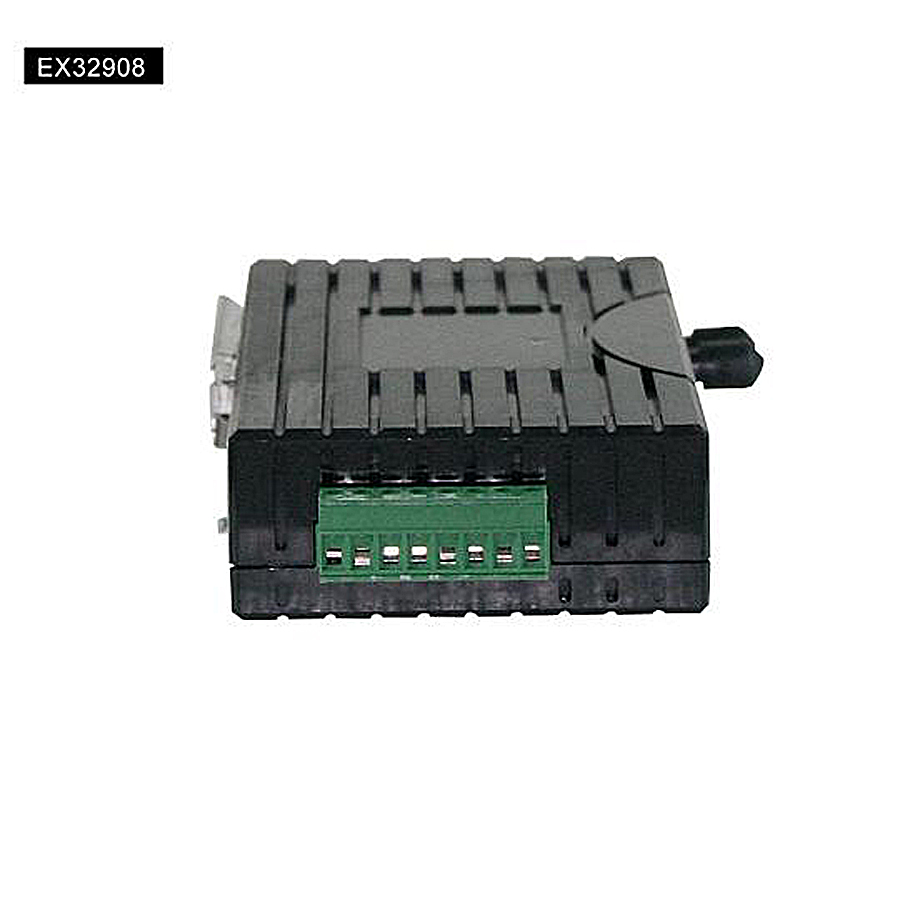

Alarm Contact (EX32908/EX32917 only)
  • • One relay output with current 1A@250VAC
  • • Supports normal close and normal open

DIP Switches (EX32908/EX32917 only)
  • • Enable/Disable Port fault alarm

環境

工作溫度

  • • -10 to 60°C (14 to 140°F)
      Tested @ -20 to 70°C (-4 to 158°F)

儲存溫度
  • • -40 to 85°C (-40 to 185°F)

工作濕度
  • • 5% to 95% (無凝結)

通過認證

ISO

  • • Manufactured in an ISO 9001 facility

Safety
  • UL 60950 (EX32905/EX32914 Series only)

EMI
  • FCC Part 15B, Class A
  • VCCI Class A
  • EN 61000-6-4
  • EN 55022 Class A

EMS
  • EN 61000-6-2
    • • EN 61000-4-2 (ESD Standards)
    • • EN 61000-4-3 (Radiated RFI Standards)
    • • EN 61000-4-4 (Burst Standards)
    • • EN 61000-4-5 (Surge Standards)
    • • EN 61000-4-6 (Induced RFI Standards)
    • • EN 61000-4-8 (Magnetic Field Standards)

Environmental Test Compliances
  • IEC 60068-2-6 Fc (Vibration)
  • IEC 60068-2-27 Ea (Shock)
  • FED STD 101C Method 5007.1 (Free fall w/package)

型號

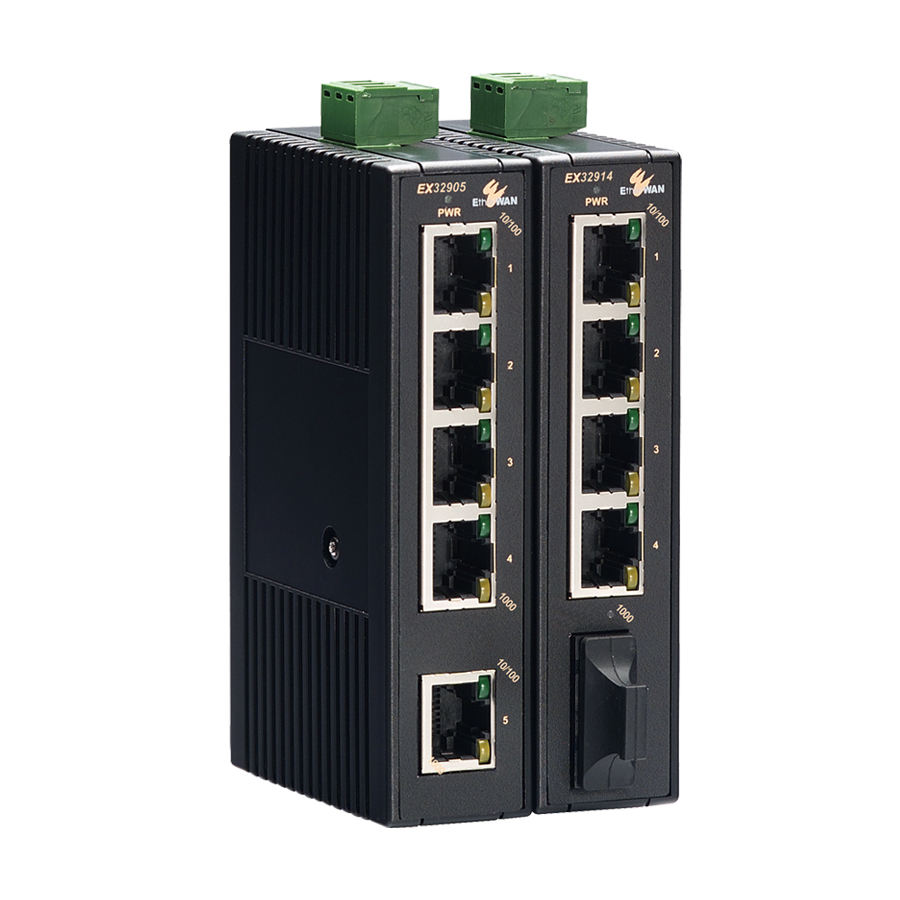

EX329055-port 10/100/1000BASE-T Gigabit Industrial Unmanaged Ethernet Switch
EX32914-X4-port 10/100/1000BASE-T +1-port 1000BASE-X Gigabit Industrial Unmanaged Ethernet Switch
EX329088-port 10/100/1000BASE-T Gigabit Industrial Unmanaged Ethernet Switch
EX32917-X7-port 10/100/1000BASE-T +1-port 1000BASE-X Gigabit Industrial Unmanaged Ethernet Switch

* DIN-Rail mounting kit included.


Optical Port Options (X)

31000BASE-SX (SC) - 550m
51000BASE-SX (ST) - 550m
A1000BASE-LX (SC) - 10km
R1000BASE-BX (SC) WDM-TX: 1310nm/RX: 1550nm-20Km
S1000BASE-BX (SC) WDM-TX: 1550nm/RX: 1310nm-20Km

Optional Accessories

HDR-30-2430W/1.5A DIN-Rail 24VDC Industrial Power Supply
HDR-60-2460W/2.5A DIN-Rail 24VDC Industrial Power Supply
EDR-75-2475W/3.2A DIN-Rail 24VDC Industrial Power Supply
EX41-145046-XPower Supply 45W 12VDC with Open Wire
(X) = 1: US, 2: EU, 3: UK, 4: AU, 5: JP, 6: SA
