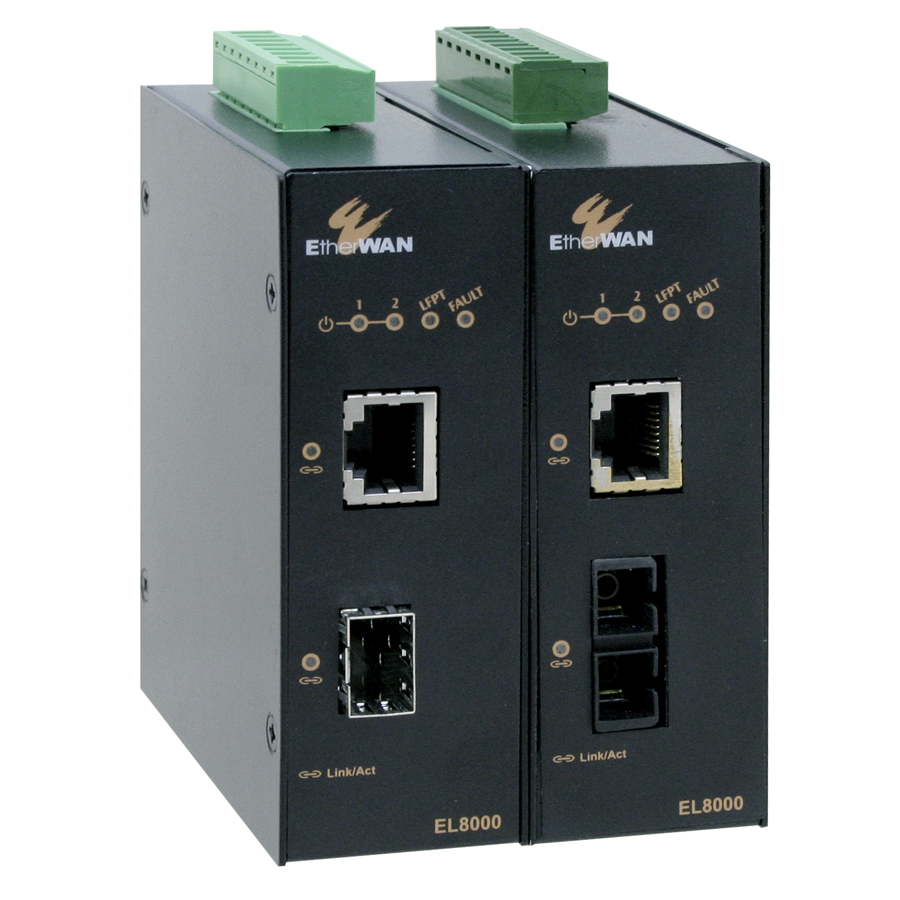

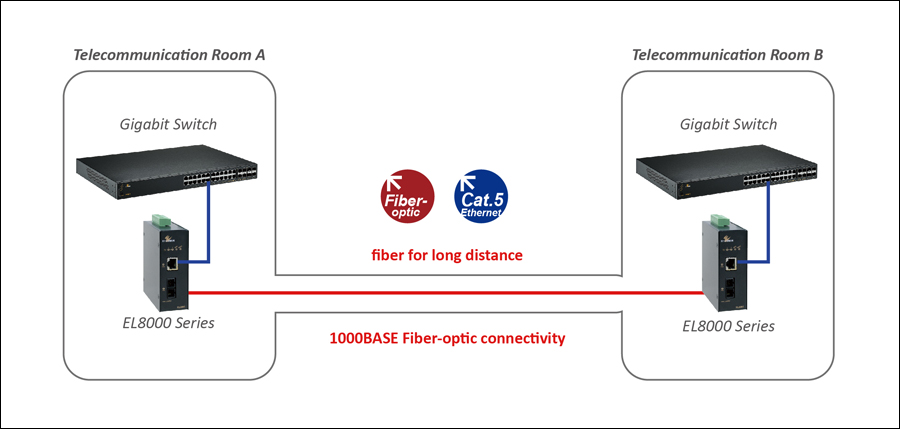

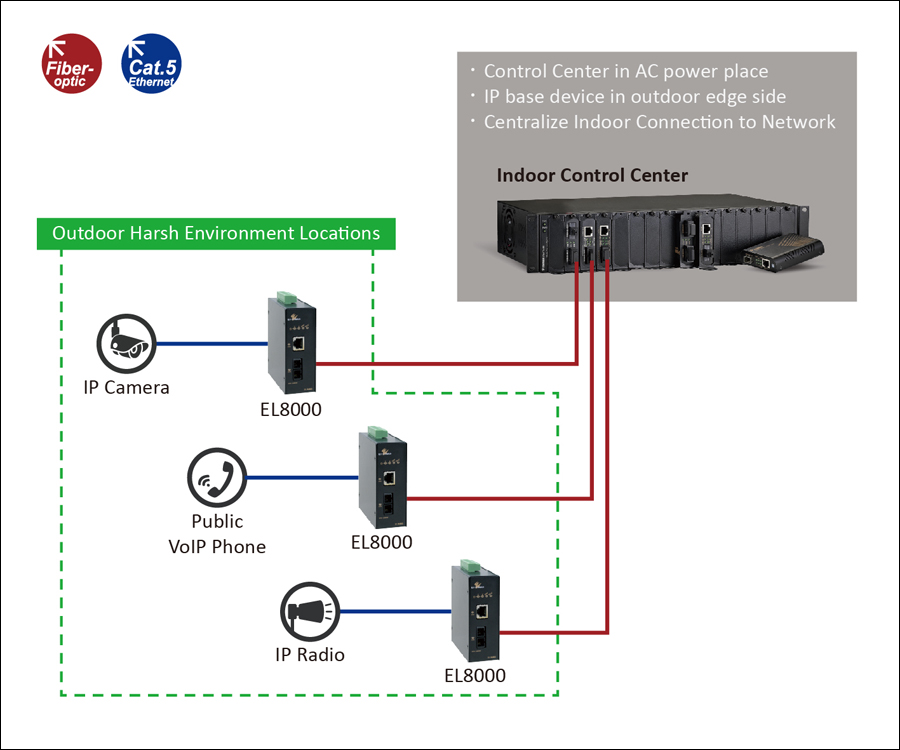

EL8000 系列

支援全Gigabit頻寬及Jumbo frames

• • 具備1個1000BASE-T乙太網路連接搭配1個1000BASE-SX/LX/BX/SFP光纖埠
  • 支援1000Mbps Full duplex和Full wire-speed forwarding rate
  • 支援Jumbo Frame最高達10K bytes

強固等級設計

• • 寬溫操作(-40到75°C)
  • 端子台支援備援電源輸入
  • 支援鋁軌式安裝

埠斷訊告警

• • 透過DIP Switch設定當斷電或斷電時對使用者發出告警

支援Link-Fault-Pass-Through (LFPT)

• • 針對光電轉換器連線狀態提供持續的監控
  • 當一端網路連線(Copper link)斷訊，光電轉換器會將此訊息發出，中斷對接設備的光纖連線及網路連線(Copper link)

Technology

• Standards
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3z 1000BASE-SX/1000BASE-LX
• Forward and Filtering Rate
  • 1,488,100pps for 1000Mbps
• Processing Type
  • Auto Negotiation
  • Auto MDI/MDIX

Power

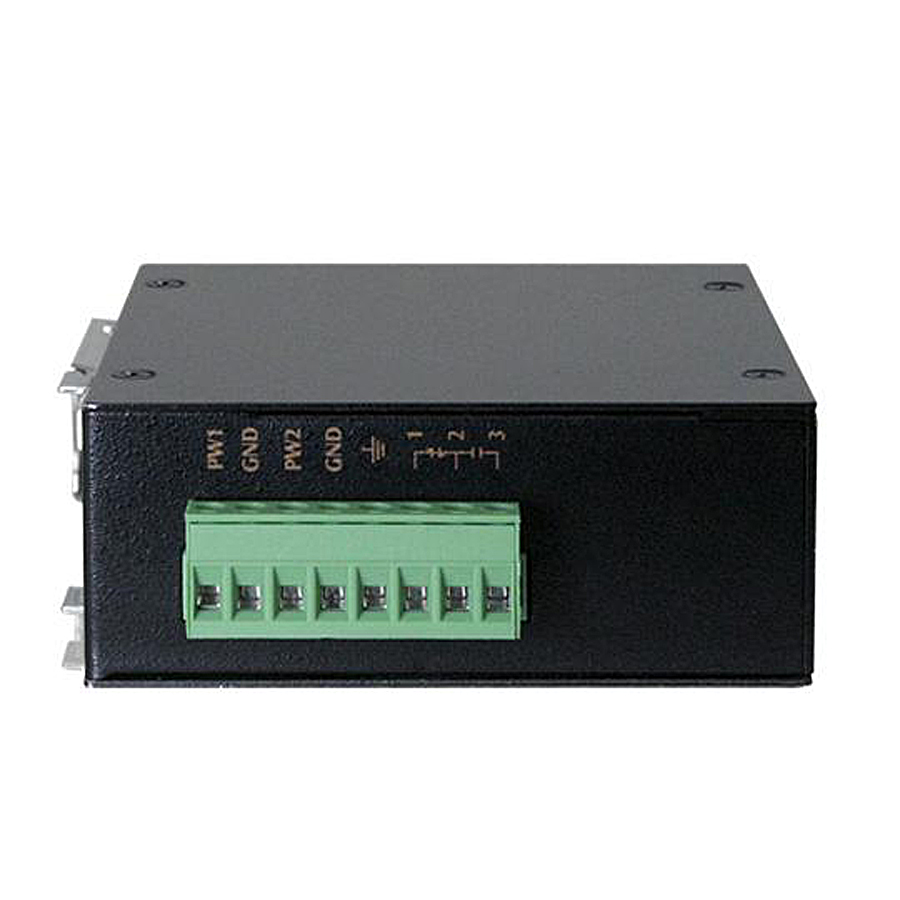

• Input
  • 12-48VDC
• Power Consumption
  • 0.912W Max
  • 76mA@12VDC
  • 38mA@24VDC
  • 19mA@48VDC
• Protection
  • Overload Current Protection
  • Reverse Polarity Protection

Mechanical

• Casing
  • Aluminum Case
  • IP30

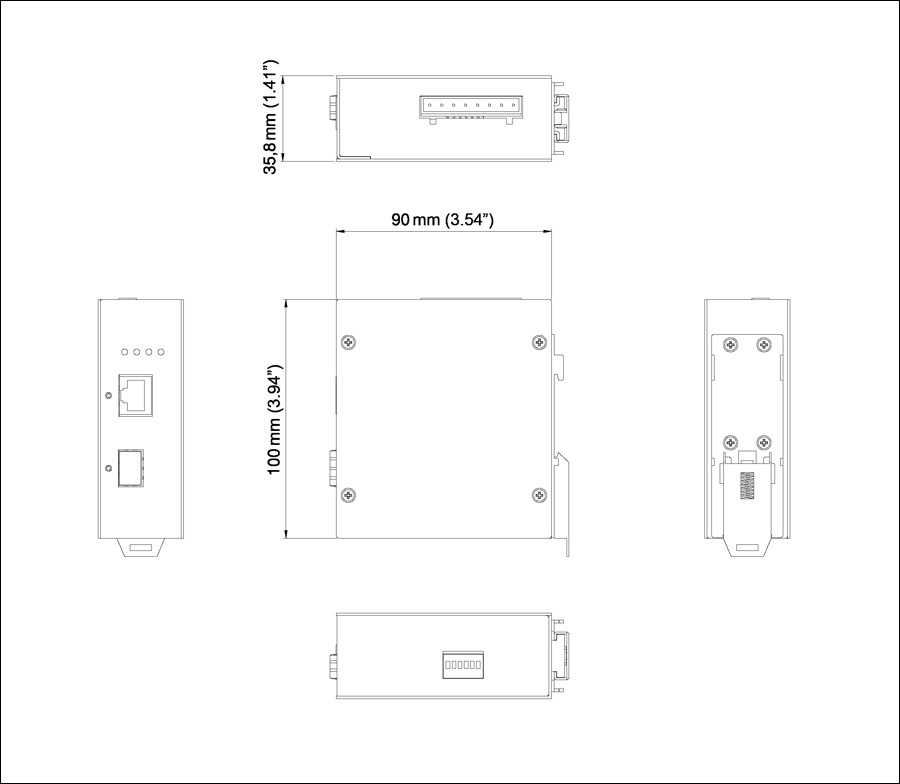

• Dimensions
  • 35.8 x 90 x 100mm (W x D x H)
  • (1.41" x 3.54" x 3.94")
• Weight
  • 0.23Kg (0.51lbs.)
• Installation
  • DIN-Rail

Interface

• Ethernet Ports
  • 1000BASE-T: 1 port
  • 1000BASE-SX/LX/SFP: 1 port
• LED Indicators
  • Per Unit: Power 1, Power 2, Fault, LFPT
  • Per Port: Link/Activity

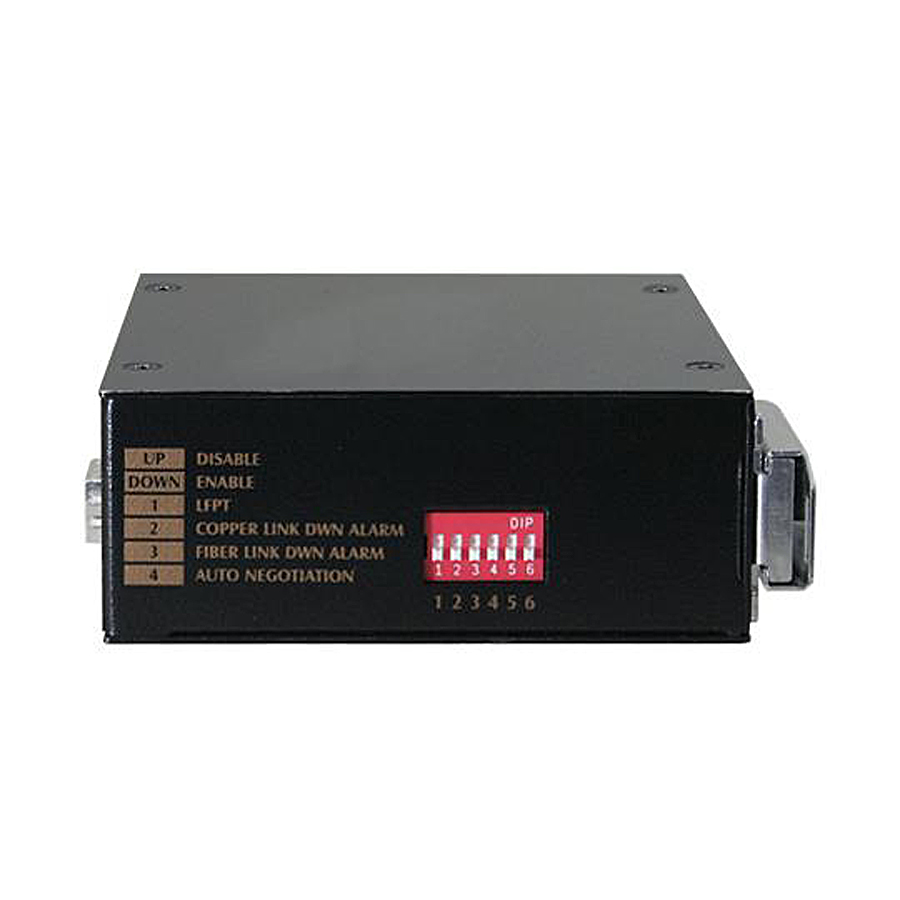

• DIP Switches
  • No.1: LFPT On/Off
  • No.2: Alarm for copper port On/Off
  • No.3: Alarm for fiber port On/Off
  • No.4: Auto-negotiation for fiber port On/Off
• Alarm Contact
  • Relay contact rating with current 0.6A/30VDC

Environment

• Operating Temperature
  • -40 to 75°C (-40 to 167°F)
• Storage Temperature
  • -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity
  • 5% to 95% (non-condensing)

Regulatory Approvals

• ISO
  • Manufactured in an ISO 9001 facility
• Safety
  • UL 61010
• Industrial Compliance
  • EN 50121-4
• EMI
  • FCC Part 15B Class A
  • VCCI Class A
  • EN 55032
  • EN 61000-3-2
  • EN 61000-3-3
  • EN 61000-6-3
• EMS
  • EN 61000-6-2
    • • EN 61000-4-2 (ESD Standards)
    • • EN 61000-4-3 (Radiated FRI Standards)
    • • EN 61000-4-4 (Burst Standards)
    • • EN 61000-4-5 (Surge Standards)
    • • EN 61000-4-6 (Induced RFI Standards)
    • • EN 61000-4-8 (Magnetic Field Standards)
• Environmental Test Compliances
  • IEC 60068-2-6 Fc (Vibration)
  • IEC 60068-2-27 Ea (Shock)
  • FED STD 101C Method 5007.1 (Free fall w/ package)
