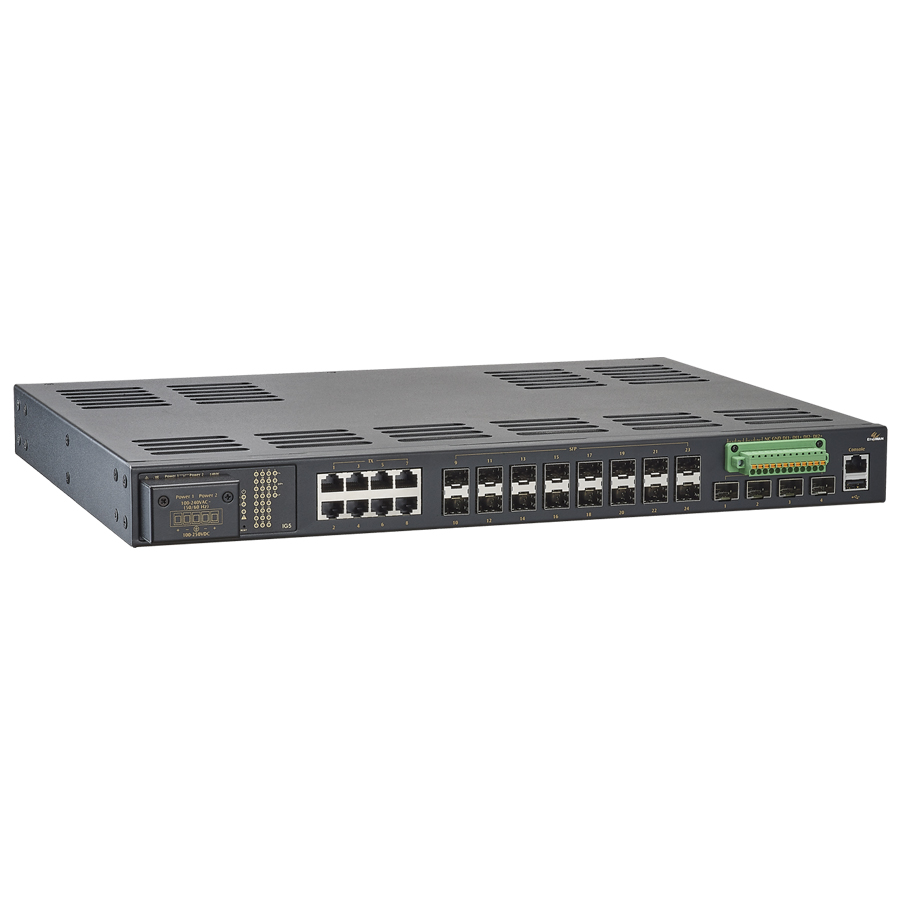

IG5 L Rack Series

High Bandwidth and Versatility

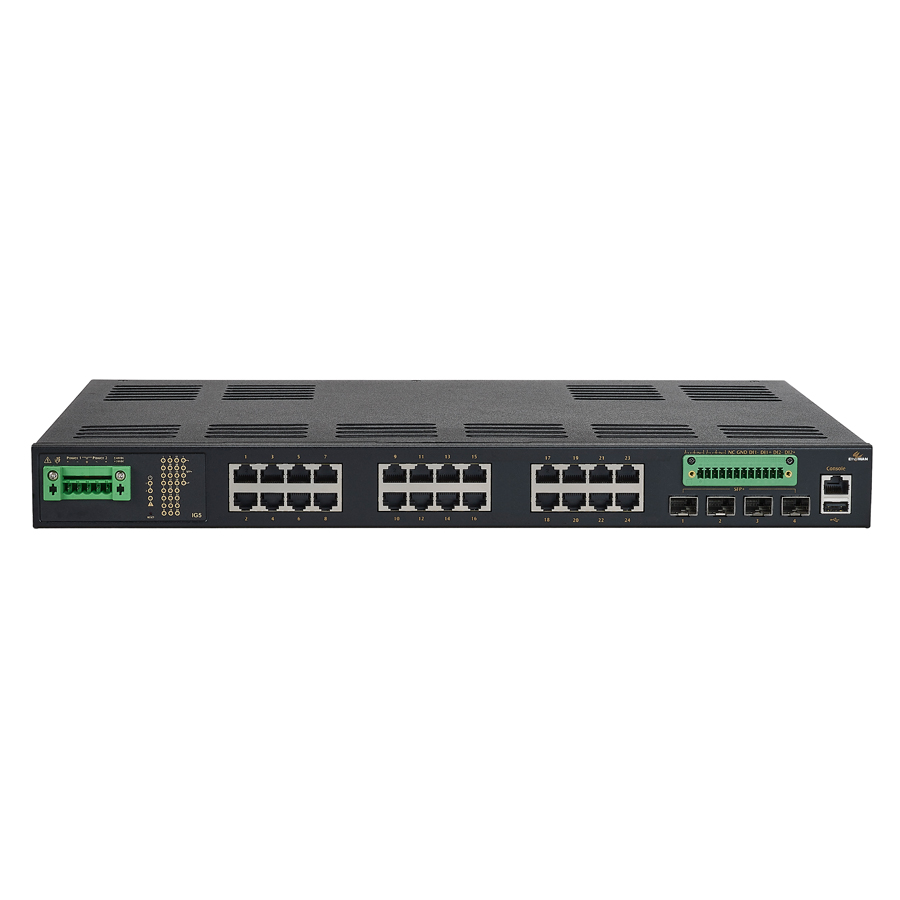

• • 24 full gigabit ports for high bandwidth connections
  • 4 x 1G/10G SFP+ uplink ports for fiber connections
  • 128 Gbps Full duplex switching capacity
  • Dual rate design at all ports, up to 10G
  • Wide range of optical and electrical interface options

Time Stamped Supported

• • IEEE 1588v2
    - Available in all ports
    - Hardware-based time stamping
    - Operation as transparent clock

Layer 3 Functionality

• • Static routing, RIP v1/v2, and OSPF
  • Redundancy with VRRPv2
  • Reduces amount of broadcast traffic

Flexible Rack Cabinet Installation

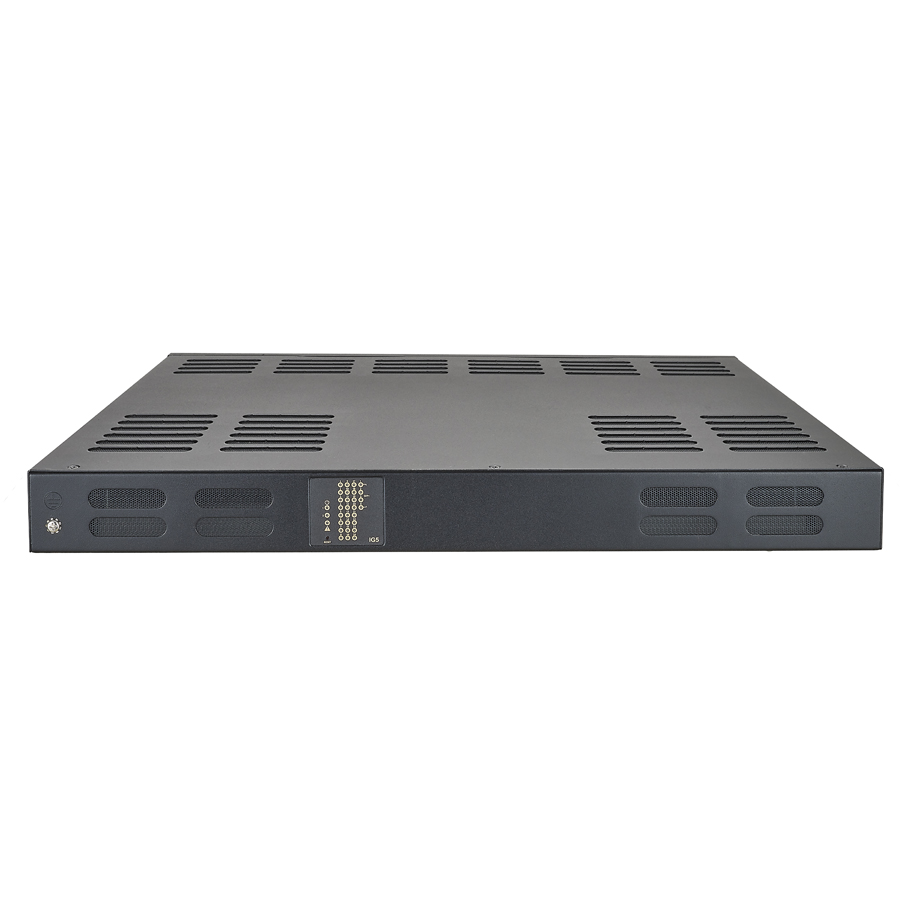

• • Dual LED panel design, support rear and front display
  • Concise communication status display
  • Considerable ease of cabling management

Designed for Industrial Environments

• • Operation temperature range from -10 to 60°C (14 to 140°F)
  • Thermal shock and electrical noise resistance
  • High electrostatic / surge protection capability

Support

• • Complimentary technical support
  • Free firmware upgrades and notifications
  • Limited lifetime warranty

Interface

• • CLI, Telnet, Web GUI

Management

• • Firmware Upgrade
  • Configuration Backup
  • DHCP Server/Client
  • RMON (Remote Monitoring)
  • Port Mirroring
  • NTP (Network Time Protocol) Synchronization
  • LLDP (Link Layer Discovery Protocol)
  • IPv4/IPv6
  • SNMP v1/v2c/v3

Layer 2 Features

• Auto-negotiation for Port Speed and Duplex
  • Flow Control
  • IEEE 802.3x full duplex mode
  • Back-pressure half duplex mode
• Redundant Protocols
  • IEEE 802.1D STP
  • IEEE 802.1w RSTP
  • IEEE 802.1s MSTP
  • EtherWAN's Alpha-Ring network fault recovery
• VLANs
  • IEEE 802.1Q Tag VLANs
  • GVRP
  • GMRP
• Link Aggregation
  • Static Trunk (4 groups)
  • IEEE 802.3ad LACP
• IGMP Snooping v1/v2/v3

Security

• • MAC Address Filtering
  • Enable/Disable Port
  • Storm Control
  • System Logging
  • IEEE 802.1x LAN Access Control
  • Remote Authentication through RADIUS and TACACS+
  • Complex Password Support
  • Multi-user Login and Privileged Access Management
  • SSH for CLI and Telnet Security
  • SSL and HTTPS for Web Security
  • ACL (Access Control List, up to 4096 Entries)

Quality of Service (QoS)

• • Priority Queues: 8 Queues Per Port
  • Traffic Classification Based on IEEE 802.1p CoS (Cost of Service), DSCP (Differentiated Services Code Point), WRR (Weighted Round Robin), and Strict Mode
  • Rate Limiting (Ingress/Egress)

Layer 3 Features

• IP Packet Routing
  • Maximum number of routes in hardware: 64 entries
  • Static Routing
  • RIP v1/v2
  • OSPF v2
• Routing Redundancy
  • VRRPv2

Software Properties and Performance

• Switching Fabric
  • 128Gbps
• Forwarding Rate
  • 95.23Mpps
• Max VLANs
  • 256 (4096 VID)
• Jumbo Frame Size
  • 9KB
• MAC Table Size
  • 16K
• Packet Buffer Memory
  • 12M bits

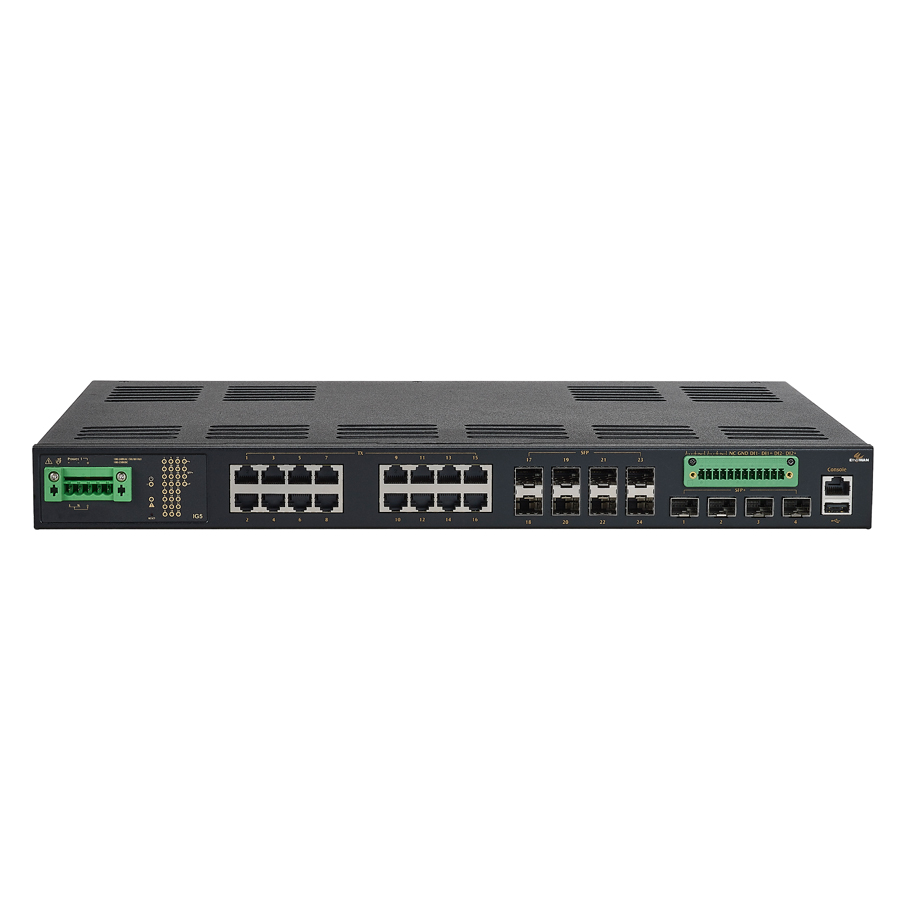

Interface

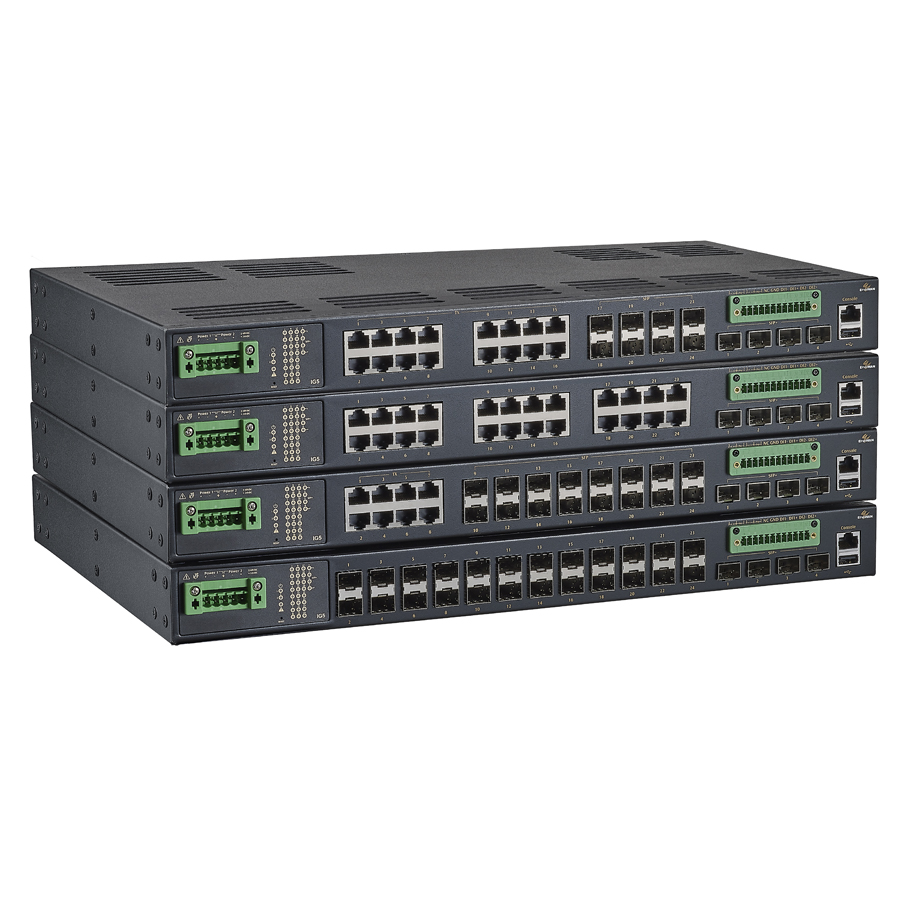

• Ethernet
  • 10/100/1000BASE-T(X): 0, 8, 16 or 24 ports
  • 100/1000BASE SFP: 0, 8, 16 or 24 ports
  • 1G/10G SFP+: 4 ports
• Console
  • 1 x RJ45
• Digital Input
  • 2 x Digital Input
  • Wet Contact: 0-3V for State 0; 13-30V for State 1; Max input current: 8mA
  • Dry Contact: Logic Level 1–Close to GND; Logic Level 0-Open
• Alarm Contact
  • 2 x Relay output, current capacity
    0.6A/30VDC
• LED Indicators
  • Per Unit:
    Power 1 (Single Power models) (Green)
    Power 2 (Dual Power models) (Green)
  • Per Port: Link/Activity (Green)
  • Per Port: Alarm (Red)

Physical

• Casing Material
  • Metal
• IP Rating
  • IP40

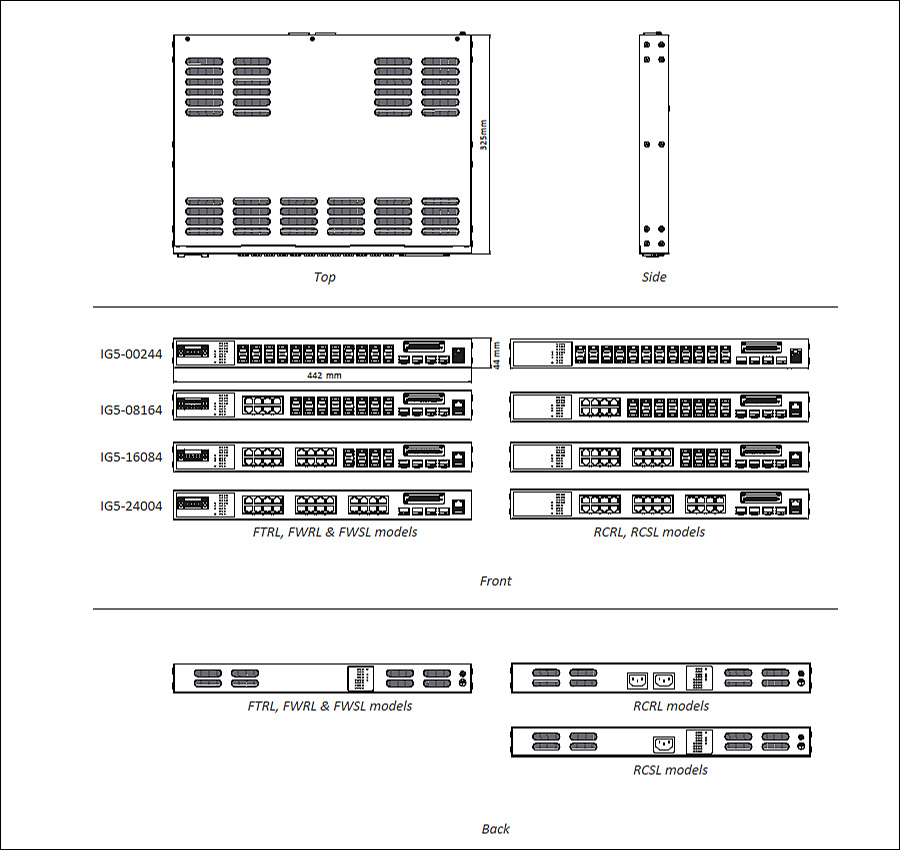

• Dimensions
  • 442 x 325 x 44mm (W x D x H)
    17.4” x 12.8” x 1.73”
• Weight
  • 4.6kg (10.14lbs) / 4.0kg (8.82lbs)
• Installation Type
  • Rack mounting

Environmental

• Operating Temp.
  • -10 to 60°C (14 to 140°F)
• Storage Temp.
  • -45 to 85°C (-49 to 185°F)
• Relative Humidity
  • 5% to 95% (non-condensing)
• MTBF
  • 644,723 hours

Technology

• Standards
  • IEEE 802.3 10BASE-T
  • IEEE 802.3u 100BASE-TX/100BASE-FX
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3ae 10Gigabit Ethernet
  • IEEE 802.3ad link aggregation control
  • IEEE 802.3z 1000BASE-SX/1000BASE-LX
  • IEEE 802.3x full duplex and flow control
  • IEEE 802.1D STP
  • IEEE 802.1p QoS
  • IEEE 802.1Q Tag VLANs
  • IEEE 802.1s MSTP
  • IEEE 802.1w RSTP
  • IEEE 802.1x PNAC
  • IEEE 802.1ab LLDP
• Forward/Filtering Rate
  • 14,880pps for 10Mbps
  • 148,810pps for 100Mbps
  • 1,488,100pps for 1000Mbps
  • 14,881,000pps for 10Gbps
• Processing Type
  • Store-and-forward
  • Auto-negotiation
  • Half-duplex back-pressure and full-duplex flow control
  • Auto MDI/MDIX
• System Memory
  • 2Gb DDR3 SDRAM
• Flash Storage
  • 1Gb

Regulatory

• ISO
  • Manufactured in ISO-9001 facility
• EMI
  • FCC Part 15B Class A
  • VCCI Class A
  • EN 61000-6-4
• EMS
  • EN 61000-6-2
  • EN 61000-4-2 (ESD)
  • EN 61000-4-3 (Radiated RFI)
  • EN 61000-4-4 (Burst)
  • EN 61000-4-5 (Surge)
  • EN 61000-4-6 (Induced RFI)
  • EN 61000-4-8 (Magnetic field)
• Safety
  • UL 62368-1
• Vibration
  • IEC 60068-2-6
• Shock
  • IEC 60068-2-27
• Free Fall
  • IEC 60068-2-31
• Industrial
  • EN 50121-4
• Power Substation
  • IEC 61850-3/IEEE 1613

Power

• Input
  Dual Power
  • FTRL: (Terminal Block)
              24VDC to 48VDC (Nominal)
              18 - 60VDC (Operational)
  • FWRL: (Terminal Block)
              100 - 250VDC or 100 - 240VAC (Nominal)
              88 - 300VDC or 88 - 264VAC (Operational)
  • RCRL: (AC Inlet)
              100 - 240VAC

  Single Power
  • FWSL: (Terminal Block)
             100 - 250VDC or 100 - 240VAC (Nominal)
             88 - 300VDC or 88 - 264VAC (Operational)
  • RCSL: (AC Inlet)
              100 - 240VAC
• Power Consumption
  • 50W max.
• Protection
  • Reverse Polarity Protection

Warranty

• Length
  • Limited Lifetime
• Details
  • www.etherwan.com/support/warranty-policy

What's Included

• Device
  • Ethernet Switch
• Cables
  • 1 Console Cable
• Installation
  • Mounting brackets, screws
• Documentation
  • Quick Install Guide
• Power
  • 1 AC Power Cord (RCSL models)
  • 2 AC Power Cord (RCRL models)
