EX78900 Family- Powerful PoE Switches with Lifetime Warranty
Up to 90W power, 10G speed, and built-in DI/DO design – Value-added Solution
10G uplinks for network extension
Scalability in Dual-speed 1G/10G SFP ports
High-power IEEE802.3bt- 60W & 90W PoE
DI/DO for Detect and Alert Function
Complete PoE Solution for Power-intensive Applications
Your power-intensive PDs for bus stations, digital signage, PTZ cameras, and LED lighting applications can now be connected all at the same time without thinking about power constraints. EtherWAN provides a wide range of industrial PoE switches (PoE/PoE+) from cost-effective unmanaged, to Layer 2 and Layer 3 managed switches with advanced features.
In compliance with IEEE 802.3af/at/bt, EtherWAN's din-rail and rackmount PoE switches with up to 90W output per port, are versatile for connecting with PoE/PoE+ Powered Devices (PD) with different bandwidth.
Why You Should Not Miss EX78900E, EX78900H, and EX78900X series?
EtherWAN's EX78900E, EX78900H, and EX78900X series are hardened DIN-rail mounted managed PoE Ethernet switches, featuring Layer 2 and Layer 3 management functionalities, supports up to 12 gigabit PoE ports, providing a maximum of 60W or 90W PoE power with power budget up to 360W. It adheres to the IEEE 802.3.bt protocol and it's backward compatible to IEEE 802.3af and IEEE 802.3at standards, allowing for versatile PoE power delivery ranging from 15W, 30W, 60W to 90W per Ethernet port.
With built-in DIs (Digital Input) and Relay Output, the Detect and Alert function allows for remote notification and monitoring without adding an extra I/O controller, which reduces costs and simplifies hardware setups.
Moreover, below features make these models ideal for legacy infrastructure upgrades and seamless expansion with existing network.
Seamless Integration with High Bandwidth and Versatility
Dual-rate with up to 10G Uplink
Dual-speed uplink ports (100M/1G or 1G/10G) offer versatile connectivity, enabling devices to run at different speeds over existing connections. It seamlessly integrates legacy infrastructure with new network with higher bandwidth.
Redundancy (RSTP & Alpha-Ring)
Redundancy is important for critical workloads where even a few seconds of downtime can have significant consequences. Both RSTP and EtherWAN's Alpha-Ring provide fast network recovery in minimizing packet loss caused by link failure.

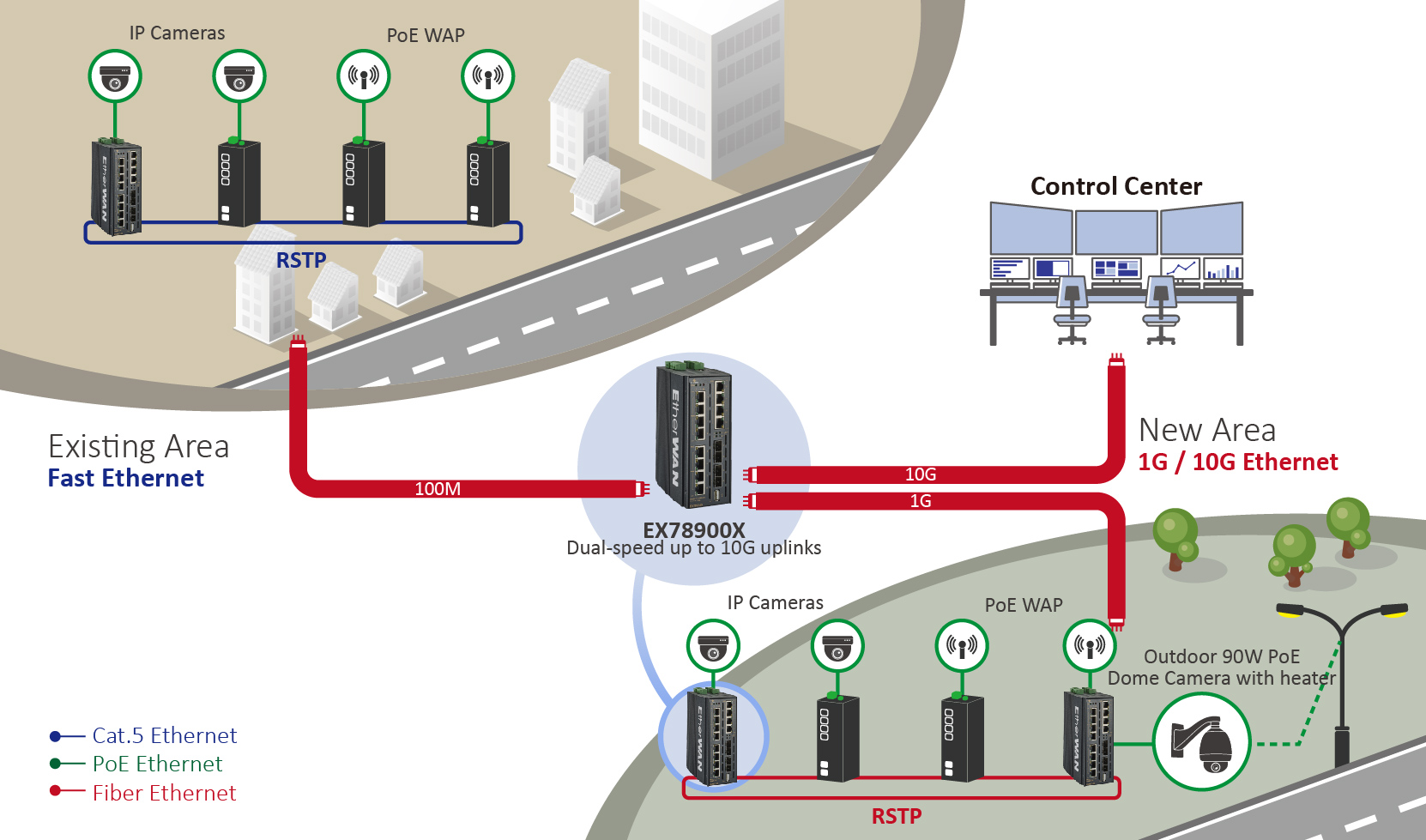

Hassle-free Network Upgrade by EX78900E, EX78900H, and EX78900X series
It's a significant hurdle to upgrade networks, particularly when it comes to replacing cables. It can be daunting for users in challenging environments.
To streamline the process, choose EtherWAN's EX78900E, EX78900H, or EX78900X series. It offers flexible Dual-speed transmission speed (100M/1G or 1G/10G) with a distance range of 100m to 2km, based on the device requirements. Simply swap your traditional cables with SFP modules and integrate them to the existing connections for a hassle-free network upgrade.

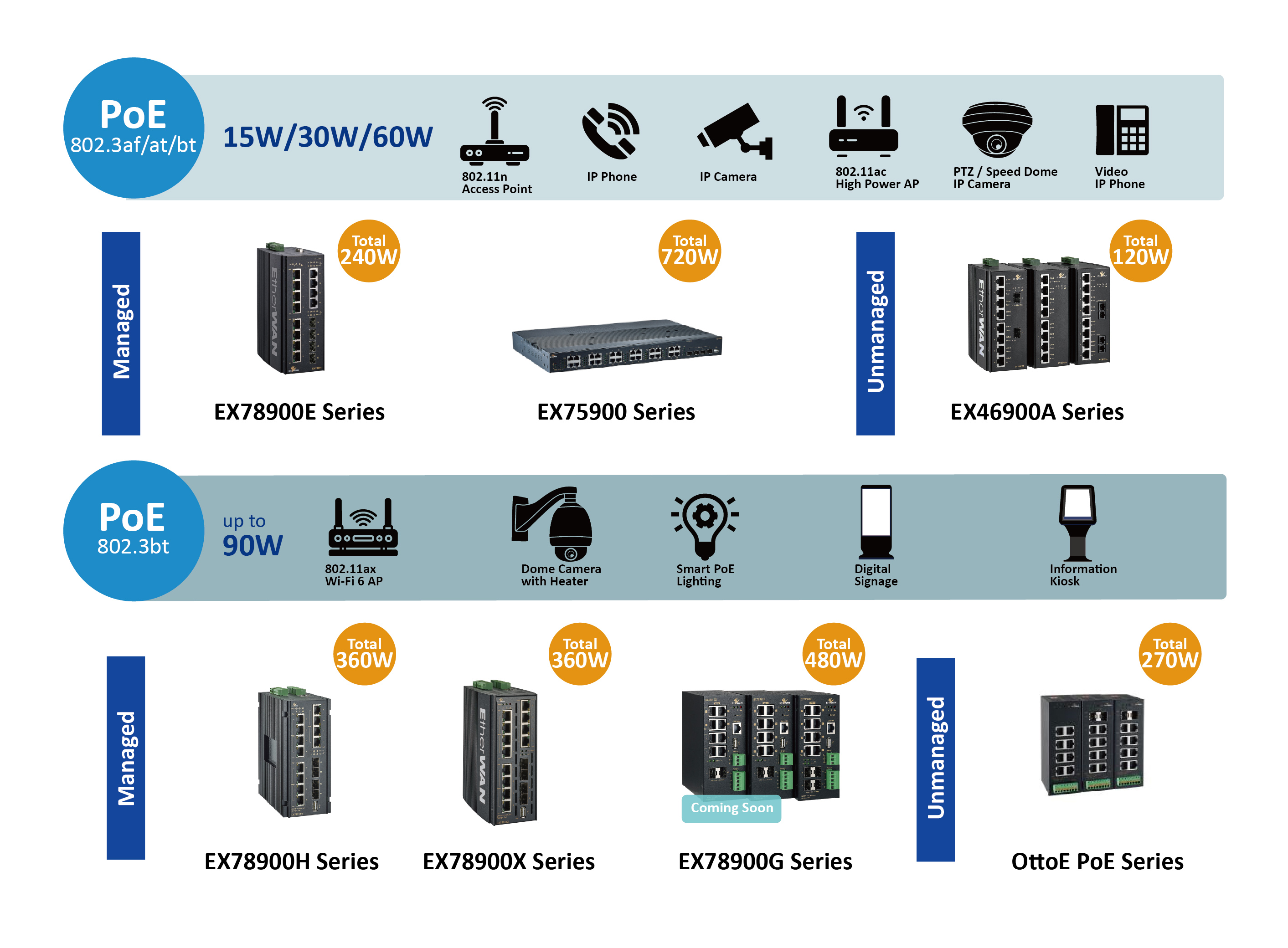

Diverse Specification for Various Industries
Looking for a right PoE switch to fit multiple projects? EX78900E, EX78900H, and EX78900X series with diverse specifications and advanced PoE functions are all you need to surpass the competition in various industries.

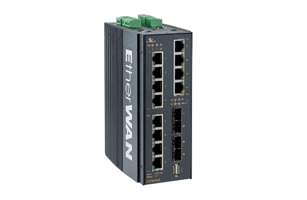

EX78900E Series
| 8-12 port GbE |
| up to 12 port supports PoE |
| 60W per port |
| up to 4 port 100/1G SFP |
| 240W |
| DI x 2 & DO x 2 |

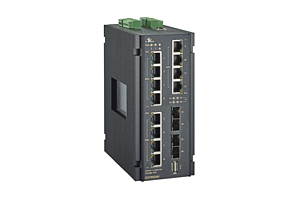

EX78900H Series
| 8-12 port GbE |
| up to 12 port supports PoE |
| 90W per port |
| up to 4 port 100/1G SFP |
| 360W |
| DI x 2 & DO x 2 |

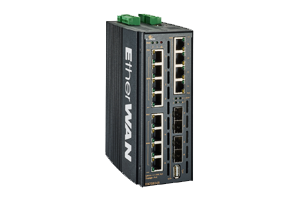

EX78900X Series
| 12 port GbE |
| 12 port supports PoE |
| 90W per port |
| 4 port 1/10G SFP+ |
| 360W |
| DI x 2 & DO x 2 |
| Contact Sales |
Note: The maximum power budget depends on the maximum operating temperature.
More Managed / Unmanaged Switches with Lifetime Warranty to Cater Your Need
Managed Ethernet Switch
Offer advanced Ethernet management features, plus the redundancy and security elements required for essential applications.
Unmanaged Ethernet Switch
Simple, easy to use, and economical choice for applications where there are fewer devices, no VLANs, and basic connectivity is the main objective
Why Choose EtherWAN
EtherWAN, founded in 1996, is a leader in the manufacture of industrial-grade Ethernet communication equipment. Designs produced in-house, and manufacturing based in Taiwan, are guaranteed to maximum quality and service.
ADVANCING FOR 20 YEARS
With more than two decades of accrued expertise in hardened products, EtherWAN has developed the tools and polices needed to ensure quality.
ROBUST QUALITY
All components are of industrial grade, undergoing detailed and rigorous processes for selection and verification. Proven quality and reliability are endorsed by 3rd party reports and real projects.
HIGH SCALABILITY
Purpose-built and future proof product design ensure the scalability for extensive application.
GREEN COMMITMENT
From the initial product conception, to its end of life, our Green Product Management System is applied to all parts and processes.
LIFETIME WARRANTY
Our firm commitment to product quality and reliability is unconditional, and backed by a robust warranty policy.
TECHNICAL SUPPORT
Our network consultant service team can help you create a network from scratch or enhance/ update existing network for improved flexibility, maximized utilization, and a more cost-effective configuration.
